2-5
ASUS TS700-E8-PS4, TS700-E8-RS8

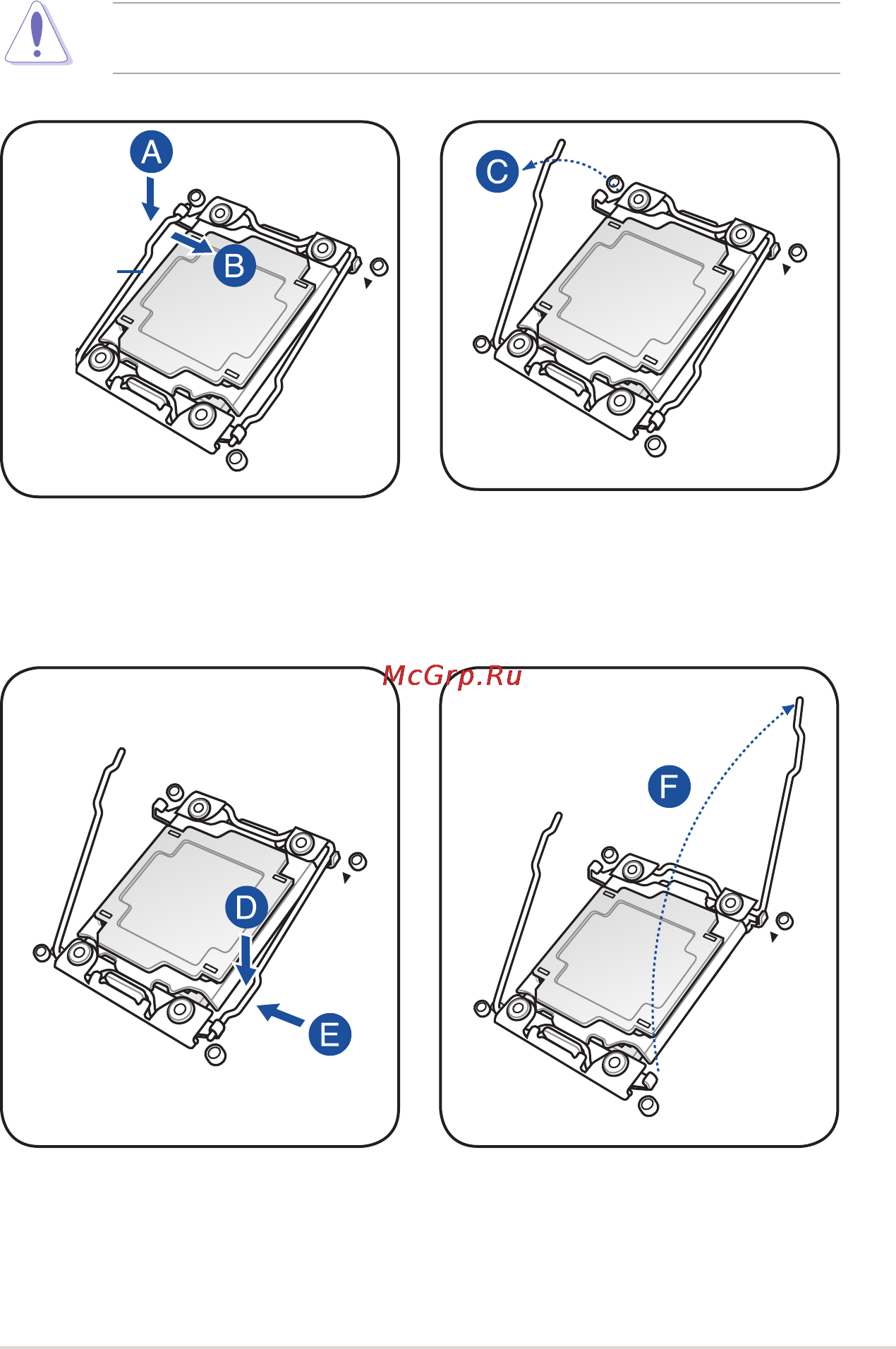

2. Presstheleftloadleverdownwithyourthumb(A),moveittotherightuntilitis
releasedfromtheretentiontab(B)thengentlylifttheloadlever(C).
To prevent damage to the socket pins, do not remove the PnP cap unless you are installing
a CPU.
3. Presstherightloadleverwithyourthumb(D),moveittotheleft(E)untilitisreleased
from thengentlylifttheloadlever(F).
Load lever
