ASUS TS700-E8-PS4, TS700-E8-RS8
4-13

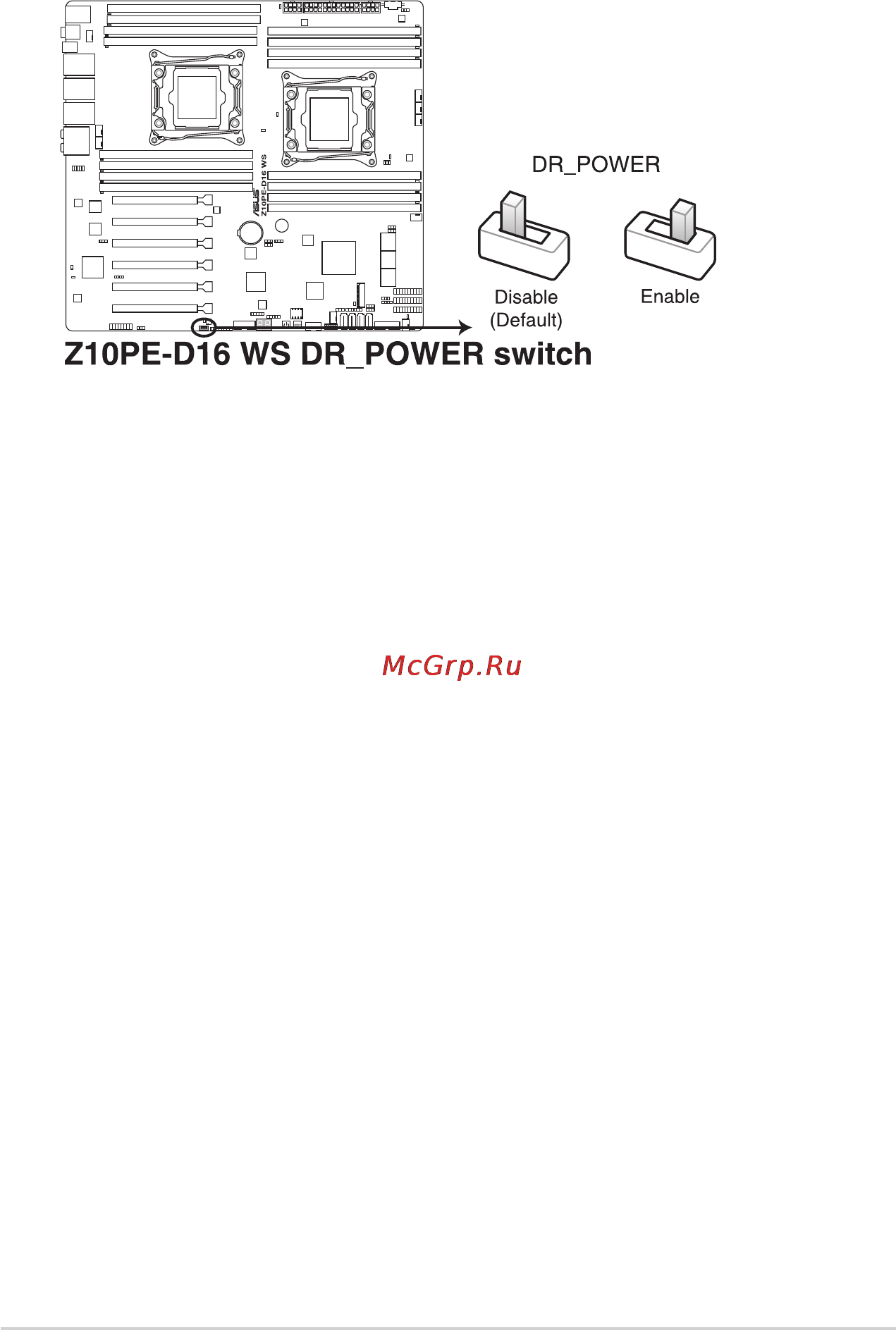

3. Dr. Power switch (DR_POWER)
Toggle this switch to enable or disable the Dr. Power feature of the system.
