4-6
Chapter 4: Software Support
Chapter 4

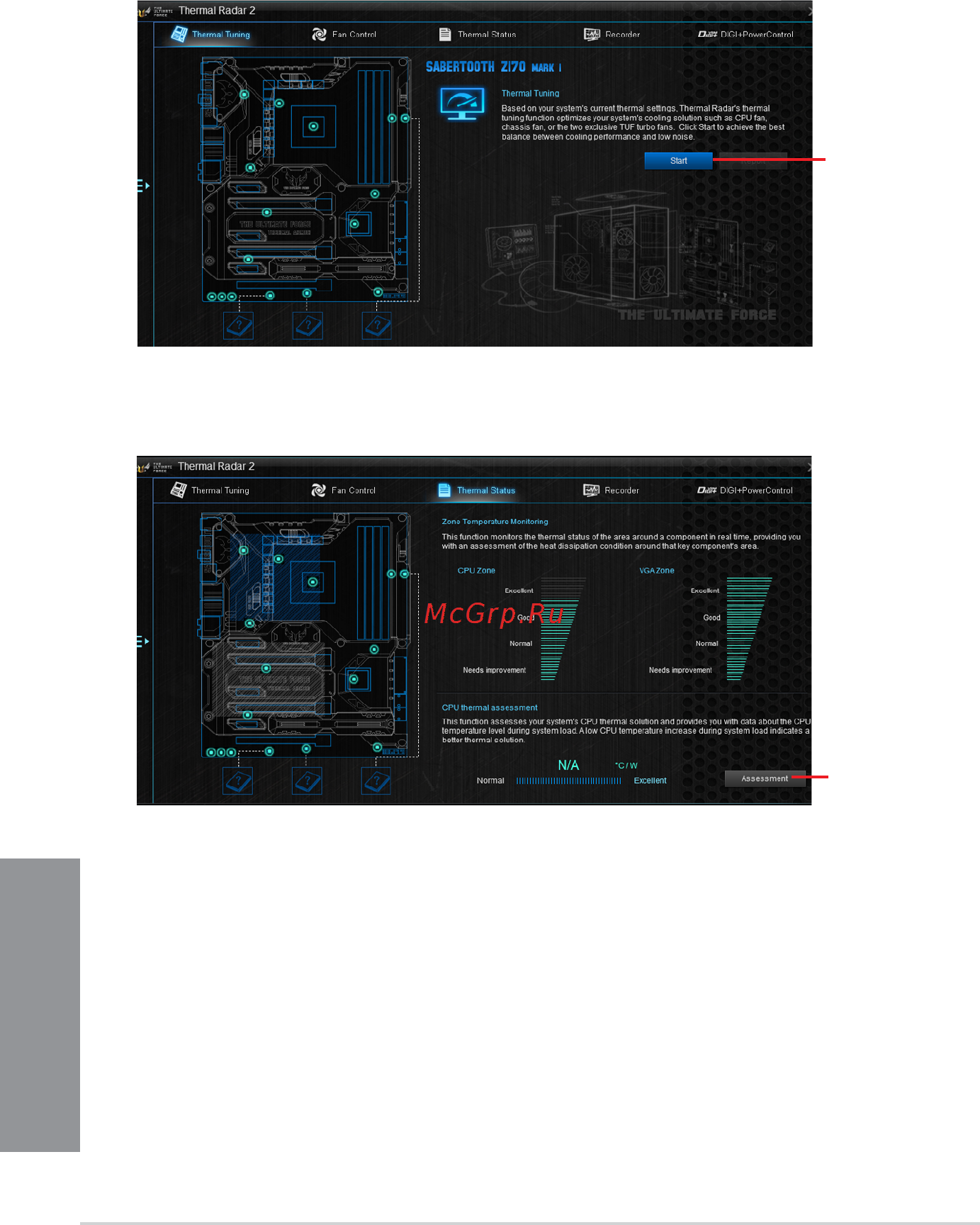

Thermal Radar 2
ThermalRadar2letsyoucontrolfans,monitoryourgraphicscardtemperatureandotherkey
componentsinrealtime,orauto-tuneyourthermalsettings.
Thermal Status
Displaysthecurrentstatusofthethermalconditionofyoursystem.
Click or tap to run
the assessment
report of your
current thermal
settings.
Thermal Tuning
Thisfunctionoptimizesyoursystem’scoolingsolutionbasedonyoursystem’scurrent
thermalsettings.ItallowsyoutocongureyourCPU,chassis,andtheexclusiveTUFTurbo
fantoachievethebestbalancebetweencoolingperformanceandlownoise.
Click or tap to
automatically start
the Thermal Tuning
process
