Asus tuf sabertooth z170 mark 1 [38/140] Chapter 1

1-22

Chapter 1: Product Introduction

Chapter 1

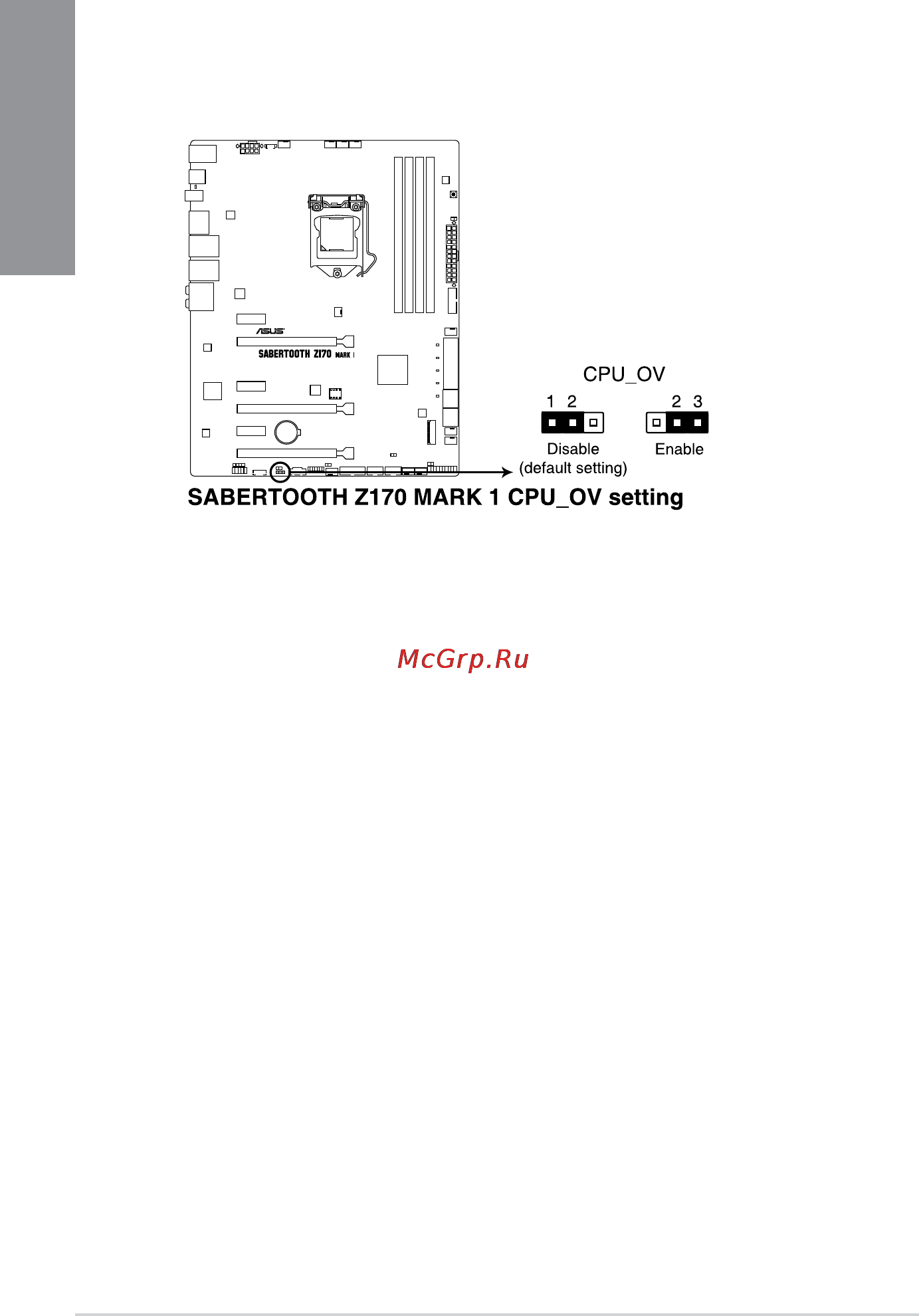

2. CPU Over Voltage jumper (3-pin CPU_OV)

The CPU Over Voltage jumper allows you to set a higher CPU voltage for a exible

overclocking system, depending on the type of the installed CPU. To gain more CPU

voltage setting, insert the jumper to pins 2-3. To go back to its default CPU voltage

setting, insert the jumper to pins 1-2.
