Asus tuf sabertooth z170 mark 1 [52/140] Chapter 1

1-36

Chapter 1: Product Introduction

Chapter 1

14. ASMedia

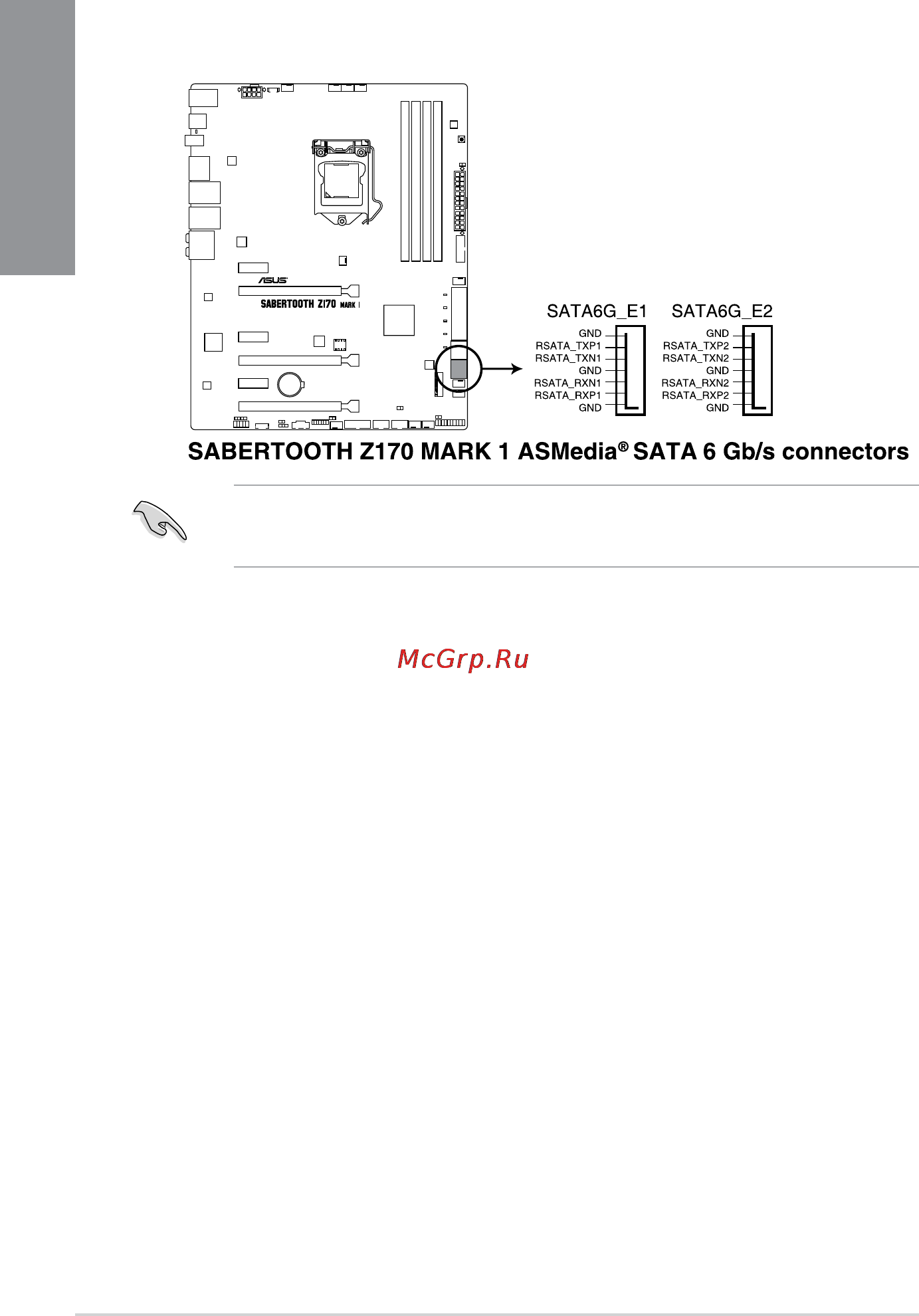

Serial ATA 6 Gb/s connectors (7-pin SATA6G_E12)

These connectors connect to Serial ATA 6 Gb/s hard disk drives via Serial ATA 6 Gb/s

signal cables.

• ASMedia storage controller can only support AHCI mode.

• These SATA ports are for data drives only.
