Asus tuf sabertooth z170 mark 1 [46/140] Chapter 1

1-30

Chapter 1: Product Introduction

Chapter 1

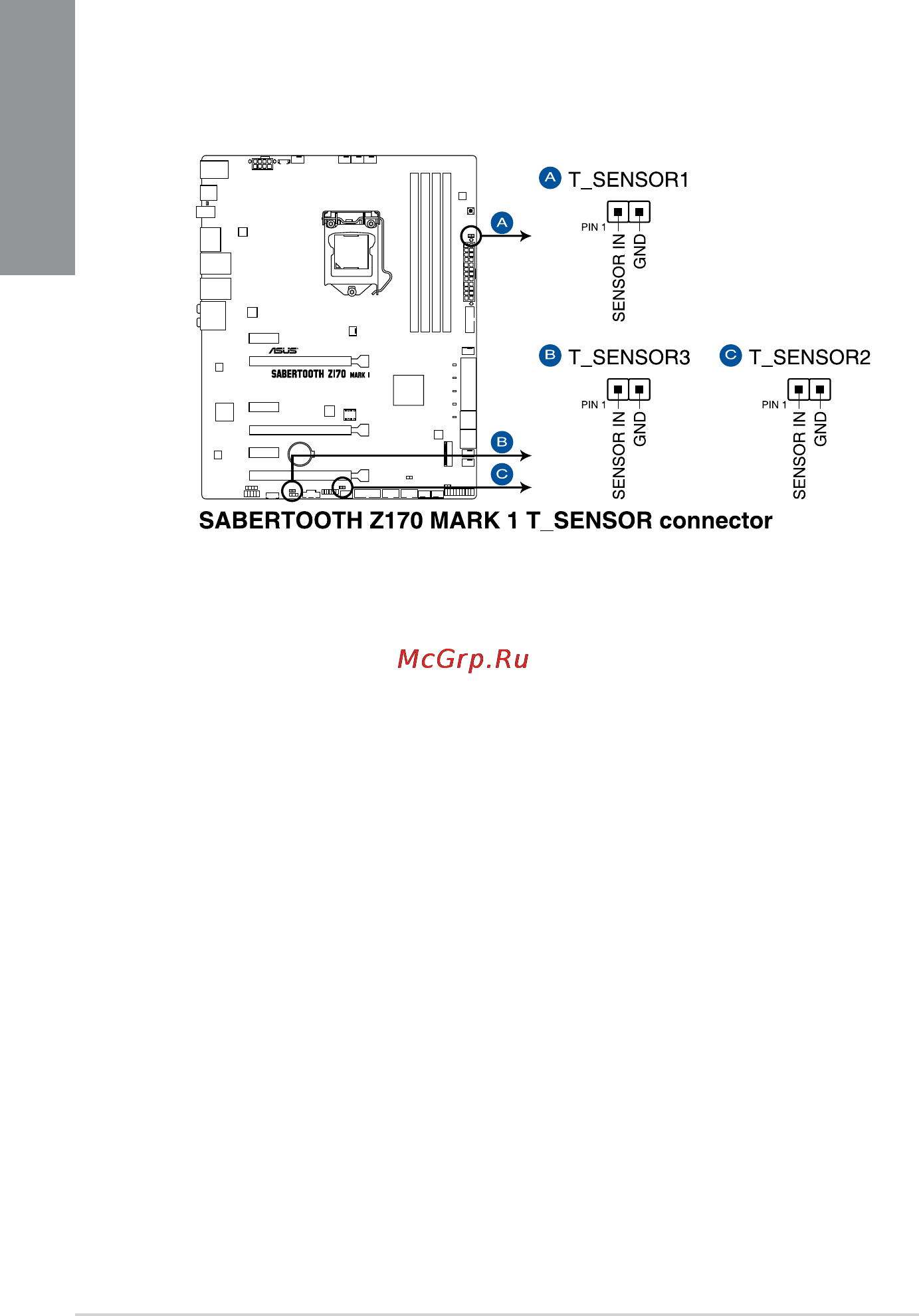

7. Thermal Sensor connectors (2-pin T_SENSOR1; T_SENSOR2; T_SENSOR3)

These connectors are for the thermistor cables that monitor the temperature of the

devices and the critical components inside the motherboard. Connect the thermistor

cable and place the sensor on the device or the motherboard’s component to detect its

temperature.
