Asus tuf sabertooth z170 mark 1 [93/140] Chapter 3

SABERTOOTH Z170 MARK 1

3-23

Chapter 3

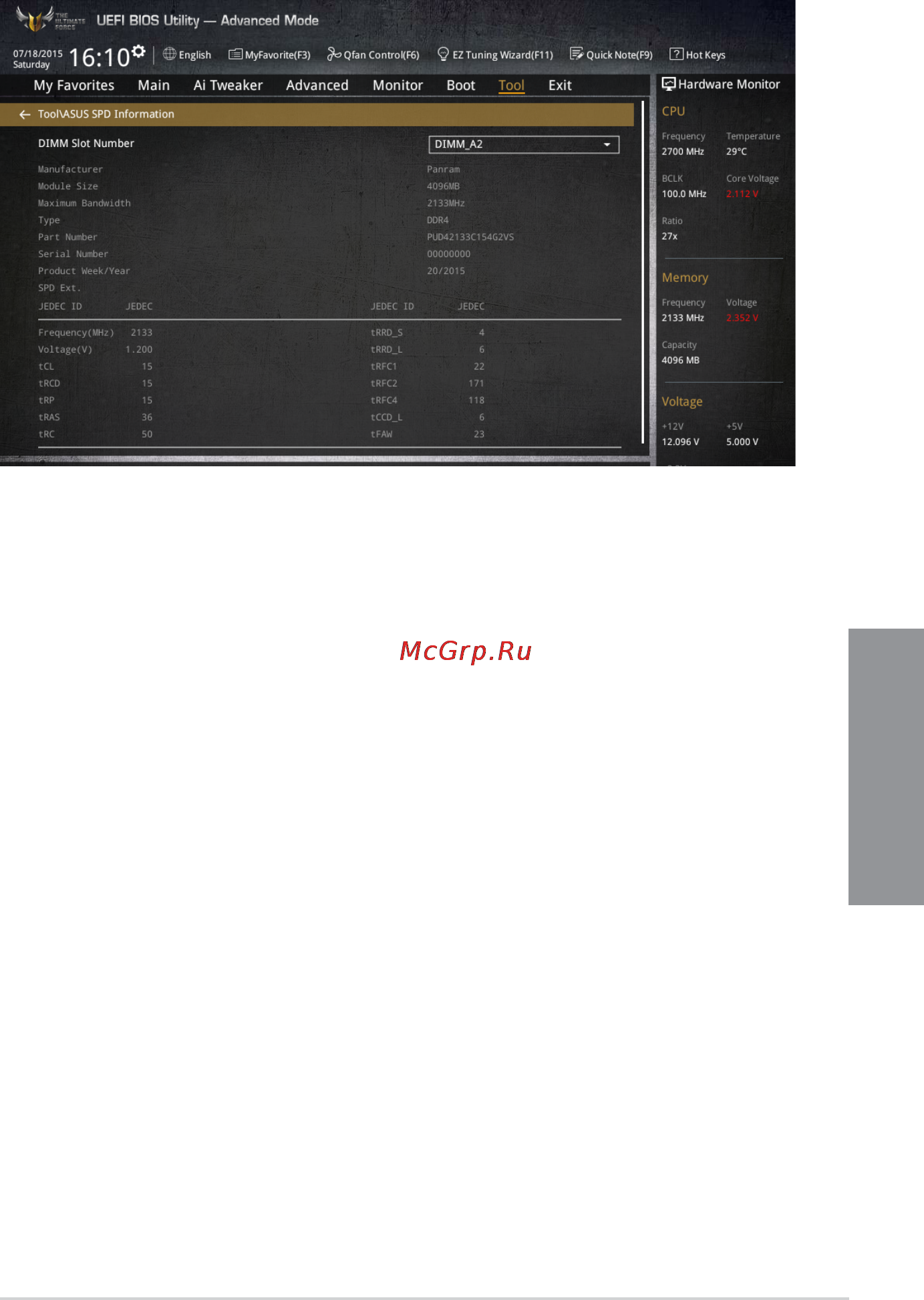

3.9.4 ASUS SPD Information

This item allows you to view the DRAM SPD information.
