Инструкция по эксплуатации Страница: 68

Asus tuf sabertooth z170 mark 1 [68/140] Chapter 2

2-16

Chapter 2: Basic Installation

Chapter 2

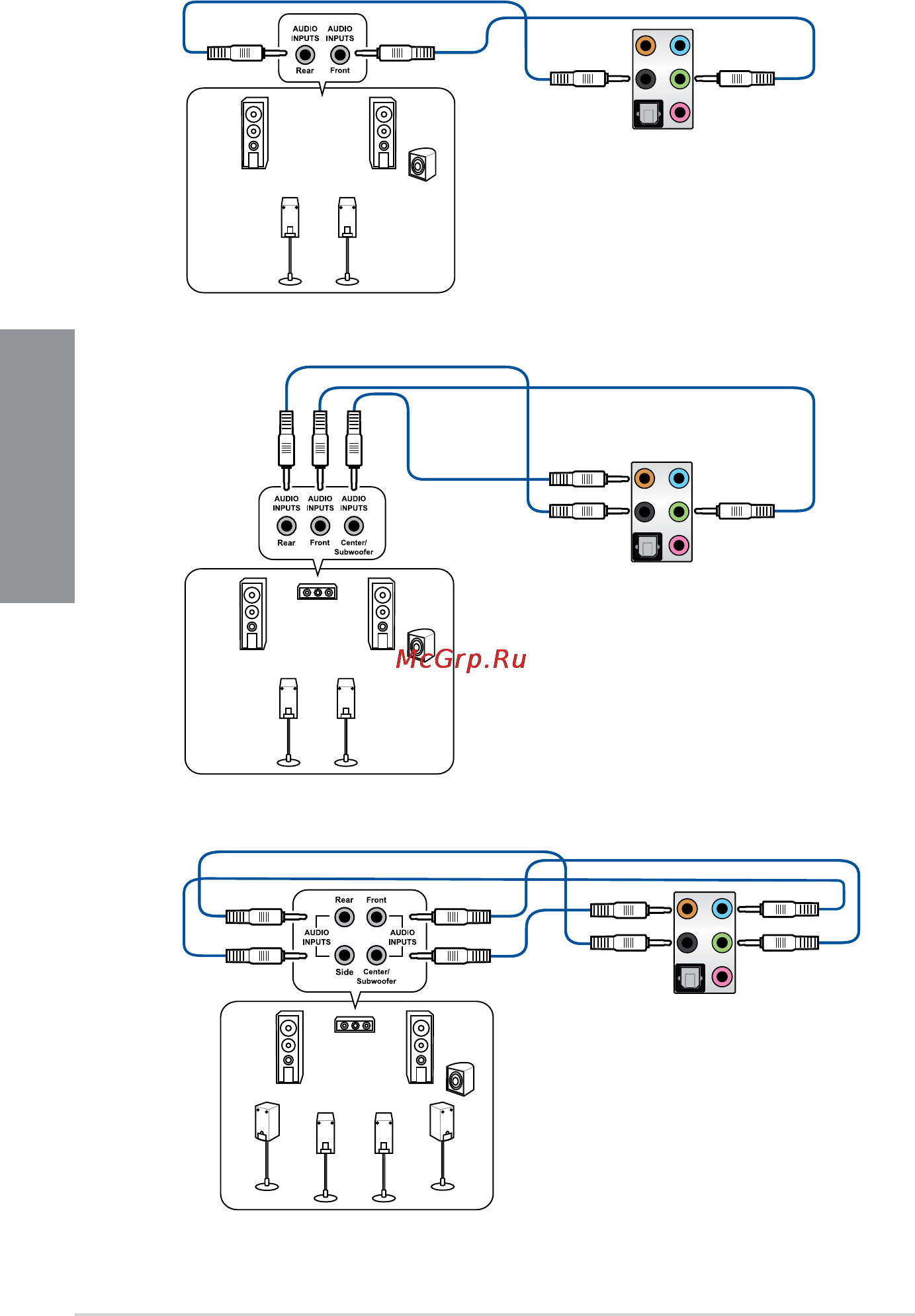

Connect to 4.1 channel Speakers

Connect to 5.1 channel Speakers

Connect to 7.1 channel Speakers
