Asus tuf sabertooth z170 mark 1 [124/140] Chapter 4

4-26

Chapter 4: Software Support

Chapter 4

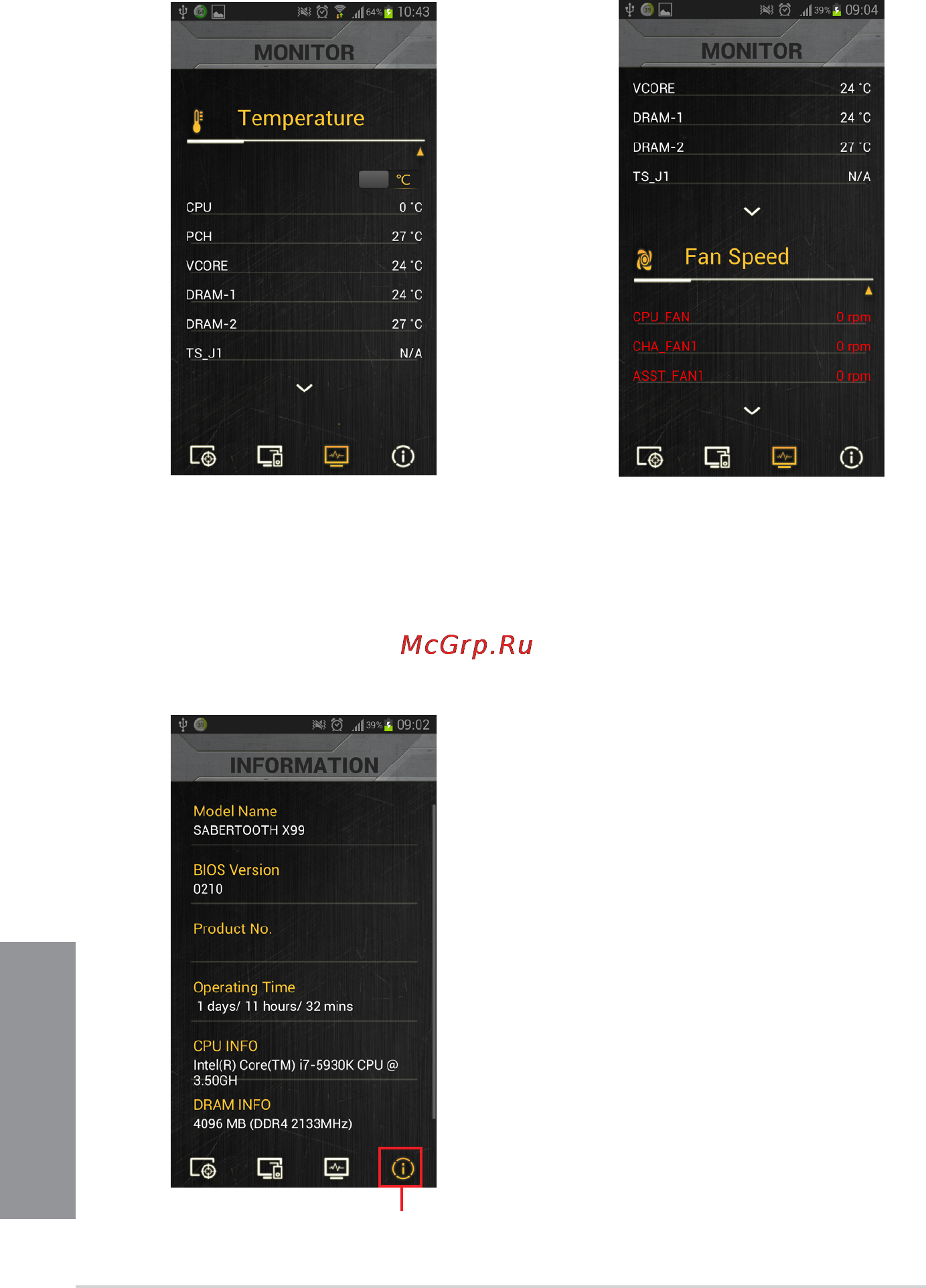

Tapthetriangleicontomonitor

thetemperature.

Tapthetriangleicontomonitor

thefanspeed.

4.6.4 Information

TheInformationpageprovidesyouwith

importantdetailsaboutthesystemsuch

asthemodelname,BIOSversion,product

number,operatingtime,CPUinformation,

andDRAMinformation.

Information
