SABERTOOTH Z170 MARK 1

3-19

Chapter 3

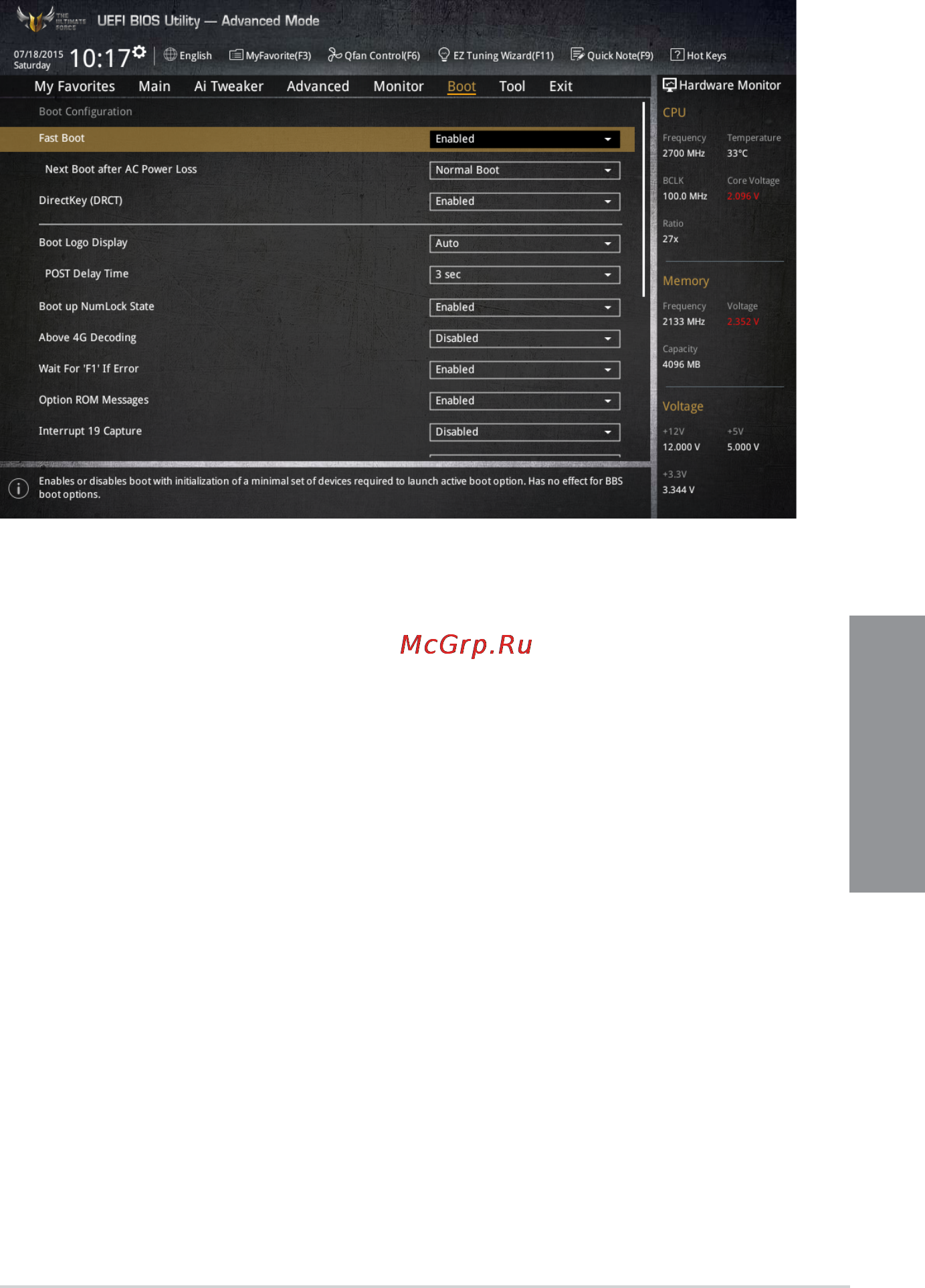

3.8 Boot menu

The Boot menu items allow you to change the system boot options and boot device priority.
