Administrator’s Guide for CP860 IP conference phones
94
click .

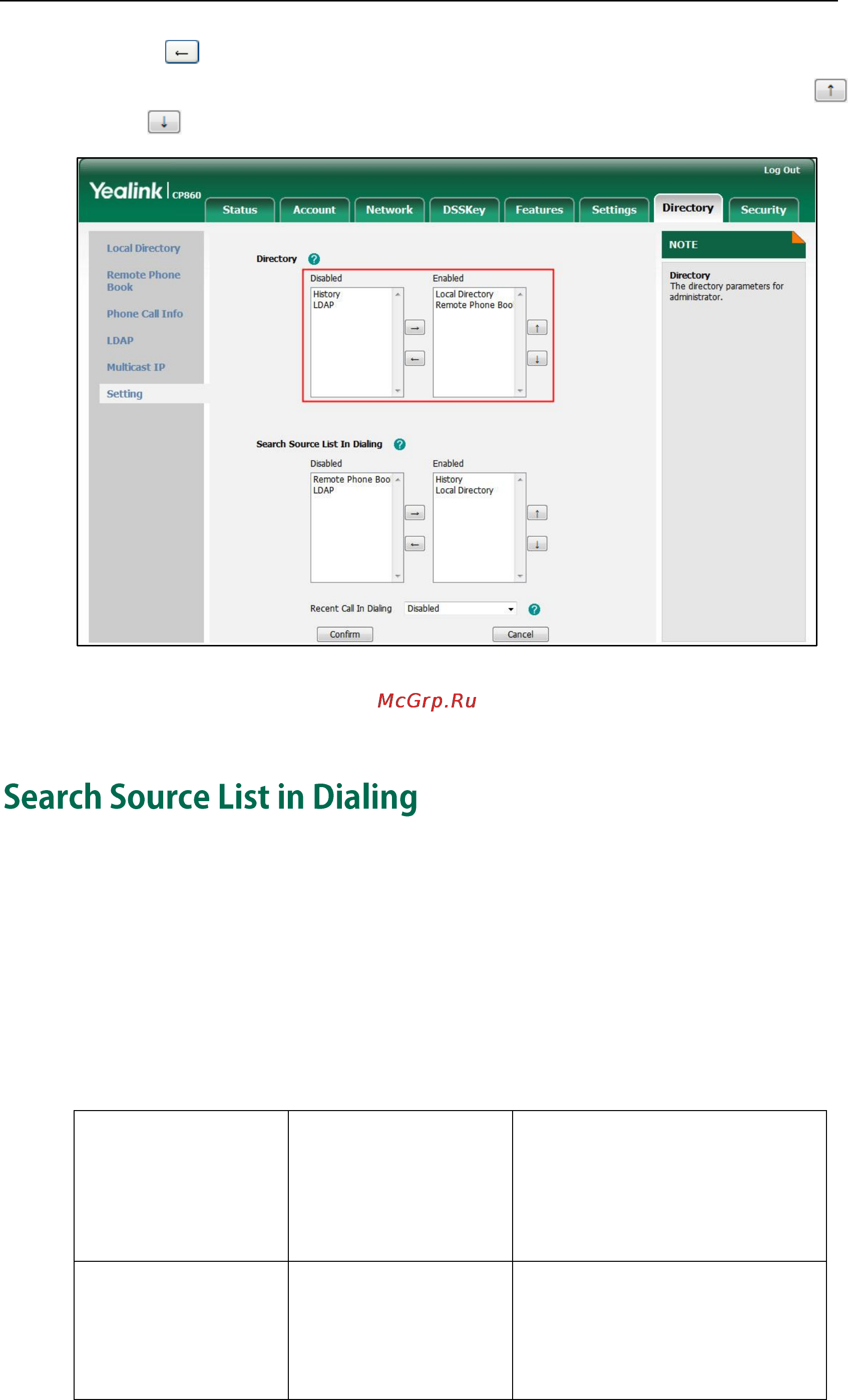

5. To adjust the display order of enabled lists, select the desired list and then click
or .
6. Click Confirm to accept the change.
The IP phone LCD screen will display the enabled list(s) in the adjusted order.
Search source list in dialing allows the IP phone to automatically search entries from the
search source list based on the entered string, and display results on the dialing screen.
The search source list can be Local Directory, History, Remote Phone Book and LDAP. You
can configure the search source list in dialing using a super search file. For more
information on the super search template, refer to Super Search Template on page 328.
Procedure
Search source list can be configured using the configuration files or locally.
Configuration File
y000000000037.cfg
Specify the access URL of the
super search file.
Parameter:
super_search.url
Local
Web User Interface
Configure the search source list in
dialing.
Navigate to:
http://<phoneIPAddress>/servlet
