Administrator’s Guide for CP860 IP conference phones
8
AC Power (Optional)

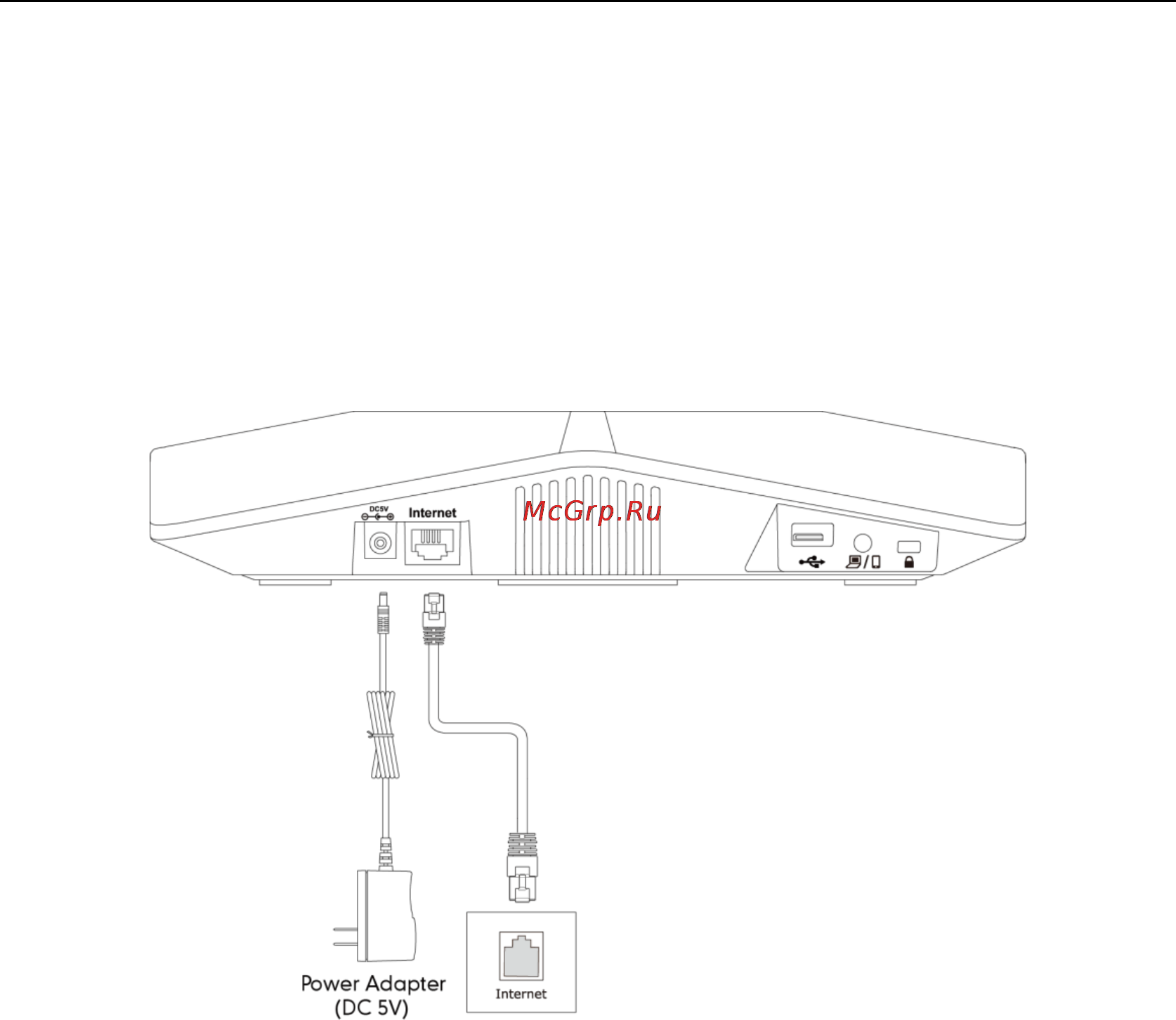

To connect the AC power and network:
1. Connect the DC plug of the power adapter to the DC5V port on IP phones and
connect the other end of the power adapter into an electrical power outlet.
2. Connect the included or a standard Ethernet cable between the Internet port on IP
phones and the one on the wall or switch/hub device port.
Power over Ethernet
With the included or a regular Ethernet cable, the CP860 IP conference phone can be
powered from a PoE-compliant switch or hub.
