Configuring Basic Features
71
Parameters
Permitted Values
Default
to upload a custom logo file to the IP phone).
Web User Interface:
Features->General Information->Use Logo
Phone User Interface:
None
lcd_logo.url
URL within 511 characters
Blank
Description:
Configures the access URL of the custom logo file.
Example：
The following example uses HTTP to download the custom logo file (logo.dob) from
the provisioning server 192.168.10.25.
lcd_logo.url = http://192.168.10.25/logo.dob
Web User Interface:
Features->General Information->Upload Logo(192*64)
Phone User Interface:
None

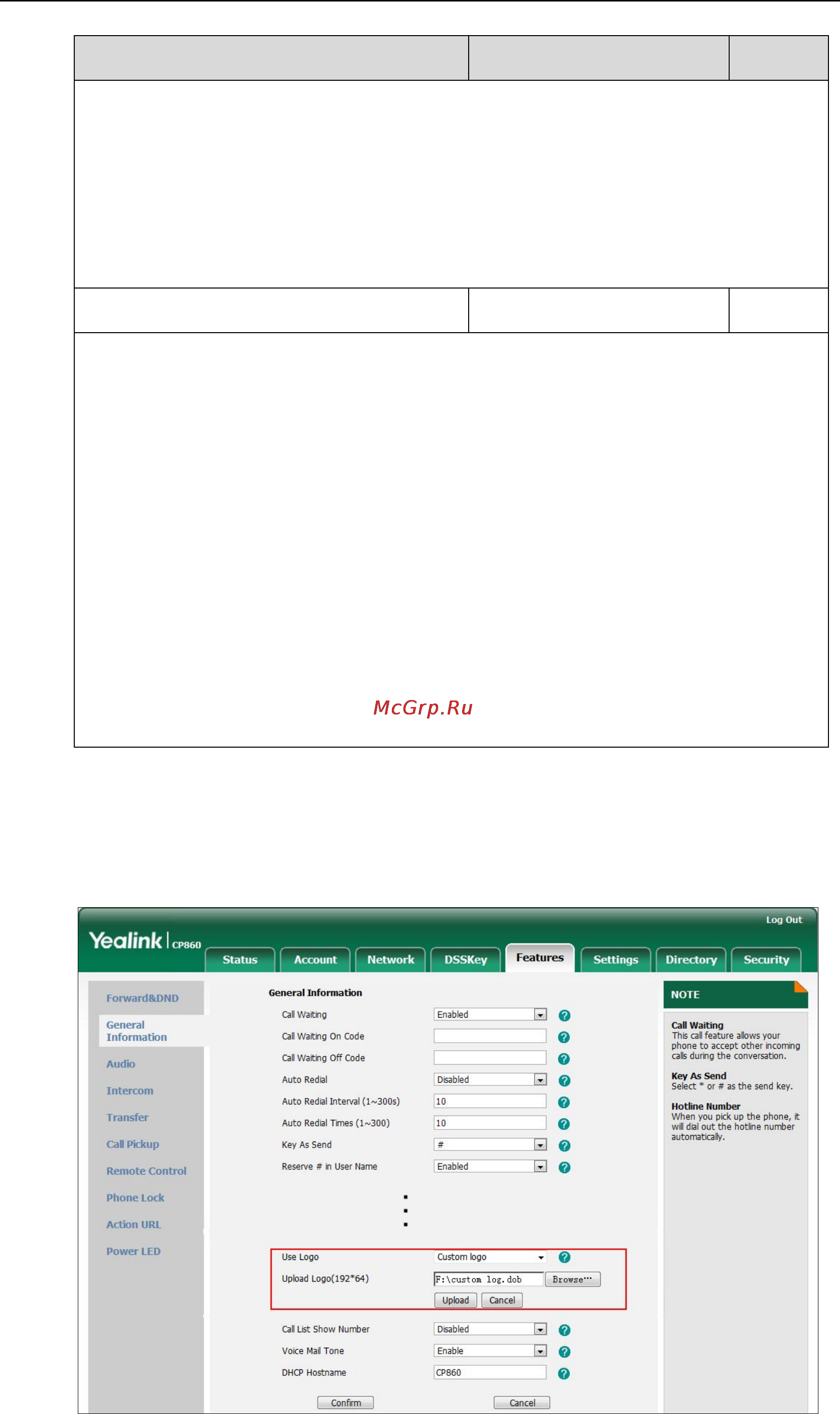

To configure a custom logo via web user interface:
1. Click on Features->General Information.
2. Select Custom logo from the pull-down list of Use Logo.
