Moxa V2406A-C7-CT-T [33/85] Installing crystaldiskinfo

V2406A W7E Series Moxa SynMap Package

6-3

Installing CrystalDiskInfo

Complete the following steps to install CrystalDiskInfo, a disk health diagnostics tool that allows you to monitor

the health of a disk.

1. On the software DVD, click CrystalDiskInfo6_1_9a-en.exe in the \utility\mxSynMap\ folder.

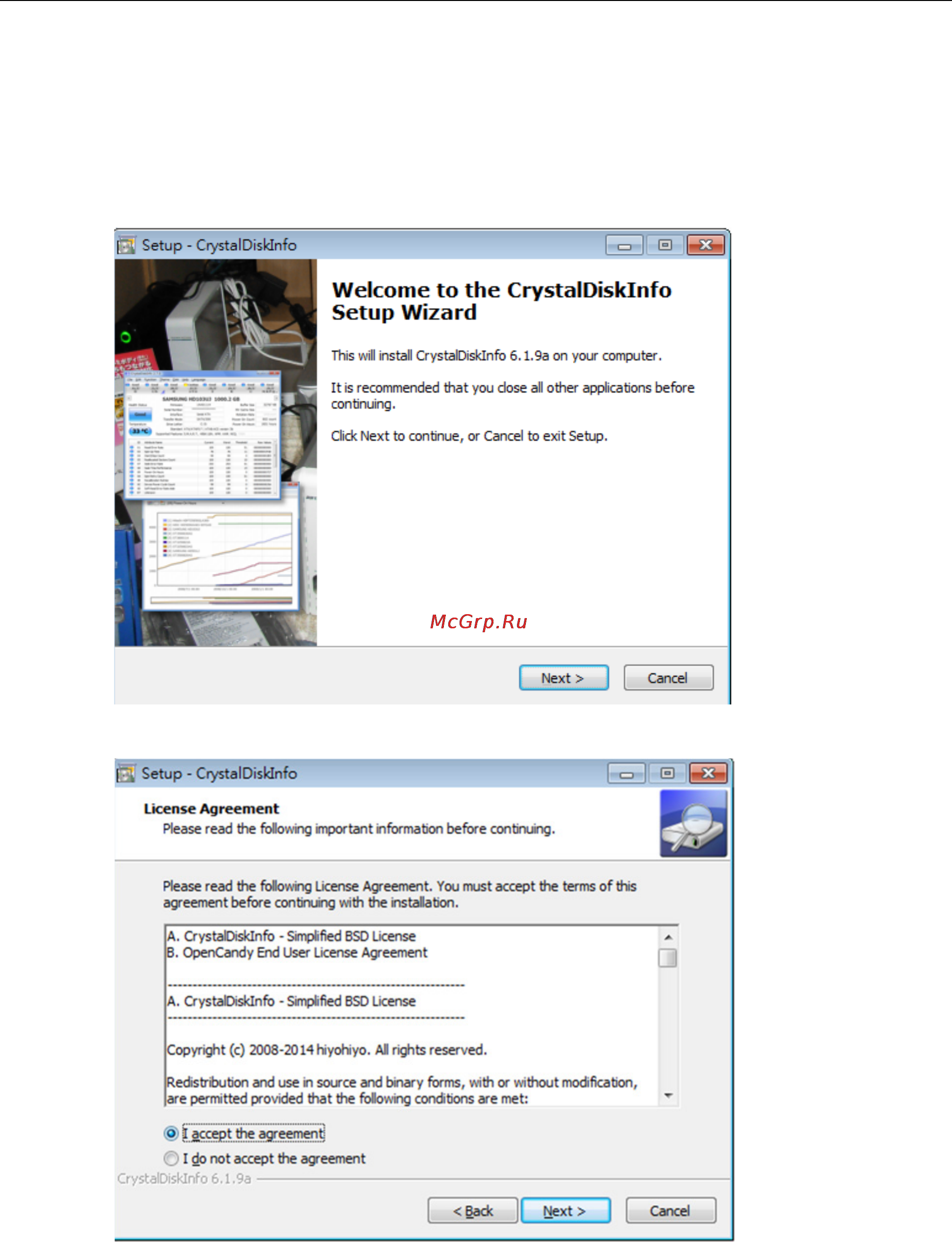

2. A Welcome screen appears. Click Next.

3. Select I accept the agreement and click Next.
