Moxa V2406A-C7-CT-T [76/85] V2406a w7e series system recovery

V2406A W7E Series System Recovery

8-10

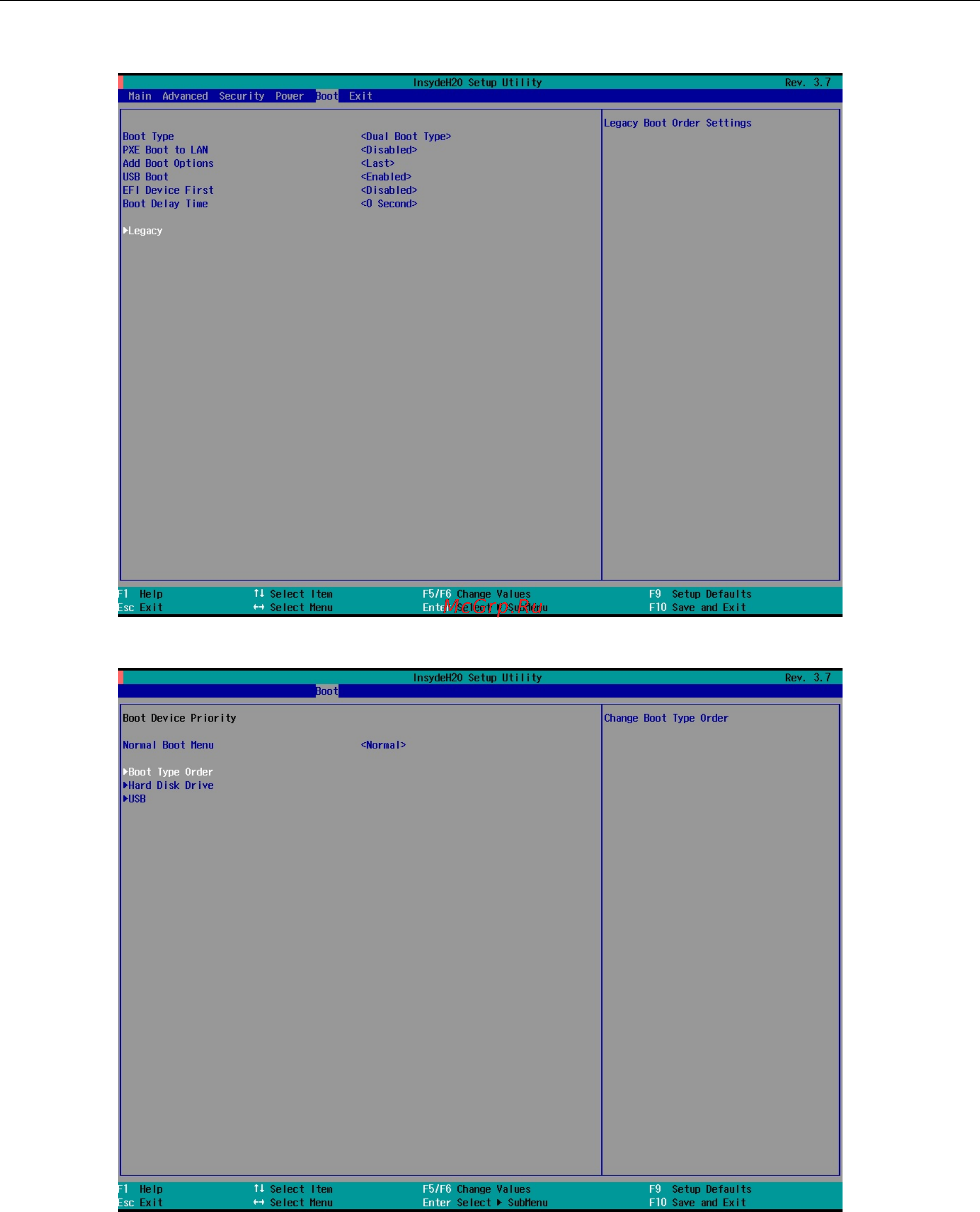

3. Use the up and down arrows to navigate to the Legacy link; then, press [Enter].

4. Use the up and down arrow keys to navigate to the Boot Type Order link; then, press Enter.

5. Use the up and down arrows to highlight Hard Disk Drive and use the plus or minus (+/-) key to move

Hard Disk Drive to the top of the boot priority list.
