V2406A W7E Series Moxa SynMap Package

6-29

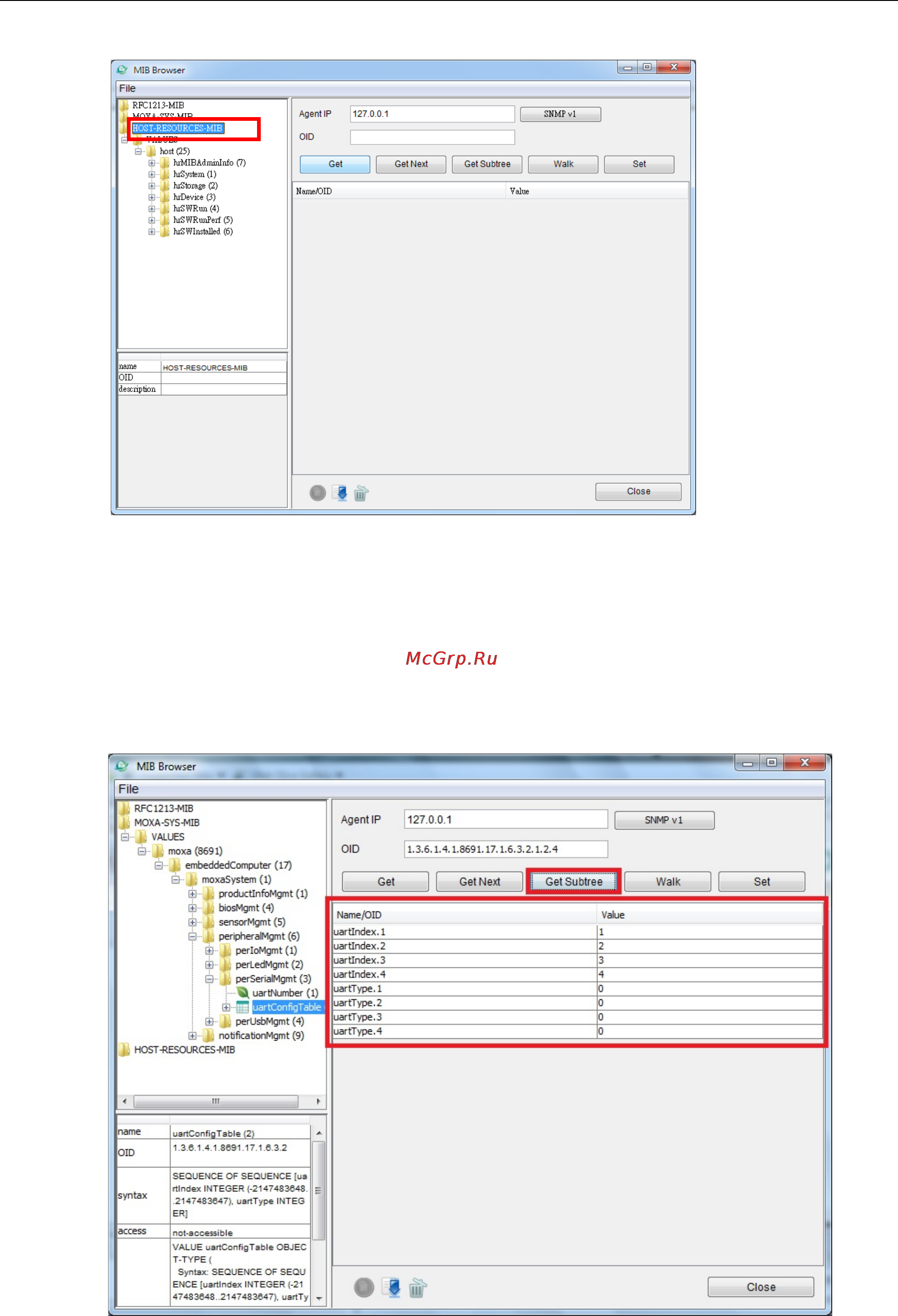

8. In the MIB Browser screen, verify that the HOST-RESOURCES-MIB folder appears in the File list.

Using Moxa SynMap OIDs

Complete the following steps to use Moxa SynMap OIDs:

1. Check the UART type. Navigate to

MOXA-SYS-MIB\VALUES\moxa\embeddedComputer\moxaSystem\peripheralMgmt\ and

double-click uartConfigTable.

2. Click Get Subtree and verify that your MxView settings are correct.
