V2406A W7E Series Examples

7-2

SerialInterface

1. Copy the following files from the product software DVD.

mxsp.dll: \examples\V2406A_W7E_V1.0_example\lib\mxsp\x86\

sysinfo.dll: \examples\V2406A_W7E_V1.0_example\lib\mxsp\x86\

sysinfo.sys: \examples\V2406A_W7E_V1.0_example\lib\mxsp\x86\

mxGeneralIo.dll: \examples\V2406A_W7E_V1.0_example\lib\MxGeneralIo\x86\

SerialInterface.exe: \examples\V2406A_W7E_V1.0_example\Release\

2. Execute SerialInterface.exe.

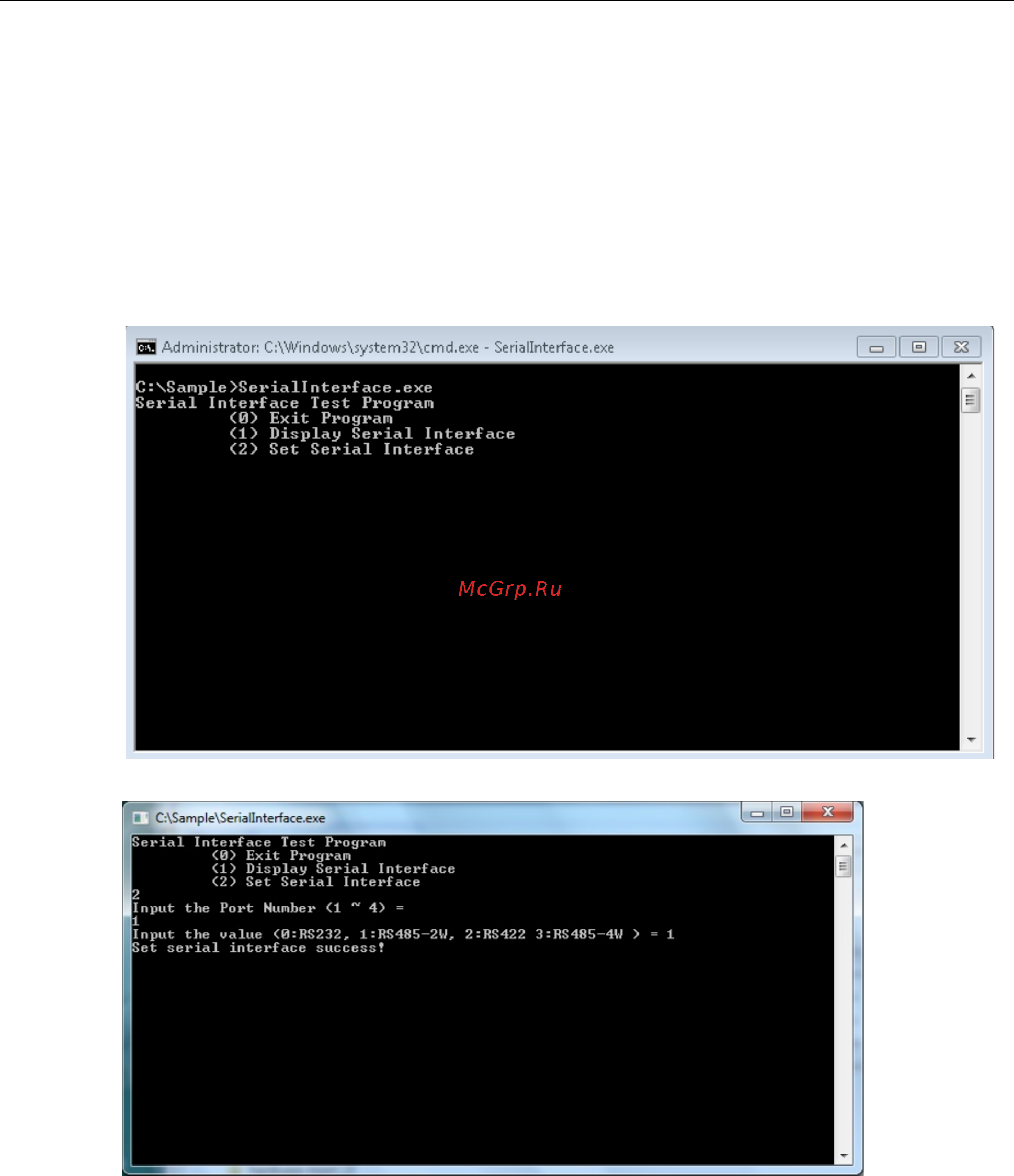

3. Type 2 to set the serial interface. Follow the on-screen instructions.
