V2406A W7E Series Moxa SynMap Package

6-10

Installing MXview

This section describes how to use the MIB browser (mxView) to monitor or control Moxa SynMap OIDs. If you

already have your own MIB browser, skip this section.

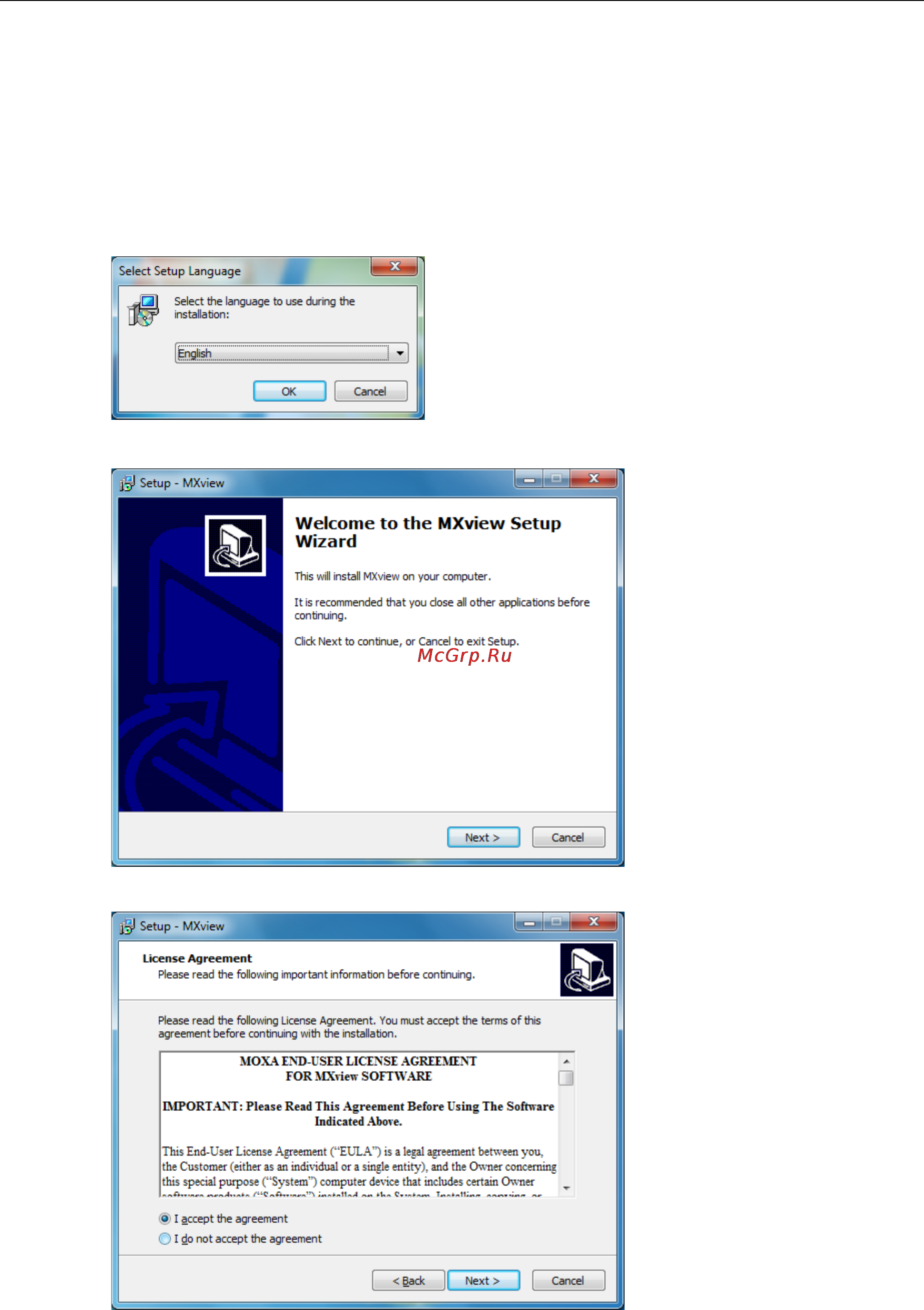

Complete the following steps to install the MXview package:

1. On the software DVD, double-click MXView_Trial_V2.4.exe in the \utility\mxViewTrial folder.

2. In the Select Setup Language screen, select a language from the drop-down list and click OK.

3. Click Next.

4. Select I accept the agreement and click Next.
