Moxa V2406A-C7-CT-T [43/85] Configuring mxview

V2406A W7E Series Moxa SynMap Package

6-13

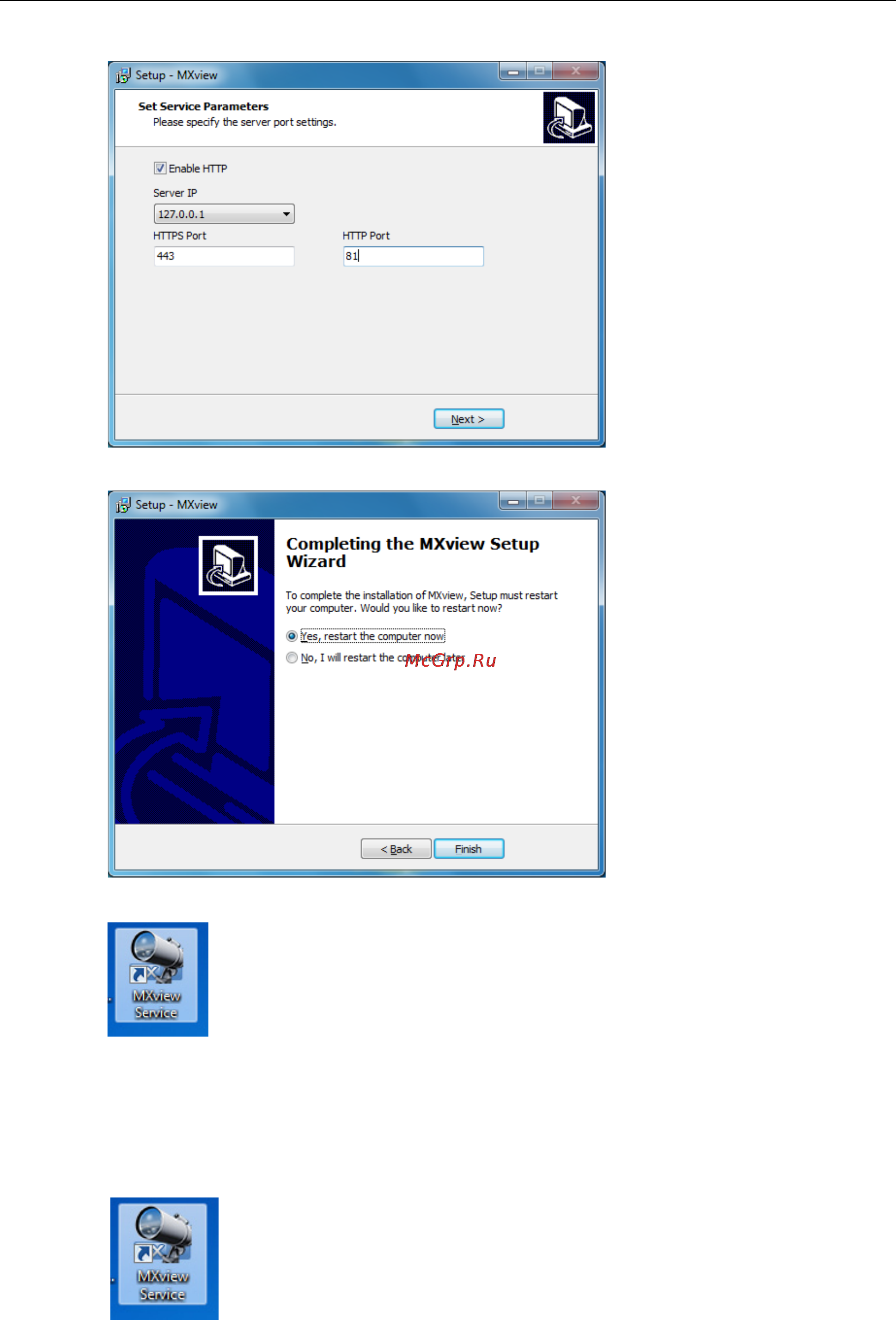

11. Set the HTTP port to 81 and click Next.

12. Select Yes, restart the computer now and click Finish to reboot the system

13. fter the computer is restarted, the MXview Service shortcut appears on the computer desktop.

Configuring MXview

Complete the following steps to configure MXview:

1. Double-click the MXview shortcut on the desktop.
