V2406A W7E Series System Recovery

8-8

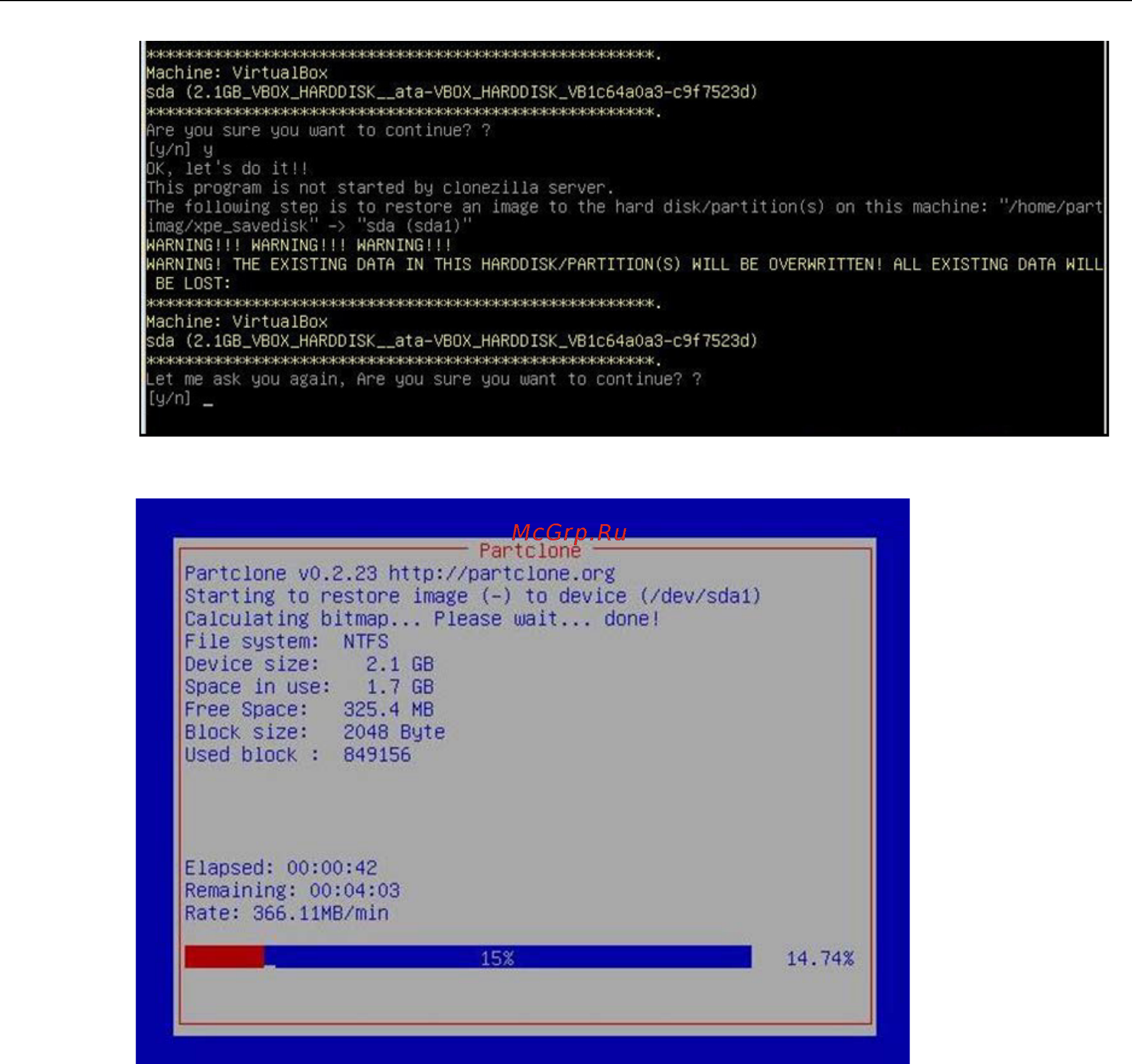

5. Wait until the process is finished.

6. To complete the recovery process, select (0) Power off to shut down the computer. However, if the Power

Switch remains inserted in the front panel of the computer and is left in the ON position, the system will

not shut down and will immediately initiate a soft reboot. To avoid this, use the switch to cut off power to

the computer immediately following the shutdown command, or simply the power switch from the front

panel and use the console to shut down the computer by pressing 0.
