V2406A W7E Series Examples

7-3

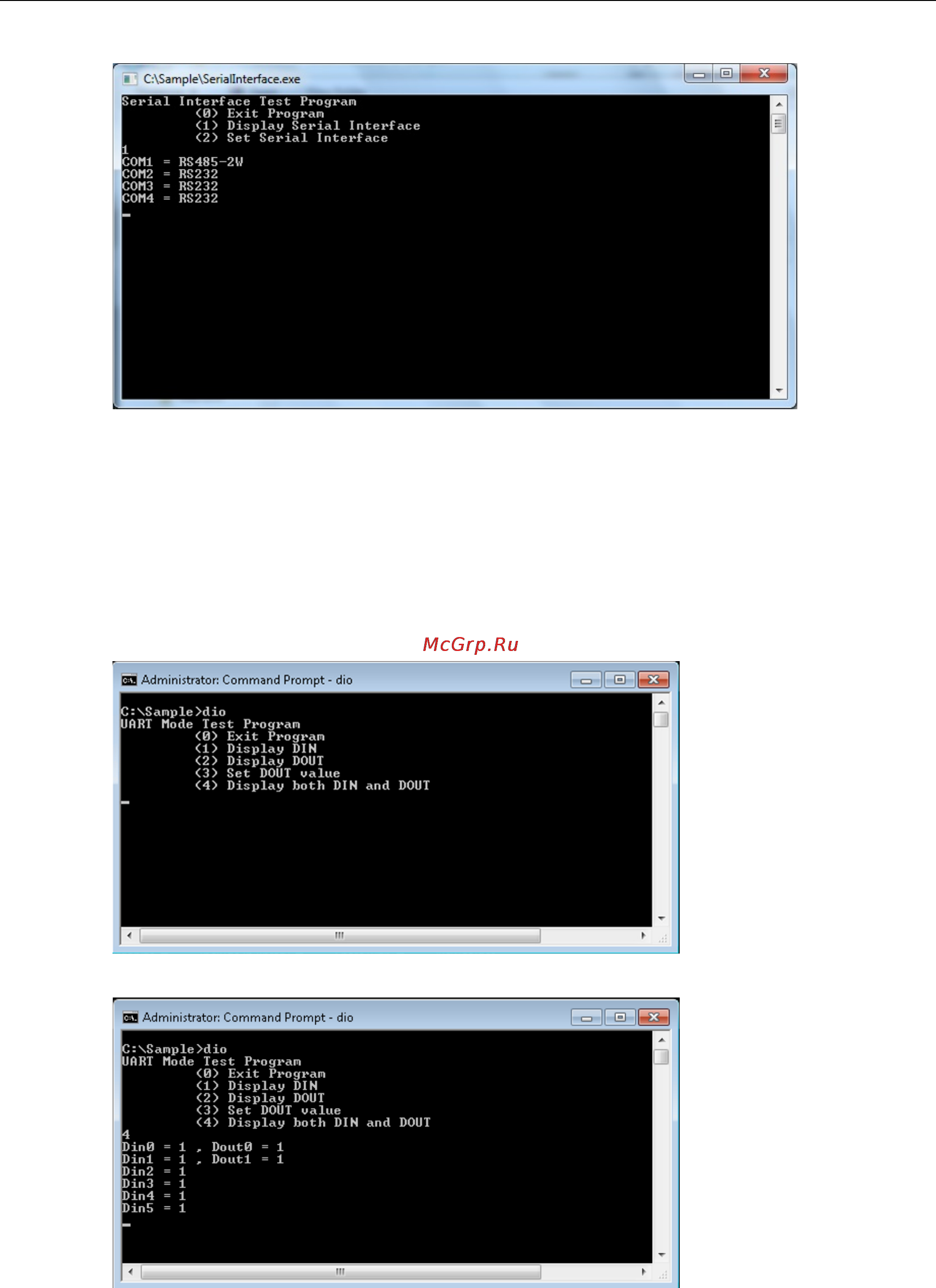

4. Type 1 to display the current serial interface settings.

Digital Input/Output

1. Copy the following files from the product software DVD.

mxdgio.dll: \examples\V2406A_W7E_V1.0_example\lib\mxdgio\x86\

mxGeneralIo.dll: \examples\V2406A_W7E_V1.0_example\lib\MxGeneralIo\x86\

DIO.exe: \examples\V2406A_W7E_V1.0_example\Release\

2. Execute DIO.exe.

3. Type 4 to display the current DI and DO values.

4. Type 3 to set the DOUT port number. Follow the on-screen instructions.
