V2406A W7E Series Moxa SynMap Package
6-22

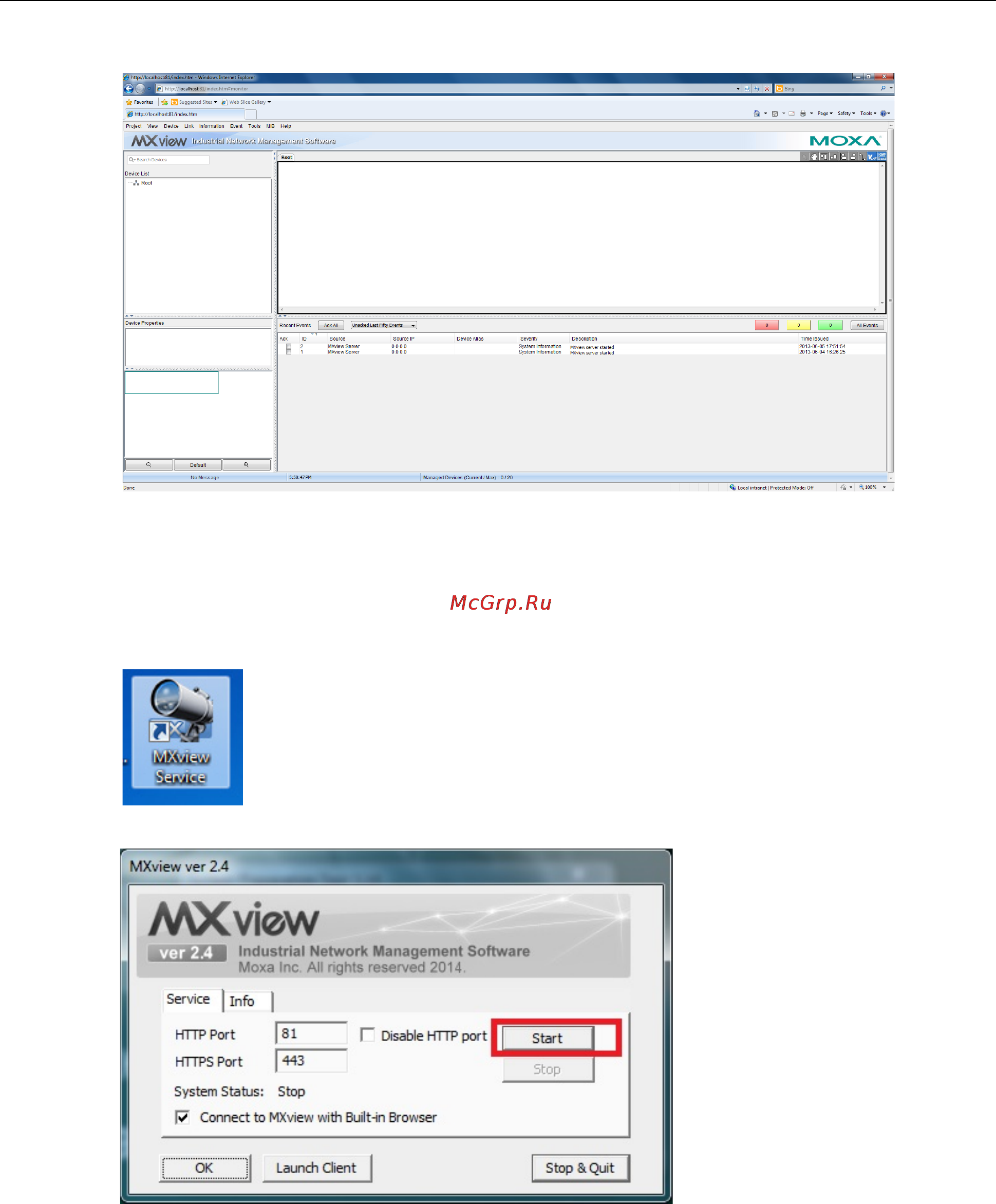

The MXview screen appears.
Loading the Moxa SynMap MIB File
Follow these steps to load the Moxa SynMap MIB file.
1. Double-click the MxView Service icon on the desktop.
2. Click Start.
