V2406A W7E Series Moxa SynMap Package
6-30
Using HOST RESOURCE OIDs
Complete the following steps to use HOST RESOURCE OIDs.

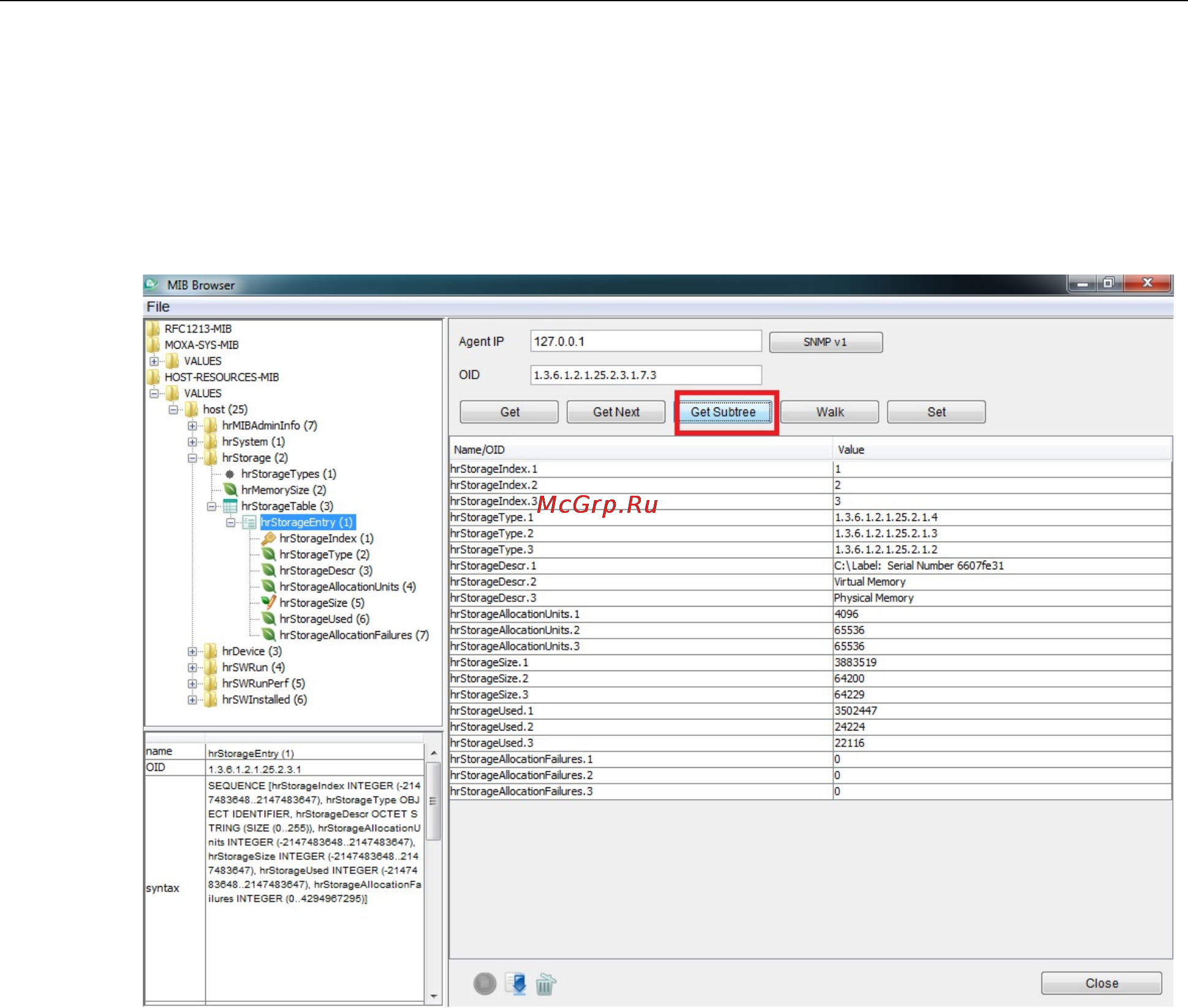

1. Check disk usage. Navigate to HOST-RESOURCES-MIB\VALUES\host\hrStorage\hrStorageTable\
and double-click hrStorageEntry.
2. Click Get Subtree and verify that your MxView settings are correct.
3. Retrieve the value of hrStorageAllocationUnits.1 (for example, 4096).
4. Retrieve the value of hrStorageSize.1 (for example, 14384127).
5. Calculate the total disk size using the following formula:
total disk size = hrStorageAllocationUnits x hrStorageSize
In this example, the total disk size is 4096 x 14384127= 58917384192 = 54.9 GB
6. Check memory usage. Go to the HOST-RESOURCES-MIB\VALUES\host\hrStorage\ folder and
double-click hrMemorySize.
