V2406A W7E Series System Recovery

8-3

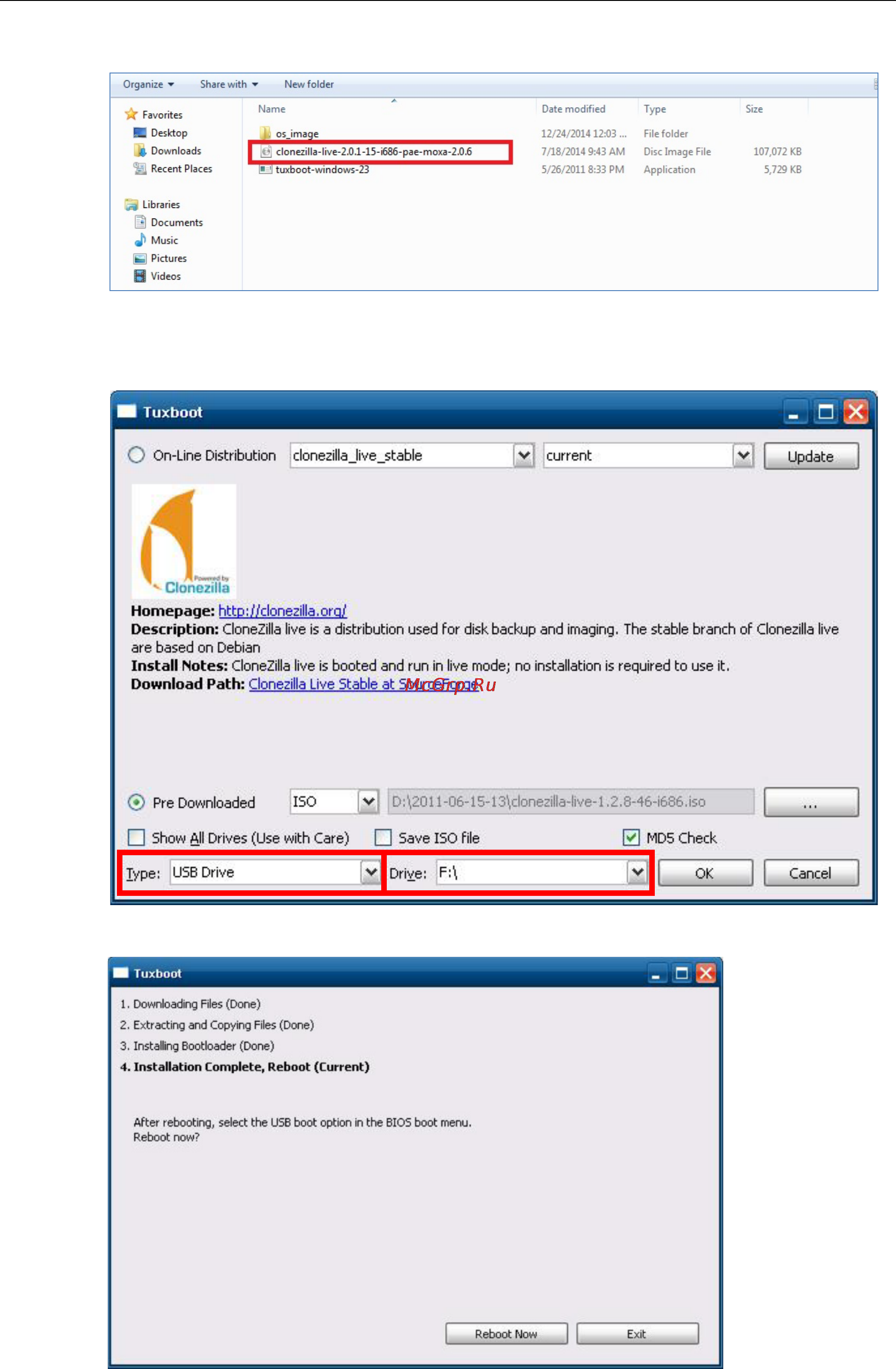

3. Navigate to the \recovery\ folder on the software DVD and select the boot environment’s ISO image.

4. Select USB Drive from the Type drop-down list and select the drive letter that corresponds to the USB

drive from the Drive drop-down list. Click OK to copy the boot environment and bootloader to your USB

drive.

5. Click Exit.
