Moxa V2406A-C7-CT-T [45/85] V2406a w7e series moxa synmap package

V2406A W7E Series Moxa SynMap Package

6-15

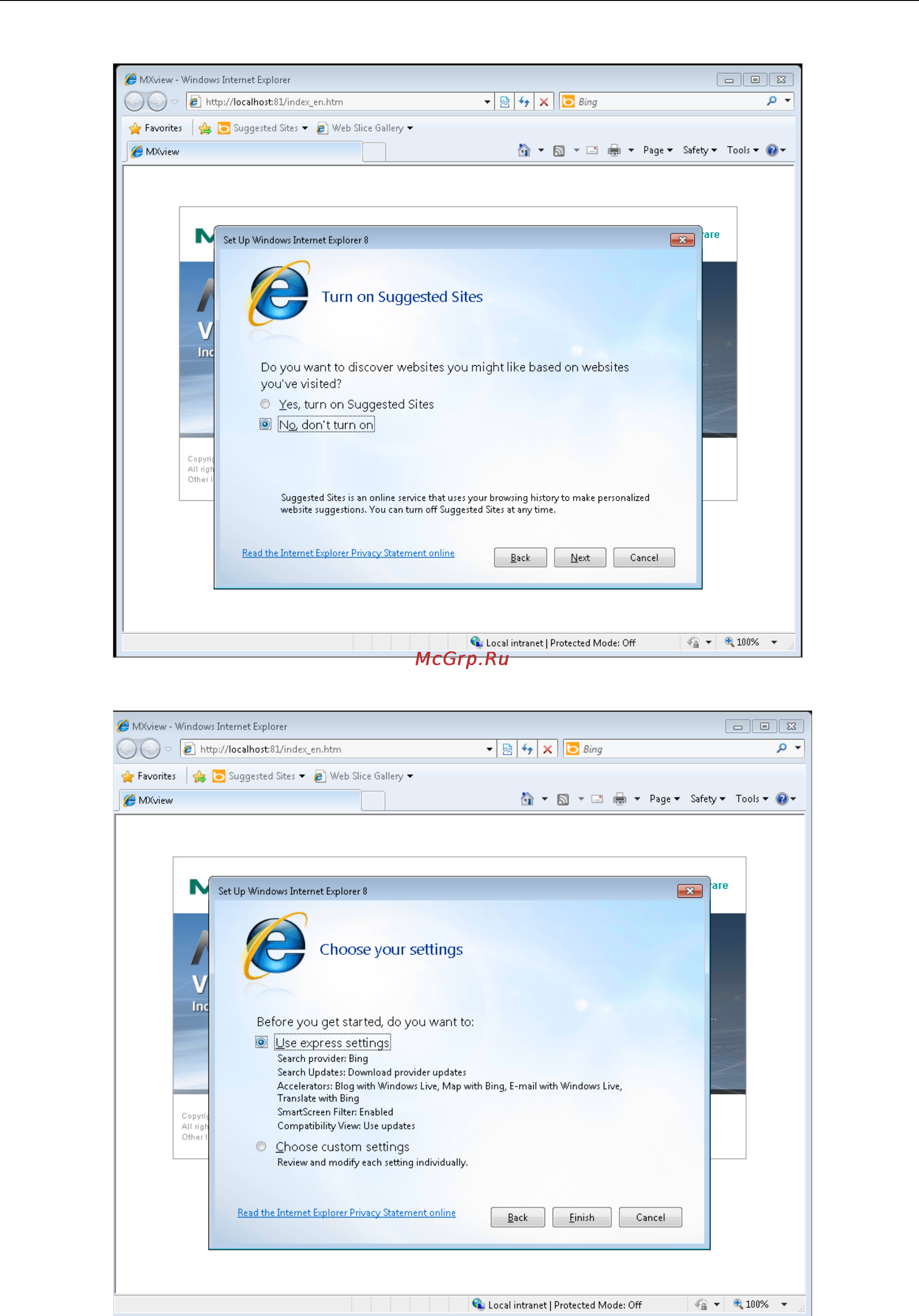

5. Select No, don’t turn on and click Next.

6. Select Use express settings and click Finish to complete the configuration.
