V2406A W7E Series Moxa SynMap Package

6-6

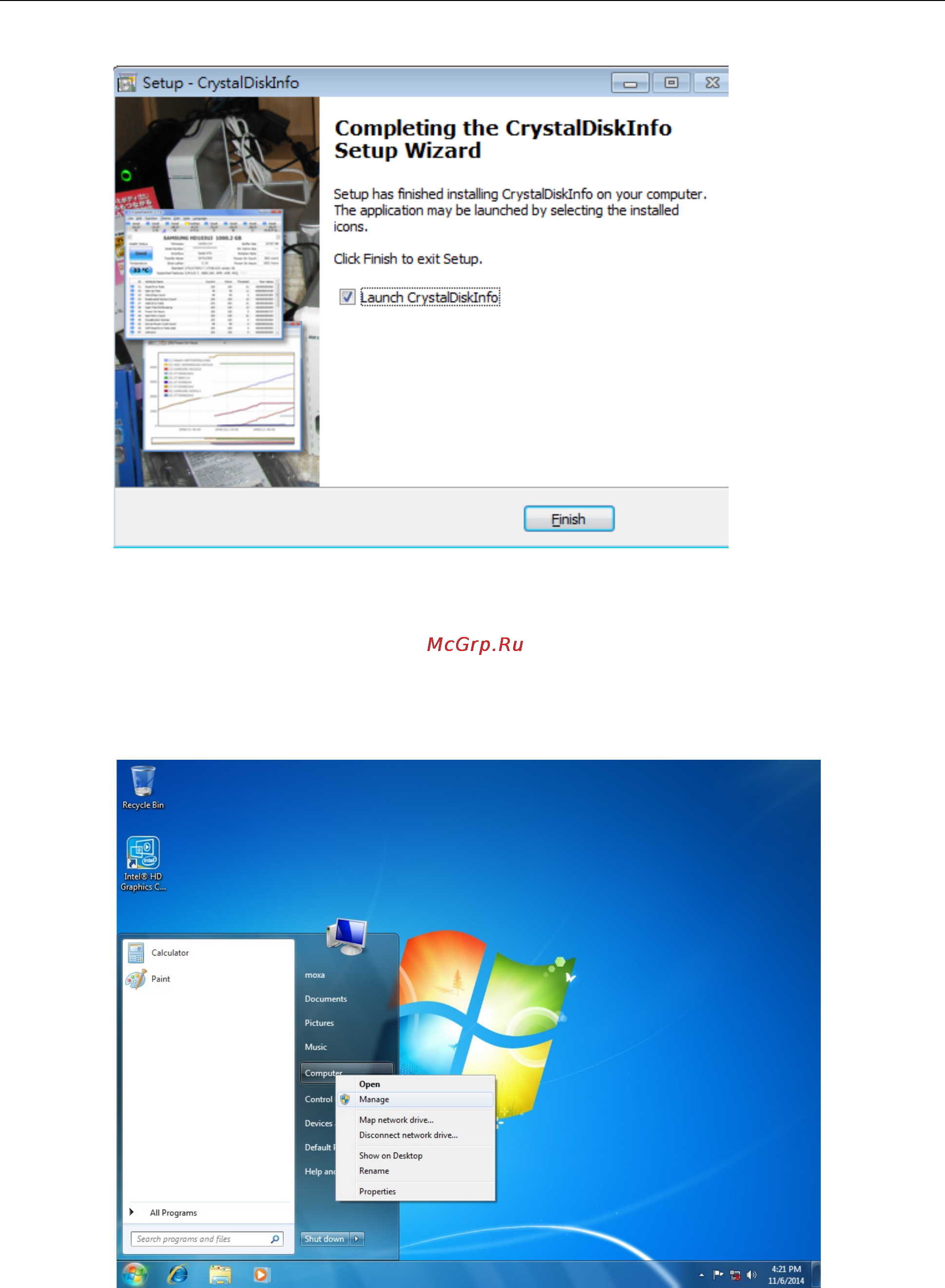

8. Click Finish.

9. Add a shortcut in the startup folder to execute the program when system boots up.

Installing the Moxa SynMap Package

Before you install the Moxa SynMap Package, disable the Windows SNMP server. Complete the following steps:

1. From the Start menu, right-click Computer and select Manage.

2. In the Computer Management screen, select Services under Service and Applications.
