W321/341 Linux Getting Started
2-15
The word Hello will be printed on the screen.
root@Moxa:~# ./hello-release
Hello
Developing Your First Application
We use the tcps2 example to illustrate how to build an application. The procedure outlined in the following
subsections will show you how to build a TCP server program plus serial port communication that runs on the
W321/341.

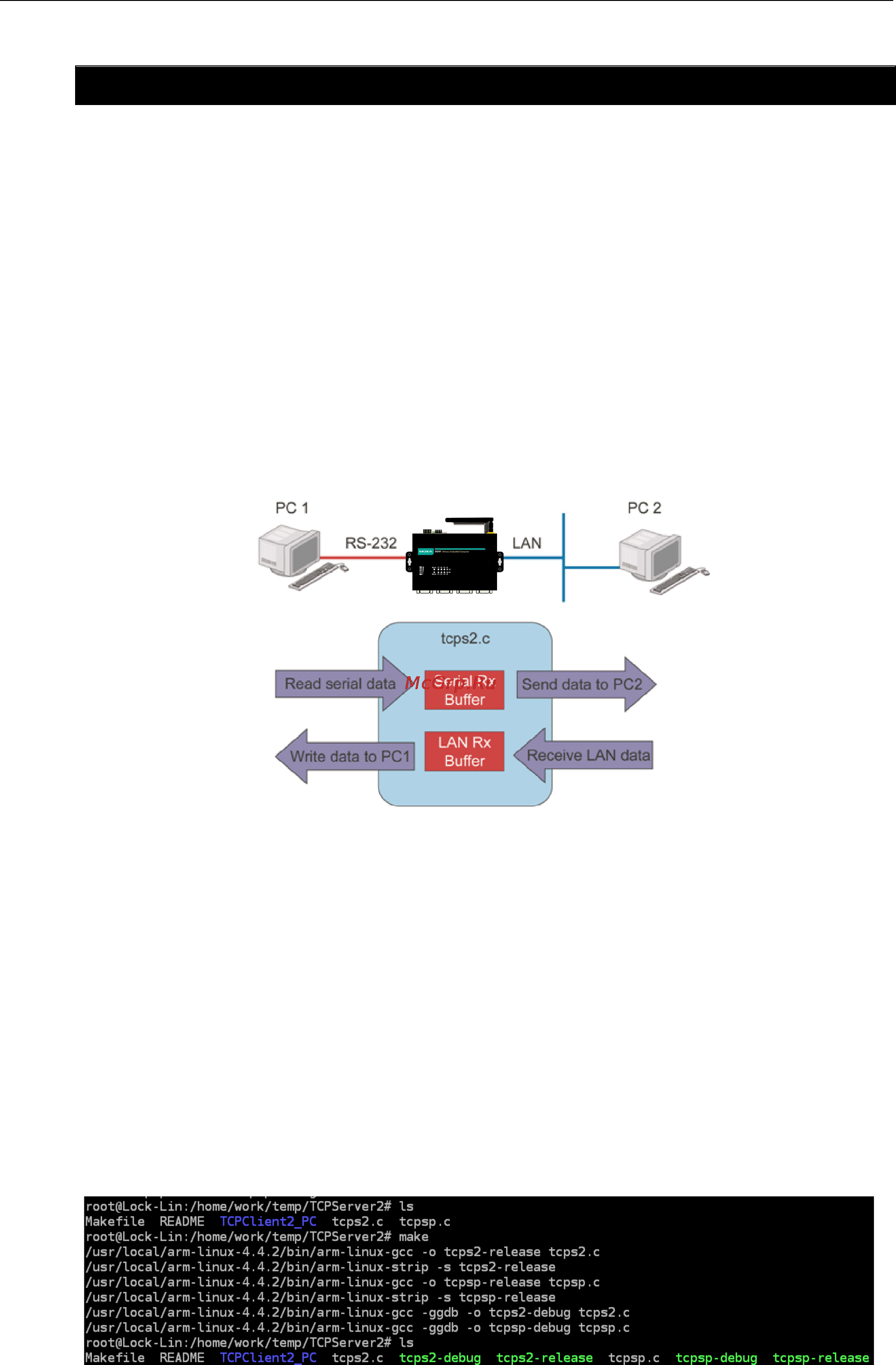

Testing Environment
The tcps2 example demonstrates a simple application program that delivers transparent, bi-directional data
transmission between the W321/341’s serial and Ethernet ports. As illustrated in the following figure, the
purpose of this application is to transfer data between PC 1 and the W321/341 through an RS-232 connection.
At the remote site, data can be transferred between the W321/341’s Ethernet port and PC 2 over an Ethernet
connection.
Compiling tcps2.c
The source code for the tcps2 example is located on the CD-ROM
at CD-ROM://example/W321/TCPServer2/tcps2.c. Use the following commands to copy the file to a
specific directory on your PC. We use the direrctory /home/work/temp/. Note that you need to copy 3
files—Makefile, tcps2.c, tcpsp.c—from the CD-ROM to the target directory.
#mount –t iso9660 /dev/cdrom /mnt/cdrom
#cp /mnt/cdrom/example/W321/TCPServer2/tcps2.c /home/w341/1st_application/tcps2.c
#cp /mnt/cdrom/example/W321/TCPServer2/tcpsp.c /home/w341/1st_application/tcpsp.c
#cp /mnt/cdrom/example/W321/TCPServer2/Makefile.c /home/w341/1st_application/Makefile
Type
#make to compile the example code:
You will get the following response, indicating that the example program was compiled successfully.
