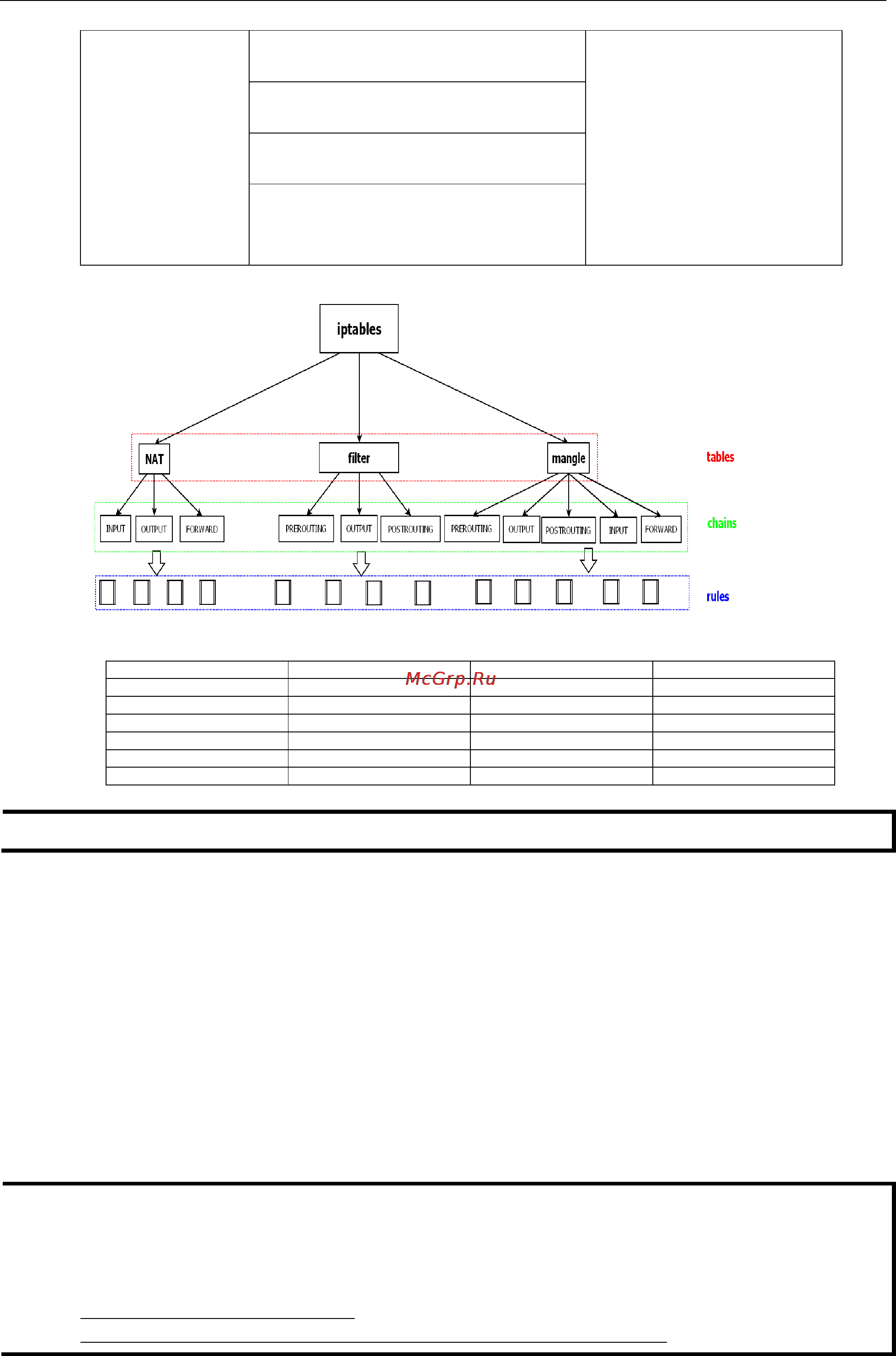

W321/341 Linux
-5
modification)
INPUT
FORWARD
OUTPUT
POSTROUTING
The W321/341 supports the following sub-modules. Be sure to use the module that matches your application.
x_tables.ko
xt_hl.ko
nfnetlink.ko
xt_DSCP.ko
xt_mark.ko
nfnetlink_queue.ko
xt_HL.ko
xt_tcpudp.ko
arp_tables.ko
ipt_MASQUERADE.ko
iptable_nat.ko
arpt_mangle.ko
ipt_REJECT.ko
iptable_raw.ko
arptable_filter.ko
ipt_ULOG..ko
nf_conntrack_ipv4.ko
ip_queue.ko
ipt_addrtype.ko
nf_defrag_ipv4.ko
ip_tables.ko
ipt_ecn.ko
nf_nat.ko
ipt_ECN.ko
iptable_filter.ko
ipt_LOG..ko
iptable_mangle.ko
NOTE
The
W321/341 Do NOT support IPV6 and ipchains.
The basic syntax to enable and load an IPTABLES module is as follows:
#lsmod
#modprobe ip_tables
#modprobe iptable_filter
Use lsmod to check if the ip_tables module has already been loaded in the W321/341 unit. Use modprobe to
insert and enable the module.
Use the following command to load the modules (iptable_filter, iptable_mangle, iptable_nat):
#modprobe iptable_filter
Use the following commands to maintain the database:
#iptables, #iptables-restore #iptables-save
NOTE
IPTABLES plays the role of packet filtering or NAT. Take care when setting up the IPTABLES rules. If the rules
are not correct, remote hosts that connect via a LAN or PPP may be denied access. We recommend using the
serial console to set up the IPTABLES.
Click on the following links for more information about iptables.
http://www.linuxguruz.com/iptables/
http://www.netfilter.org/documentation/HOWTO//packet
-filtering-HOWTO.html
