W321/341 Linux
-12
The following example does not check the username and password:
pppd/dev/ttyM0 115200 crtscts modem 192.168.16.1:192.168.16.2
PPPoE
1. Connect the W321/341’s LAN port to an ADSL modem with a cross-over cable, HUB, or switch.
2. Log in to the W321/341 as the root user.

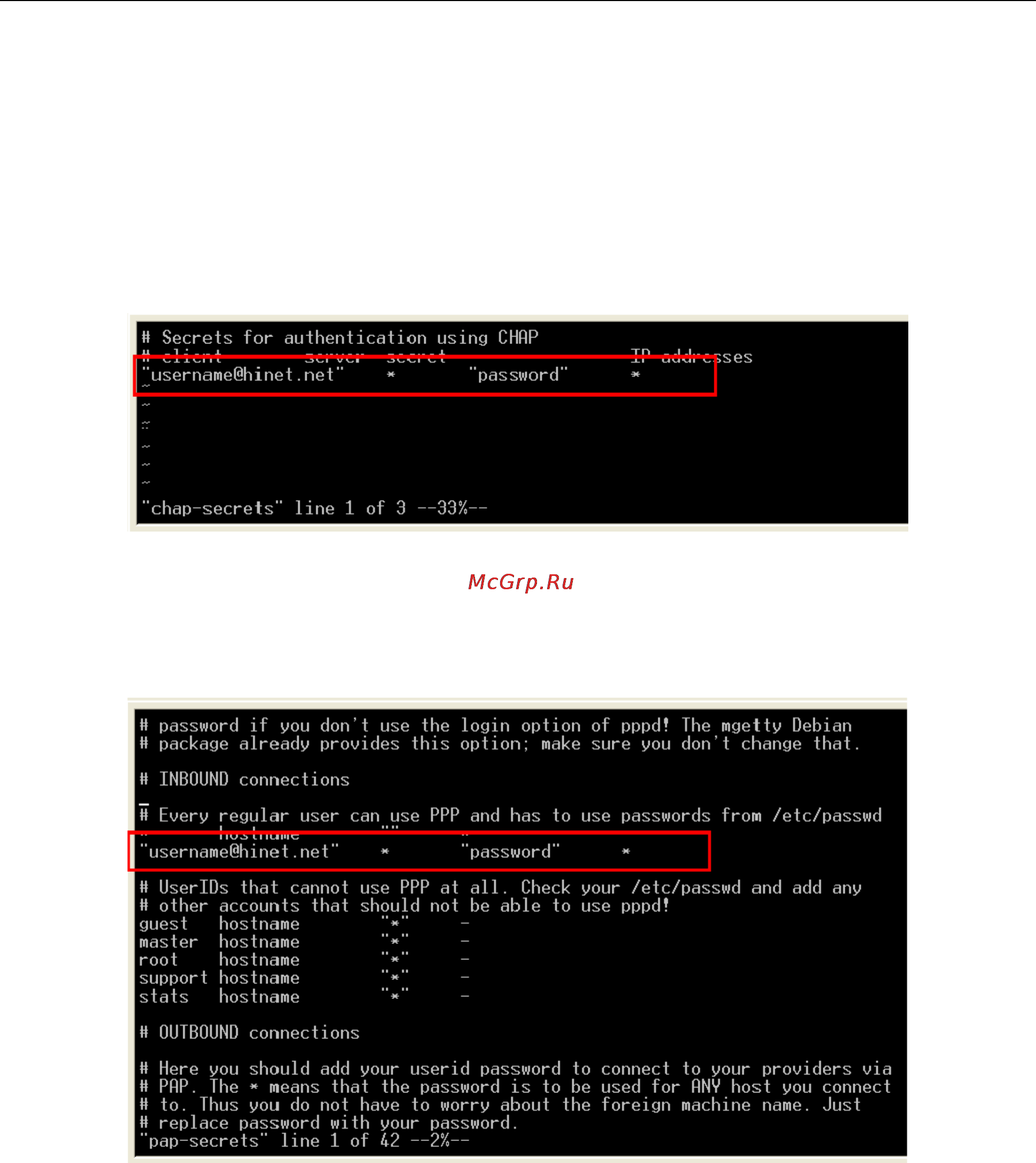

3. Edit the file /etc/ppp/chap-secrets and add the following: “username@hinet.net”*“password”*
“username@hinet.net” is the username obtained from the ISP to log in to the ISP
account. “password” is the corresponding password for the account.
4. Edit the file /etc/ppp/pap-secrets and add the following:
“username@hinet.net”*“password”*
“username@hinet.net” is the username obtained from the ISP to log in to the ISP
account. “password” is the corresponding password for the account.
5. Edit the file /etc/ppp/options and add the following line:
plugin pppoe
