W321/341 Linux Getting Started
2-18
NOTE

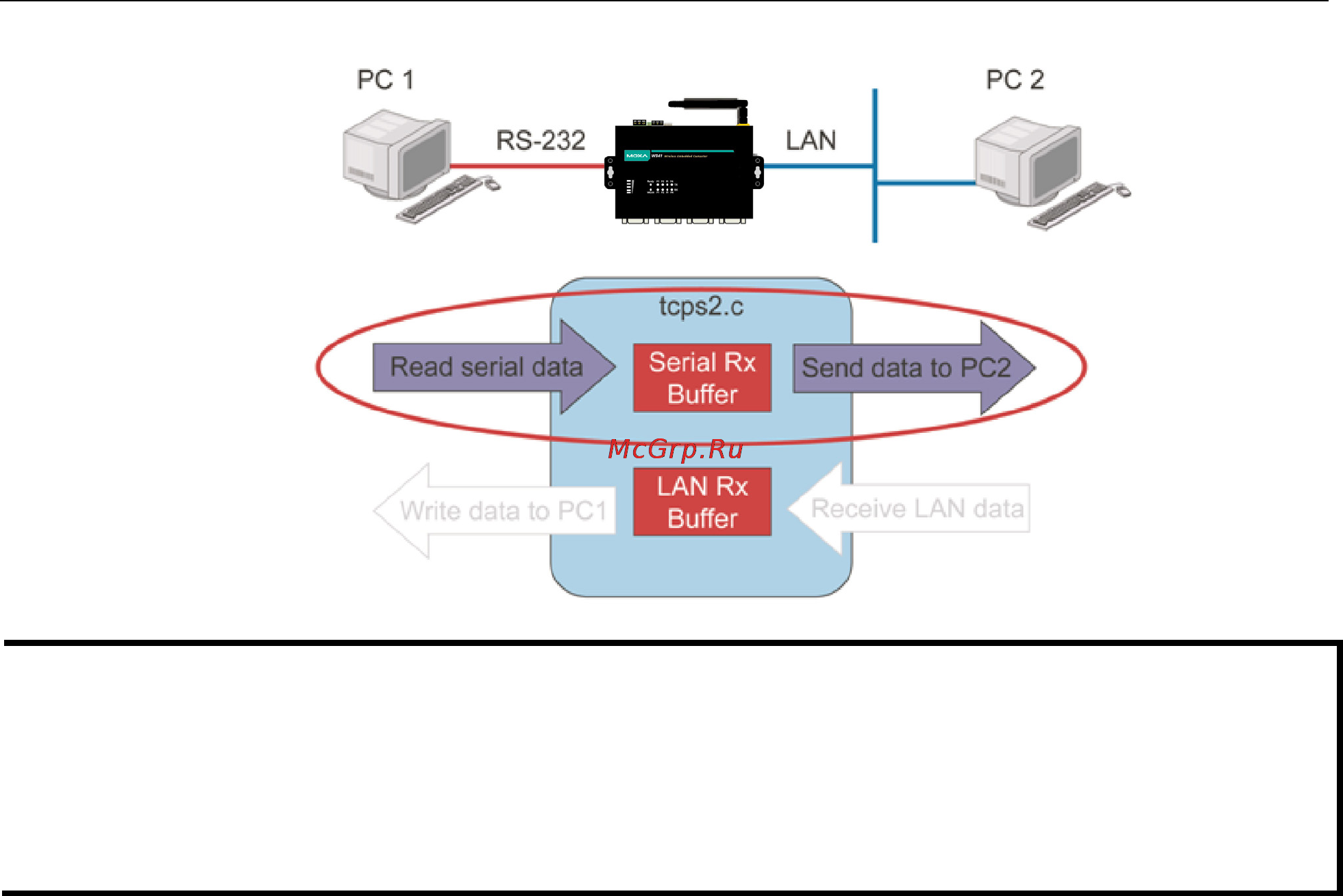

The tcps2.c application is a simple example designed to give users a basic understanding of the concepts
involved in combining Ethernet communication and serial port communication. However, the example program
has some limitations that make it unsuitable for real
-life applications.
1.
The serial port is in canonical mode and block mode, making it impossible to s
end data from the Ethernet
side to the serial side (i.e., from PC 2 to PC 1 in the above example).
2.
The Ethernet side will not accept multiple connections.
