W321/341 Linux
-13

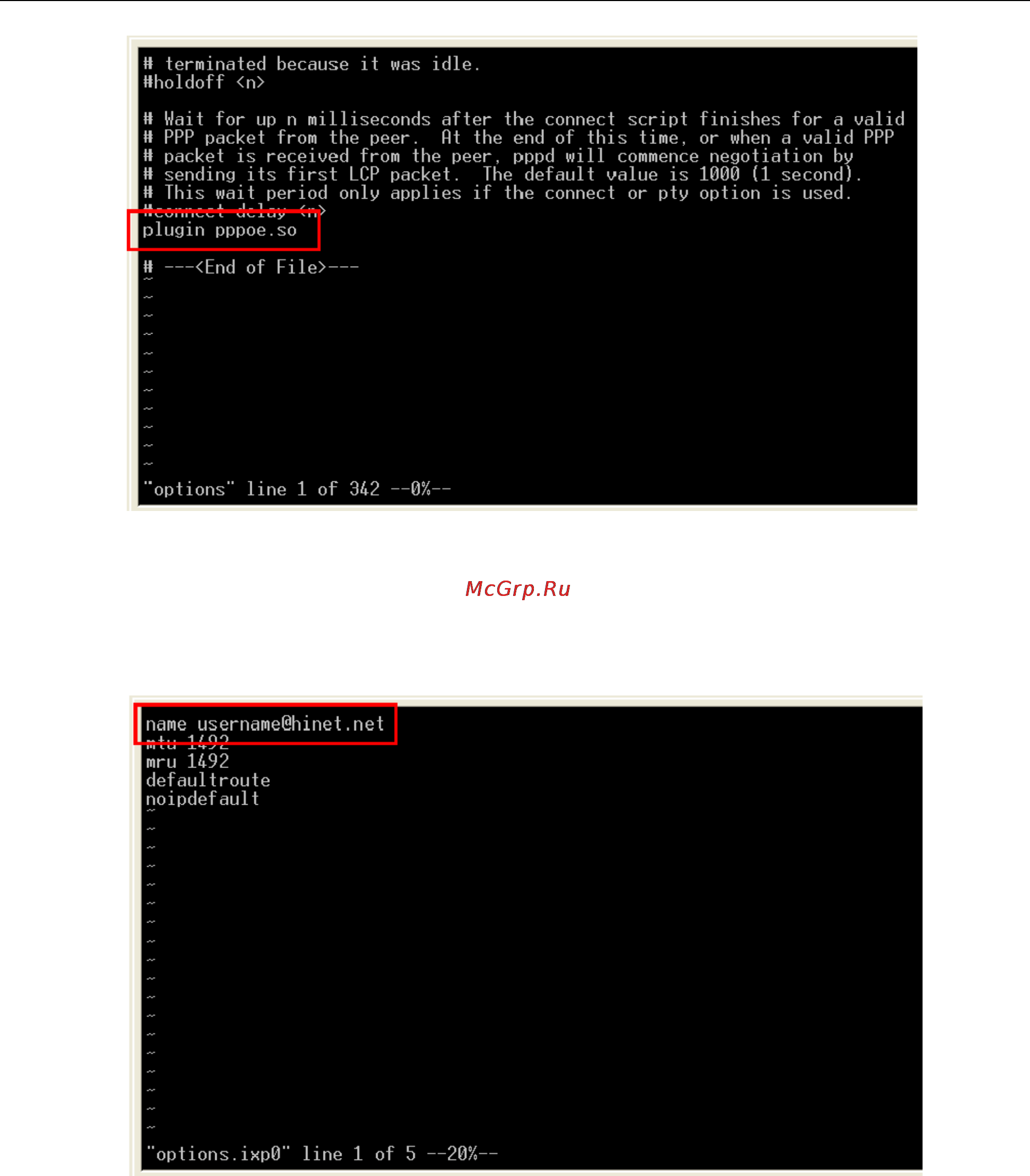

6. Add one of two files: /etc/ppp/options.eth0 or /etc/ppp/options.eth1. The choice depends on which
LAN is connected to the ADSL modem. If you use LAN1 to connect to the ADSL modem, then
add /etc/ppp/options.eth0. If you use LAN2 to connect to the ADSL modem, then
add /etc/ppp/options.eth1. The file context is shown below:
Type your username (the one you set in the /etc/ppp/pap-secrets and /etc/ppp/chap-secrets files)
after the “name” option. You may add other options as desired.
7. Set up DNS
If you are using DNS servers supplied by your ISP, edit the file
/etc/resolv.conf by adding the following lines of code:
nameserver ip_addr_of_first_dns_server
nameserver ip_addr_of_second_dns_server
For example:
nameserver 168..95.1.1
nameserver 139.175.10.20
8. Use the following command to create a pppoe connection:
pppd eth0
