W321/341 Linux
-4

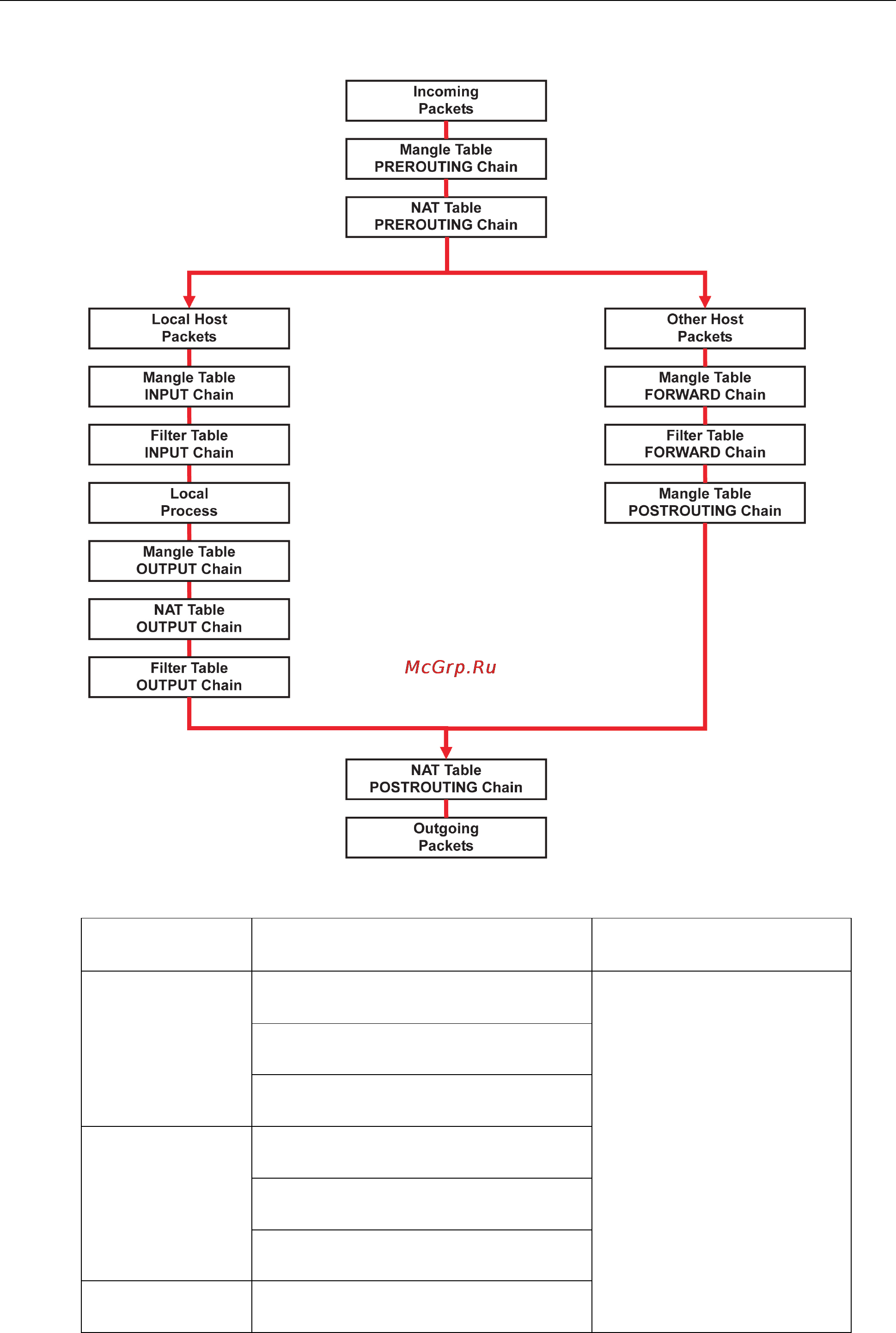

The following figure shows the IPTABLES hierarchy.
Table Chain Rule
NAT
Network translation
translation)
PREROUTING
Types of rule
Policy
Self-defined
Targets of rule
ACCEPT
DROP
REJECT
LOG
SNAT
DNAT
MASQUERADE
…
POSTROUTING
OUTPUT
Filter (Default)
(Packet filtering)
INPUT
OUTPUT
FORWARD
Mangle
(Packet header
PREROUTING
