14
The image on the right pertains to the PIP image
and has no sound. TV image and PIP image are
separated from each other by a colored line (PIP
status).
Adjusting “iPIP”
Switch on the PIP menu with the MENU button.
Mark the “Functionality” bar.
Select “iPIP”.
Hide the menu with the END key.
iPIP function:
In iPIP the presently displayed TV image becomes
the PIP image. For the TV image, select another
channel and retain the PIP image.
In iPIP, the PIP status is orange-colored.
Show/hide PIP picture
Also read the info text; press the INFO key.
The PIP image changes back into TV image,
when you switch off PIP.
Mark “Type” in the PIP menu.
Select the symbol for Split
Screen.
Hide PIP menu
Size of the PIP image
Mark “Size” in the PIP menu.
Select “Large” or “Small”.
Split Screen
Changing the channel of the TV image
The PIP status must be white.
If it is not, press the green
button.
Then select the station as
normal.
PIP channel scan
The PIP status must be green.
If it is not, press the green
button.
Start the PIP scan with the blue
button. The PIP status turns blue.
The PIP channel now changes automatically.
Stop the station scan with the blue button. The
PIP status turns green again.
Interchanging PIP image/TV image
The PIP status must be green.
If it is not, press the green
button.
Interchange the pictures with
the yellow button.
Position of the PIP image
The PIP status must be green.
Call the PIP menu with the
MENU button.
Mark “Position”.
Select a symbol for the
position.
Hide PIP menu
If the PIP status is green, you can select the PIP
channel:
Channel up/down ordirect
PIP image as static image
The PIP status must be green.
If it is not, press the green
button.
Then press the red button;
the PIP image becomes a
static image.
Press the red button again
for a moving image.

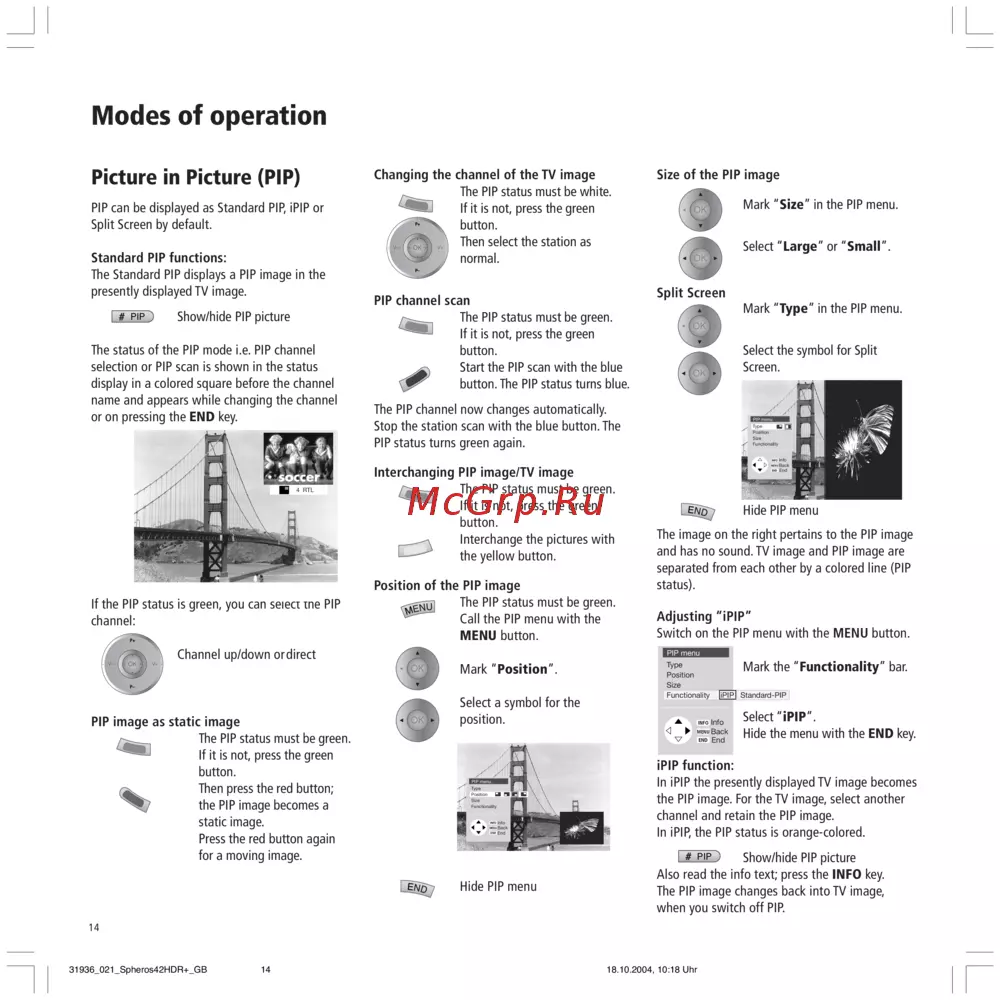

Picture in Picture (PIP)
PIP can be displayed as Standard PIP, iPIP or
Split Screen by default.
Standard PIP functions:
The Standard PIP displays a PIP image in the
presently displayed TV image.
Show/hide PIP picture
The status of the PIP mode i.e. PIP channel
selection or PIP scan is shown in the status
display in a colored square before the channel
name and appears while changing the channel
or on pressing the END key.
Modes of operation
PIP menu
Back
Info
End
Type
Position
Size
Functionality iPIP Standard-PIP
INFO
MENU
END
PIP
PIP
P+
OK
P–
V— V+
P+
OK
P–
V— V+
4 RTL
PIP menu
Back
Info
End
Type
Position
Size
Functionality
INFO
MENU
END
PIP menu
Back
Info
End
Type
Position
Size
Functionality
INFO
MENU
END
OK
OK
OK
OK
OK
OK
31936_021_Spheros42HDR+_GB 18.10.2004, 10:18 Uhr14
