20

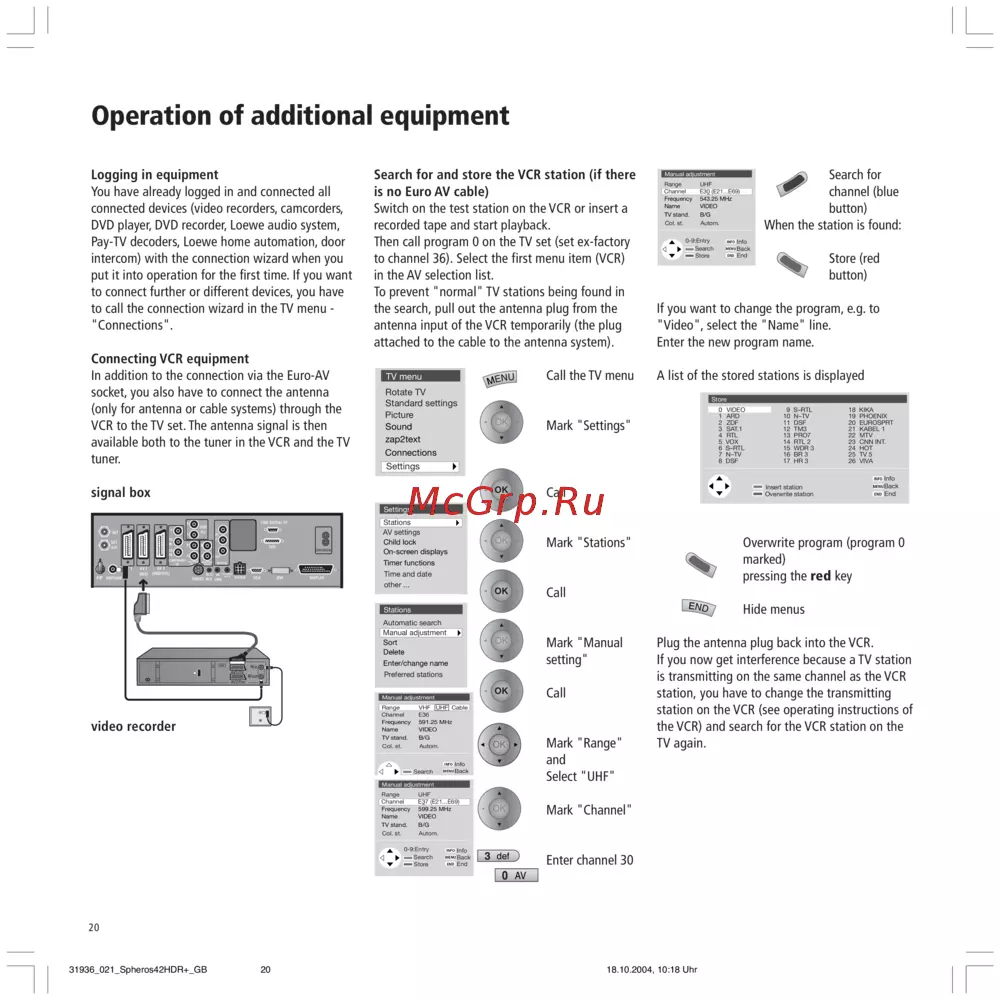

Search for and store the VCR station (if there
is no Euro AV cable)
Switch on the test station on the VCR or insert a
recorded tape and start playback.
Then call program 0 on the TV set (set ex-factory
to channel 36). Select the first menu item (VCR)
in the AV selection list.
To prevent "normal" TV stations being found in
the search, pull out the antenna plug from the
antenna input of the VCR temporarily (the plug
attached to the cable to the antenna system).
Call the TV menu
Mark "Settings"
Call
Mark "Stations"
Call
Mark "Manual
setting"
Call
Mark "Range"
and
Select "UHF"
Mark "Channel"
Enter channel 30
Search for
channel (blue
button)
When the station is found:
Store (red
button)
If you want to change the program, e.g. to
"Video", select the "Name" line.
Enter the new program name.
A list of the stored stations is displayed
Overwrite program (program 0
marked)
pressing the red key
Hide menus
Plug the antenna plug back into the VCR.
If you now get interference because a TV station
is transmitting on the same channel as the VCR
station, you have to change the transmitting
station on the VCR (see operating instructions of
the VCR) and search for the VCR station on the
TV again.
Logging in equipment
You have already logged in and connected all
connected devices (video recorders, camcorders,
DVD player, DVD recorder, Loewe audio system,
Pay-TV decoders, Loewe home automation, door
intercom) with the connection wizard when you
put it into operation for the first time. If you want
to connect further or different devices, you have
to call the connection wizard in the TV menu -
"Connections".

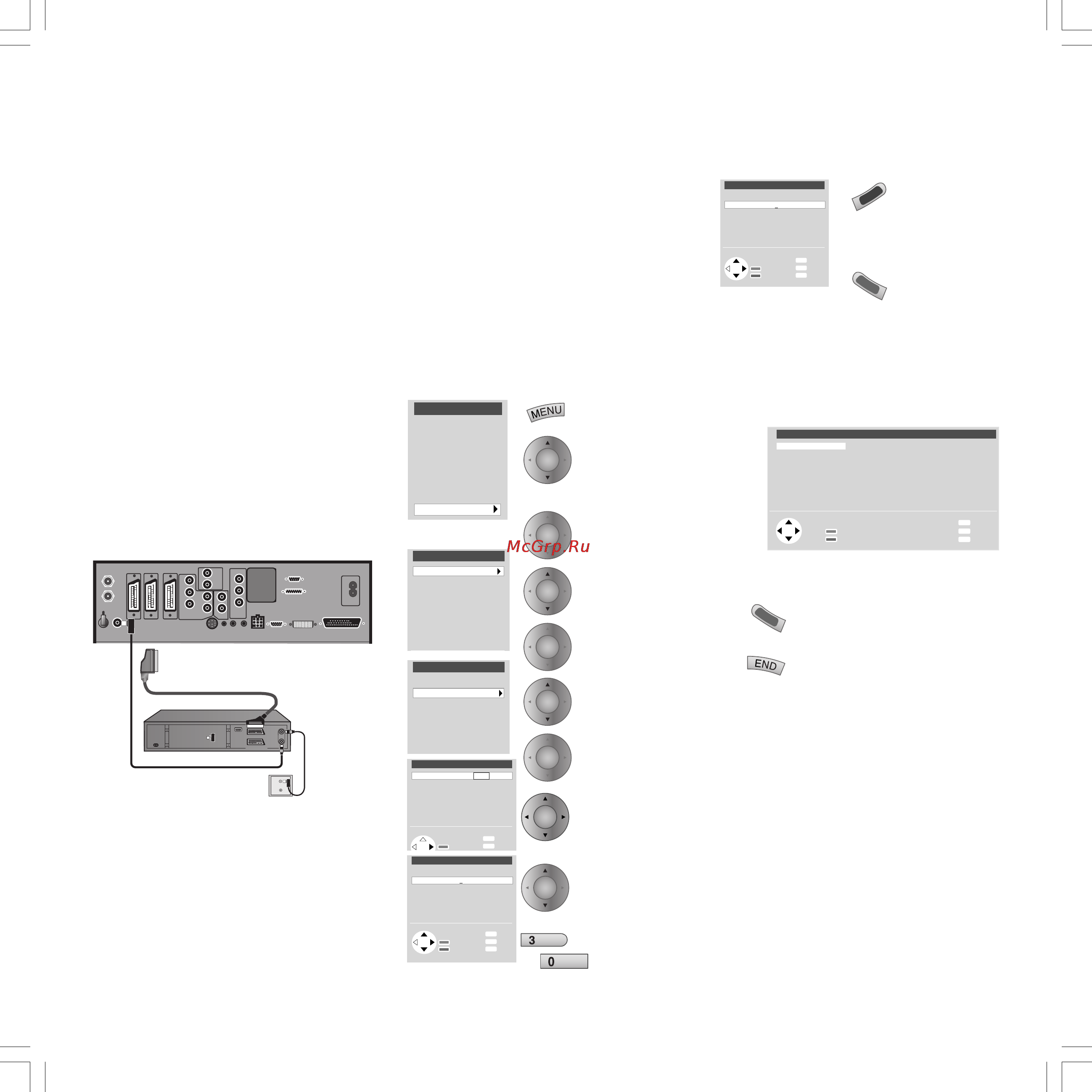

Connecting VCR equipment
In addition to the connection via the Euro-AV
socket, you also have to connect the antenna
(only for antenna or cable systems) through the
VCR to the TV set. The antenna signal is then
available both to the tuner in the VCR and the TV
tuner.
signal box
video recorder
Manual adjustment
Frequency 543.25 MHz
Name VIDEO
TV stand. B/G
Back
Info
End
Channel E30 (E21...E69)
Col. st. Autom.
Range UHF
Search
Store
0-9:Entry
INFO
MENU
END
Store
0 VIDEO
1 ARD
2 ZDF
3 SAT.1
4 RTL
5 VOX
6 S–RTL
7 N–TV
8 DSF
9 S–RTL
10 N–TV
11 DSF
12 TM3
13 PRO7
14 RTL 2
15 WDR 3
16 BR 3
17 HR 3
18 KIKA
19 PHOENIX
20 EUROSPRT
21 KABEL 1
22 MTV
23 CNN INT.
24 HOT
25 TV 5
26 VIVA
Back
Info
End
Overwrite station
Insert station
INFO
MENU
END
Operation of additional equipment
Stations
Automatic search
Sort
Delete
Enter/change name
Manual adjustment
Preferred stations
Settings
Child lock
On-screen displays
Timer functions
AV settings
Time and date
other ...
Stations
Manual adjustment
Frequency 591.25 MHz
Name VIDEO
TV stand. B/G
Back
Info
Channel E36
Col. st. Autom.
Range VHF UHF Cable
Search
INFO
MENU
Manual adjustment
Frequency 599.25 MHz
Name VIDEO
TV stand. B/G
Channel E37 (E21...E69)
Col. st. Autom.
Range UHF
Back
Info
End
Search
Store
0-9:Entry
INFO
MENU
END
def
AV
SYSTEM
RC5/
RC6
IR-
LINK
SUB
SERVICE
VGA
DISPLAY
PIP
VHF/UHF
AV 3
(RGB/YUV)
AV 2
(RGB)
AUDIO
IN 1
DVI
AV 1
COM DIGITAL TV
SAT
A/D
SAT
COMPONENT
IN
TVO
C
R
L
S
U
R
1
IN
2
DIGITAL
AUDIO
IN 3
R
L
R
L
R
L
AUDIO
OUT
230V/50/60 Hz
OUT
AUDIO
IN 2
Y
CR/
PR
CB/
PB
➜
RFin
AV1/TV
AV2/Dec
RFout
L
TV menu
Standard settings
Sound
zap2text
Connections
Settings
Rotate TV
OK
OK
OK
OK
OK
OK
OK
OK
31936_021_Spheros42HDR+_GB 18.10.2004, 10:18 Uhr20
