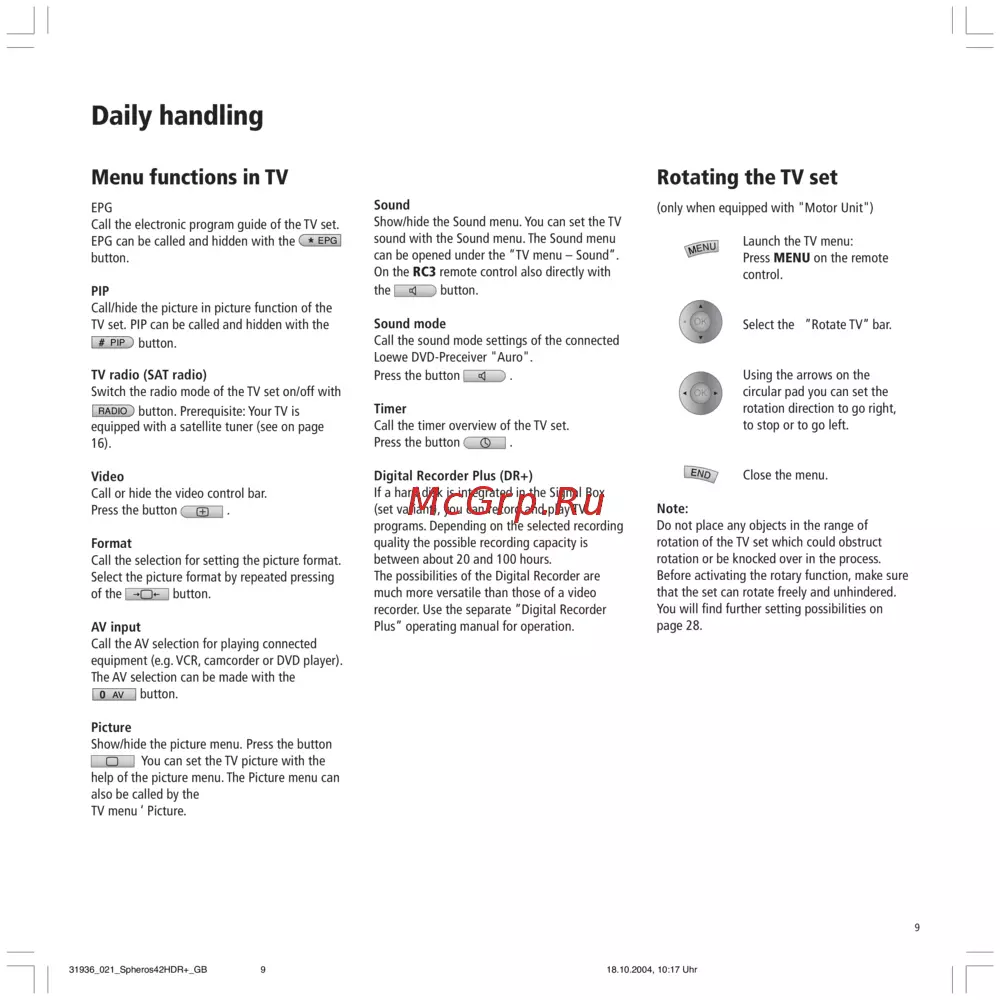

Loewe Spheros R 42 [9/42] Rotating the tv set
![Loewe Spheros R 42 [9/42] Rotating the tv set](/views2/1020449/page9/bg9.png)
9
Rotating the TV set
(only when equipped with "Motor Unit")
Launch the TV menu:
Press MENU on the remote
control.
Select the ”Rotate TV” bar.
Using the arrows on the
circular pad you can set the
rotation direction to go right,
to stop or to go left.
Close the menu.
Note:
Do not place any objects in the range of
rotation of the TV set which could obstruct
rotation or be knocked over in the process.
Before activating the rotary function, make sure
that the set can rotate freely and unhindered.
You will find further setting possibilities on
page 28.
Daily handling
Menu functions in TV
EPG
Call the electronic program guide of the TV set.
EPG can be called and hidden with the
EPG
button.
PIP
Call/hide the picture in picture function of the
TV set. PIP can be called and hidden with the
PIP
button.
TV radio (SAT radio)
Switch the radio mode of the TV set on/off with
RADIO
button. Prerequisite: Your TV is
equipped with a satellite tuner (see on page
16).
Video
Call or hide the video control bar.
Press the button
.
Format
Call the selection for setting the picture format.
Select the picture format by repeated pressing
of the
button.
AV input
Call the AV selection for playing connected
equipment (e.g. VCR, camcorder or DVD player).
The AV selection can be made with the
AV
button.
Show/hide the picture menu. Press the button
You can set the TV picture with the
help of the picture menu. The Picture menu can
also be called by the
TV menu ‘ Picture.
Sound
Show/hide the Sound menu. You can set the TV
sound with the Sound menu. The Sound menu
can be opened under the ”TV menu – Sound”.
On the RC3 remote control also directly with
the
button.
Sound mode
Call the sound mode settings of the connected
Loewe DVD-Preceiver "Auro".
Press the button
.
Timer
Call the timer overview of the TV set.
Press the button
.
Digital Recorder Plus (DR+)
If a hard disk is integrated in the Signal Box
(set variant), you can record and play TV
programs. Depending on the selected recording
quality the possible recording capacity is
between about 20 and 100 hours.
The possibilities of the Digital Recorder are
much more versatile than those of a video
recorder. Use the separate ”Digital Recorder
Plus” operating manual for operation.
OK
OK
31936_021_Spheros42HDR+_GB 18.10.2004, 10:17 Uhr9
