18

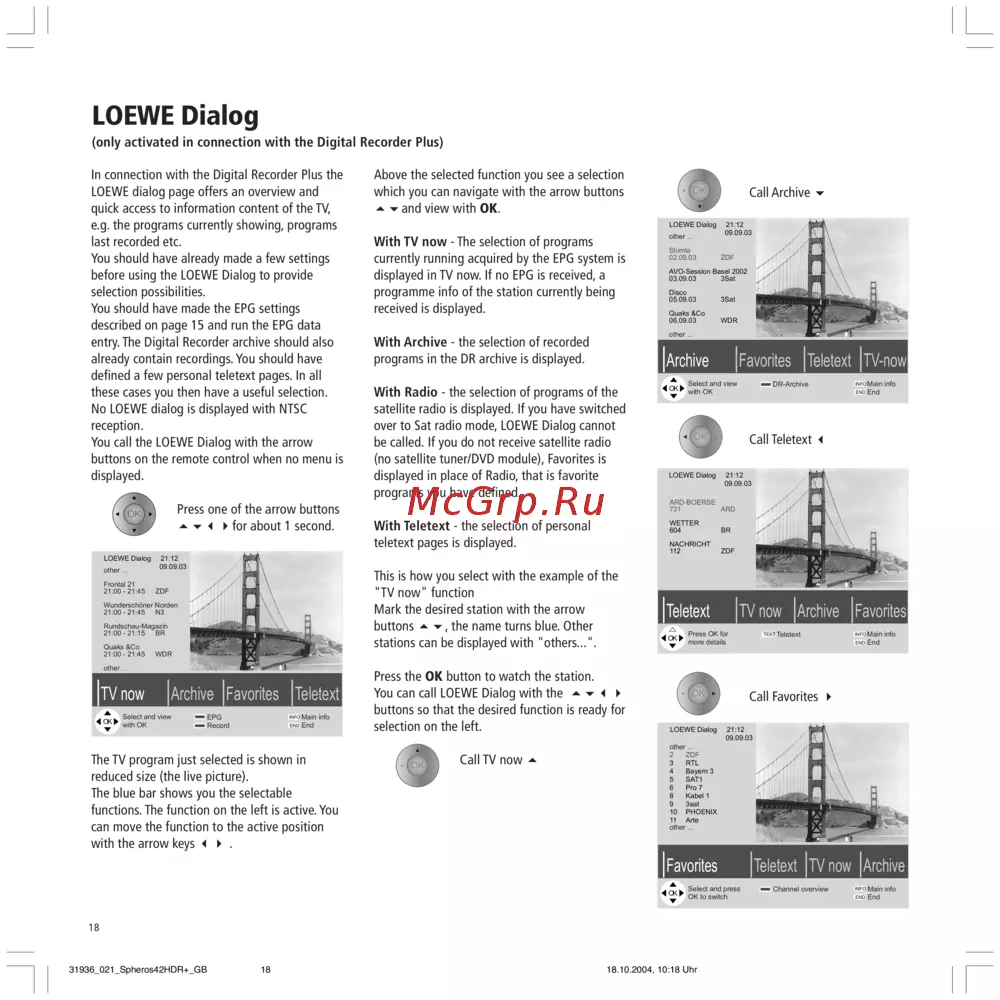

In connection with the Digital Recorder Plus the
LOEWE dialog page offers an overview and
quick access to information content of the TV,
e.g. the programs currently showing, programs
last recorded etc.
You should have already made a few settings
before using the LOEWE Dialog to provide
selection possibilities.
You should have made the EPG settings
described on page 15 and run the EPG data
entry. The Digital Recorder archive should also
already contain recordings. You should have
defined a few personal teletext pages. In all
these cases you then have a useful selection.
No LOEWE dialog is displayed with NTSC
reception.
You call the LOEWE Dialog with the arrow
buttons on the remote control when no menu is
displayed.
Press one of the arrow buttons
for about 1 second.
The TV program just selected is shown in
reduced size (the live picture).
The blue bar shows you the selectable
functions. The function on the left is active. You
can move the function to the active position
with the arrow keys .
Above the selected function you see a selection
which you can navigate with the arrow buttons
and view with OK.
With TV now - The selection of programs
currently running acquired by the EPG system is
displayed in TV now. If no EPG is received, a
programme info of the station currently being
received is displayed.
With Archive - the selection of recorded
programs in the DR archive is displayed.
With Radio - the selection of programs of the
satellite radio is displayed. If you have switched
over to Sat radio mode, LOEWE Dialog cannot
be called. If you do not receive satellite radio
(no satellite tuner/DVD module), Favorites is
displayed in place of Radio, that is favorite
programs you have defined.
With Teletext - the selection of personal
teletext pages is displayed.
This is how you select with the example of the
"TV now" function
Mark the desired station with the arrow
buttons , the name turns blue. Other
stations can be displayed with "others...".
Press the OK button to watch the station.
You can call LOEWE Dialog with the
buttons so that the desired function is ready for
selection on the left.
Call TV now
LOEWE Dialog
(only activated in connection with the Digital Recorder Plus)
Call Archive
Call Teletext
Call Favorites
LOEWE Dialog 21:12
09.09.03
other ...
Frontal 21
21:00 - 21:45 ZDF
Wunderschöner Norden
21:00 - 21:45 N3
Rundschau-Magazin
21:00 - 21:15 BR
Quaks &Co
21:00 - 21:45 WDR
other ...
Select and view
with OK
Main info
End
EPG
Record
|TV now |Archive |Favorites |Teletext
OK
INFO
END
other ...
Shimla
02.09.03 ZDF
AVO-Session Basel 2002
03.09.03 3Sat
Disco
05.09.03 3Sat
Quaks &Co
06.09.03 WDR
other ...
Select and view
with OK
Main info
End
DR-Archive
|
Archive
|
Favorites
|
Teletext
|
TV-now
OK
INFO
END
LOEWE Dialog 21:12
09.09.03
other ...
2 ZDF
3 RTL
4 Bayern 3
5 SAT1
6 Pro 7
8 Kabel 1
9 3sat
10 PHOENIX
11 Arte
other ...
Select and press
OK to switch
Main info
End
Channel overview
|
Favorites
|
Teletext
|
TV now
|
Archive
OK
INFO
END
LOEWE Dialog 21:12
09.09.03
ARD-BOERSE
731 ARD
WETTER
604 BR
NACHRICHT
112 ZDF
Press OK for
more details
Main info
End
Teletext
|Teletext |TV now |Archive |Favorites
OK
INFOTEXT
END
LOEWE Dialog 21:12
09.09.03
OK
OK
OK
OK
OK
31936_021_Spheros42HDR+_GB 18.10.2004, 10:18 Uhr18
