Loewe Spheros R 42 [30/42] What to do when
![Loewe Spheros R 42 [30/42] What to do when](/views2/1020449/page30/bg1e.png)
30
Various menu items cannot be called (shown in
gray) or the menus for the EPG and teletext
modes of operation cannot be called
Record and Timer are not displayed in the video
menu
"Connections" for example cannot be called in
the video menu (grayed out)
"Simplified operation" activated in the main
information.
No VCR or DVD recorder logged in and no
digital recorder installed
a) A timer recording is in progress (not with
serial timer recording)
b) You are recording from the TV set with the
video bar
The child lock is activated. If these menus were
accessible, children could still set the programs.
a) The VCR's Digital Link function is not
activated or not possible
b) Euro-AV cable not connected
c) Video recorder not logged in
a) The device is not logged in in the
"Connections" menu or is connected
differently to shown in the connection
diagram
b) The AV norm is set incorrectly
c) The AV signal is set incorrectly
Deactivate “Simple control” in the Main
Information, press the i-key, select “Select
control level” and call up with OK. Set “Simple
control” to “no”.
Log in VCR in the TV menu - Connections.
a) Wait until the timer recording has ended or
clear the timer.
b) Stop recording.
Deactivate program-related child lock: Switch
off child lock or enter PIN in the TV menu -
Settings.
a) Activate Digital Link in the VCR (see
operating instructions of the VCR)
b) Connect the Euro-AV cable
c) Log in the VCR
a) Compare the connection diagram with the
actual installation in the "Main information"
under "Connections" and connect as shown if
necessary.
b) Set the correct norm.
c) Set the correct AV signal.
If "Automatic" is set for AV norm or AV signal,
this can lead to wrong detection in the case of
non-standardized signals. In this case the norm
and signal must be set according to the
operating instructions of the external device.
In the TV menu, the menu item “Programs” is
missing and in the Main Information the item
“Automatic channel search” and connections
Control of the Loewe VCR with the video
control bar and the timer does not work or
does not work properly
General problems with connecting external
devices through an AV input

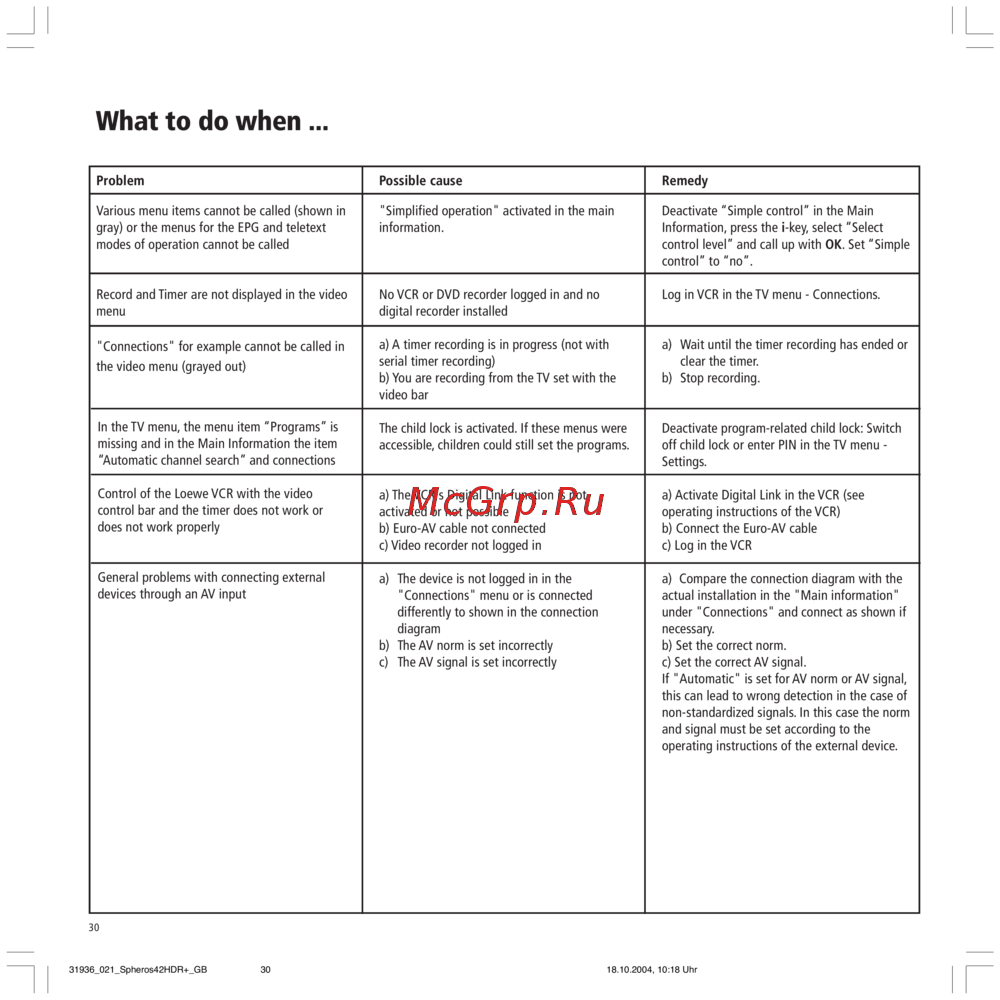

What to do when ...
RemedyPossible causeProblem
What to do when ...
RemedyPossible causeProblem
31936_021_Spheros42HDR+_GB 18.10.2004, 10:18 Uhr30
