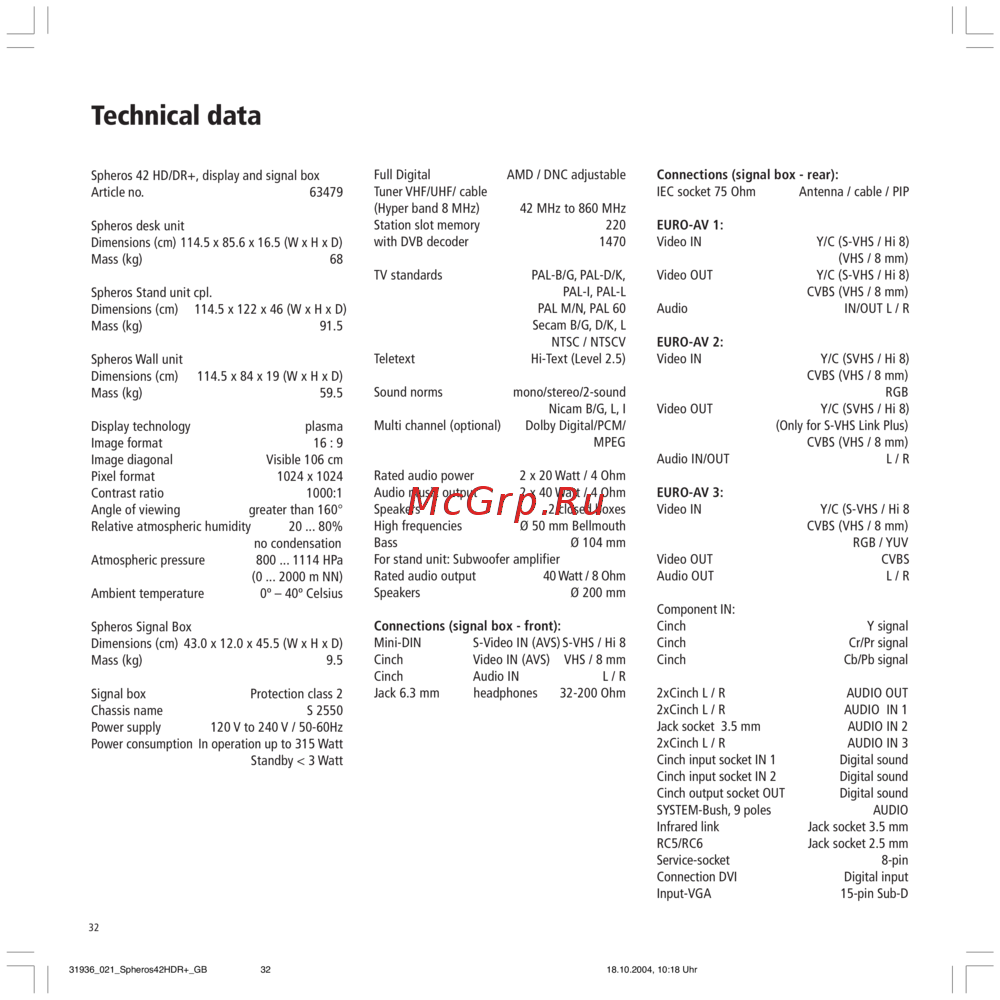

Loewe Spheros R 42 [32/42] Technical data
![Loewe Spheros R 42 [32/42] Technical data](/views2/1020449/page32/bg20.png)
32
Technical data
Spheros 42 HD/DR+, display and signal box
Article no. 63479
Spheros desk unit
Dimensions (cm) 114.5 x 85.6 x 16.5 (W x H x D)
Mass (kg) 68
Spheros Stand unit cpl.
Dimensions (cm) 114.5 x 122 x 46 (W x H x D)
Mass (kg) 91.5
Spheros Wall unit
Dimensions (cm) 114.5 x 84 x 19 (W x H x D)
Mass (kg) 59.5
Display technology plasma
Image format 16 : 9
Image diagonal Visible 106 cm
Pixel format 1024 x 1024
Contrast ratio 1000:1
Angle of viewing greater than 160°
Relative atmospheric humidity 20 ... 80%
no condensation
Atmospheric pressure 800 ... 1114 HPa
(0 ... 2000 m NN)
Ambient temperature 0º – 40º Celsius
Spheros Signal Box
Dimensions (cm) 43.0 x 12.0 x 45.5 (W x H x D)
Mass (kg) 9.5
Signal box Protection class 2
Chassis name S 2550
Power supply 120 V to 240 V / 50-60Hz
Power consumption In operation up to
315 Watt
Standby < 3 Watt
Full Digital AMD / DNC adjustable
Tuner VHF/UHF/ cable
(Hyper band 8 MHz) 42 MHz to 860 MHz
Station slot memory 220
with DVB decoder 1470
TV standards PAL-B/G, PAL-D/K,
PAL-I, PAL-L
PAL M/N, PAL 60
Secam B/G, D/K, L
NTSC / NTSCV
Teletext Hi-Text (Level 2.5)
Sound norms mono/stereo/2-sound
Nicam B/G, L, I
Multi channel (optional) Dolby Digital/PCM/
MPEG
Rated audio power 2 x 20 Watt / 4 Ohm
Audio music output 2 x 40 Watt / 4 Ohm
Speakers 2 closed boxes
High frequencies Ø 50 mm Bellmouth
Bass Ø 104 mm
For stand unit: Subwoofer amplifier
Rated audio output 40 Watt / 8 Ohm
Speakers Ø 200 mm
Connections (signal box - front):
Mini-DIN S-Video IN (AVS) S-VHS / Hi 8
Cinch Video IN (AVS) VHS / 8 mm
Cinch Audio IN L / R
Jack 6.3 mm headphones 32-200 Ohm
Connections (signal box - rear):
IEC socket 75 Ohm Antenna / cable / PIP
EURO-AV 1:
Video IN Y/C (S-VHS / Hi 8)
(VHS / 8 mm)
Video OUT Y/C (S-VHS / Hi 8)
CVBS (VHS / 8 mm)
Audio IN/OUT L / R
EURO-AV 2:
Video IN Y/C (SVHS / Hi 8)
CVBS (VHS / 8 mm)
RGB
Video OUT Y/C (SVHS / Hi 8)
(Only for S-VHS Link Plus)
CVBS (VHS / 8 mm)
Audio IN/OUT L / R
EURO-AV 3:
Video IN Y/C (S-VHS / Hi 8
CVBS (VHS / 8 mm)
RGB / YUV
Video OUT CVBS
Audio OUT L / R
Component IN:
Cinch Y signal
Cinch Cr/Pr signal
Cinch Cb/Pb signal
2xCinch L / R AUDIO OUT
2xCinch L / R AUDIO IN 1
Jack socket 3.5 mm AUDIO IN 2
2xCinch L / R AUDIO IN 3
Cinch input socket IN 1 Digital sound
Cinch input socket IN 2 Digital sound
Cinch output socket OUT Digital sound
SYSTEM-Bush, 9 poles AUDIO
Infrared link Jack socket 3.5 mm
RC5/RC6 Jack socket 2.5 mm
Service-socket 8-pin
Connection DVI Digital input
Input-VGA 15-pin Sub-D
31936_021_Spheros42HDR+_GB 18.10.2004, 10:18 Uhr32
