Loewe Spheros R 42 [8/42] Connection
![Loewe Spheros R 42 [8/42] Connection](/views2/1020449/page8/bg8.png)
8

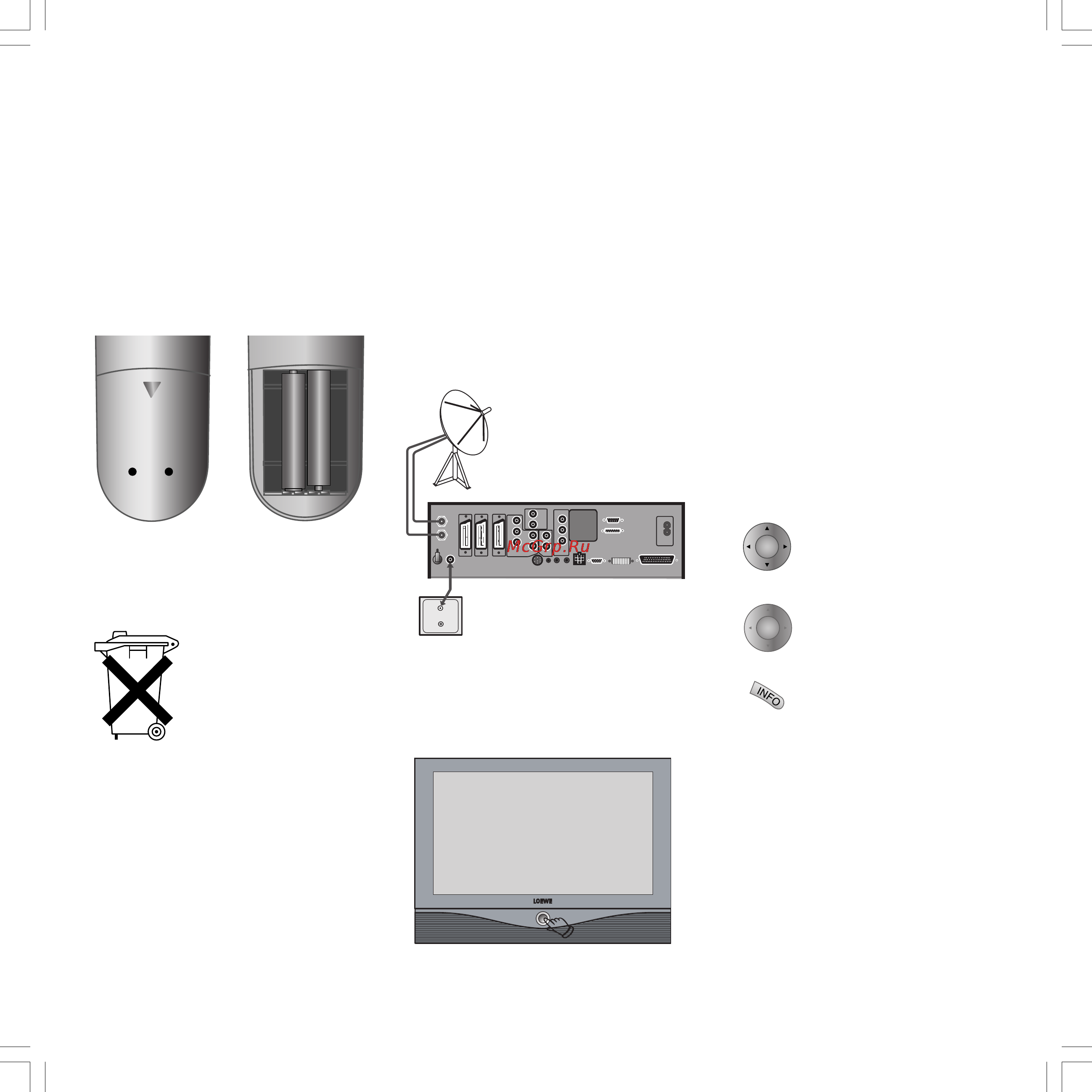

Batteries
To insert or change the batteries, press the
point marked by an embossed arrow. Push the
cover of the battery compartment down and
remove it. Insert the batteries of the alkaline
manganese type LR 03 (AAA) with the correct
polarity (+/-).
Initial installation
Then push the cover back on.
Note on disposal of batteries:
The original batteries do not
contain any pollutants such as
cadmium, lead and mercury.
Used batteries do not belong in
the domestic waste. They must
be taken to the appropriate
collection points according to
the national laws. Ask your
dealer.
Connection
Mains
Connect the TV set to a 230V/50-60 Hertz
outlet.
Antenna
Connect your antenna or cable system to the
antenna socket to the UHF/VHF antenna socket
on the back of the signal box.
When equipped with a satellite tuner, connect
the satellite antenna to the SAT sockets.
SYSTEM
RC5/
RC6
IR-
LINK
SUB
SERVICE
VGA
DISPLAY
PIP
UHF/VHF
AV 3
(RGB/YUV)
AV 2
(RGB)
AUDIO
IN 1
DVI
AV 1
COM DIGITAL TV
SAT
A/D
SAT
COMPONENT
IN
TVO
C
R
L
S
U
R
1
IN
2
DIGITAL
AUDIO
IN 3
R
L
R
L
R
L
AUDIO
OUT
230V~
50/60 Hz
OUT
AUDIO
IN 2
Y
CR/
PR
CB/
PB
.
+
+
Switching on
Press the On/Off button so that it is pressed in.
Initial installation
Automatic programming of the TV set is started
the first time you switch it on. Follow the
menus.
First you have to select the menu language for
your set. Then you specify which antenna you
have connected to your TV and in what country
you are using it. Then you start the station
search. The TV set searches for, stores and sorts
all the stations which your antenna system
receives. You then see a list of the stored
stations in which you can mark your favorites.
Finally log in your video recorders, decoders,
Loewe audio system and Home Automation
with the connection wizard and connect these
to the TV set according to the illustrated
connection plan.
Select the settings with the
arrows on the ring ...
... confirm the settings with
OK. You then move on to the
next menu ...
... press this button if you want
information about the settings.
You can repeat initial installation at any time,
e.g. after moving house. Call the index in the
main information (i button). Then select the
item "Repeat initial installation". Then start
"Initial installation" with OK.
OK
OK
31936_021_Spheros42HDR+_GB 18.10.2004, 10:17 Uhr8
