Loewe Spheros R 42 [28/42] Viewing angle range of rotation
![Loewe Spheros R 42 [28/42] Viewing angle range of rotation](/views2/1020449/page28/bg1c.png)
28
Function switch off position on/ off
You determine whether the TV set moves back
to the determined switch off position when
switched off with the remote control (the set
cannot be operated during this time, approx.
35 seconds).
Press MENU on the remote
control.
Highlight the ”Settings” bar.
Press OK, then to ”other...”
Highlight the ”Rotate TV”
bar, press OK.
If you select "yes" in the line
"Activate switch off
position" the TV set will turn
to the set position when
switching off with the remote
control.
The TV does not rotate when
switching off if "no" is
selected under "Activate
switch off position".
The TV set stays at the last
set position when it is
switched off.
Press END to exit the menu.
If the screen is mounted on a "Motor Unit"
you can rotate it with the remote control to
suit your sitting position.
Setting the rotation area (a maximum of
+/- 40 degrees)
With this menu, you can determine the
maximum rotation to the left and right.
Press MENU on the remote
control.
Highlight the ”Settings” bar.
Press OK, then to ”other...”
Highlight the ”Rotate TV”
bar, press OK.
Select line "Basic
adjustment".
Press the OK button.
You set the desired maximum
range of rotation to the right
by pressing the ring (right).
Rotation stops when you
release the ring.
The setting is saved by
pressing OK .
Then set the desired
maximum rotation to the left
by pressing the ring (left).
Confirm with OK.
Press END to exit the menu.
Determining the switch off position
Here you determine the position of the screen
(TV set) which is adopted when switching off
providing you have activated this function.
Press MENU on the remote
control.
Highlight the ”Settings” bar.
Press OK, then to ”other...”
Highlight the ”Rotate TV” bar,
press OK.
The menu "Rotate TV“ appears.
Select
Define "Switch-off position".
You set the desired switch off
position to the right or left by
pressing the ring.
You have already determined
the rotation range you can
select.
Rotation stops when you
release the ring.
Save the "set switch-off
position“ with OK .

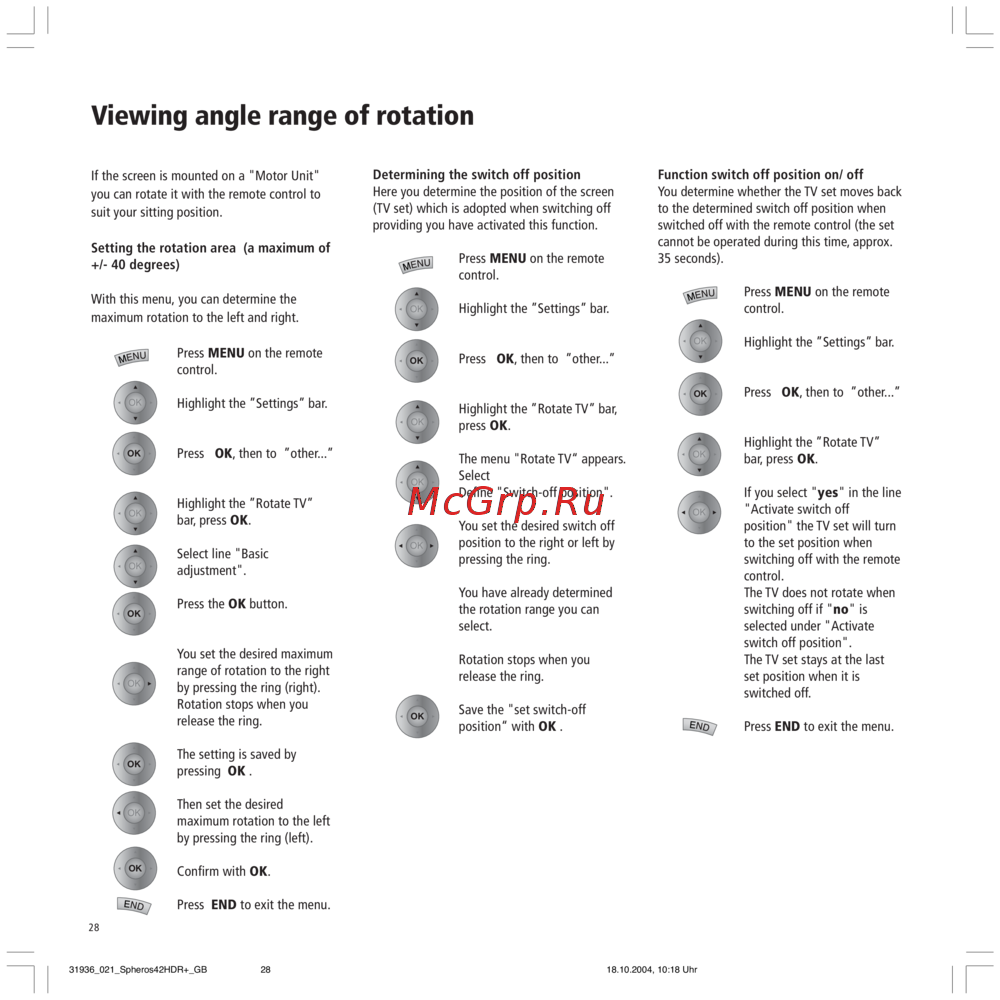

Viewing angle range of rotation
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
31936_021_Spheros42HDR+_GB 18.10.2004, 10:18 Uhr28
