Loewe Spheros R 42 [24/42] Operating additional equipment
![Loewe Spheros R 42 [24/42] Operating additional equipment](/views2/1020449/page24/bg18.png)

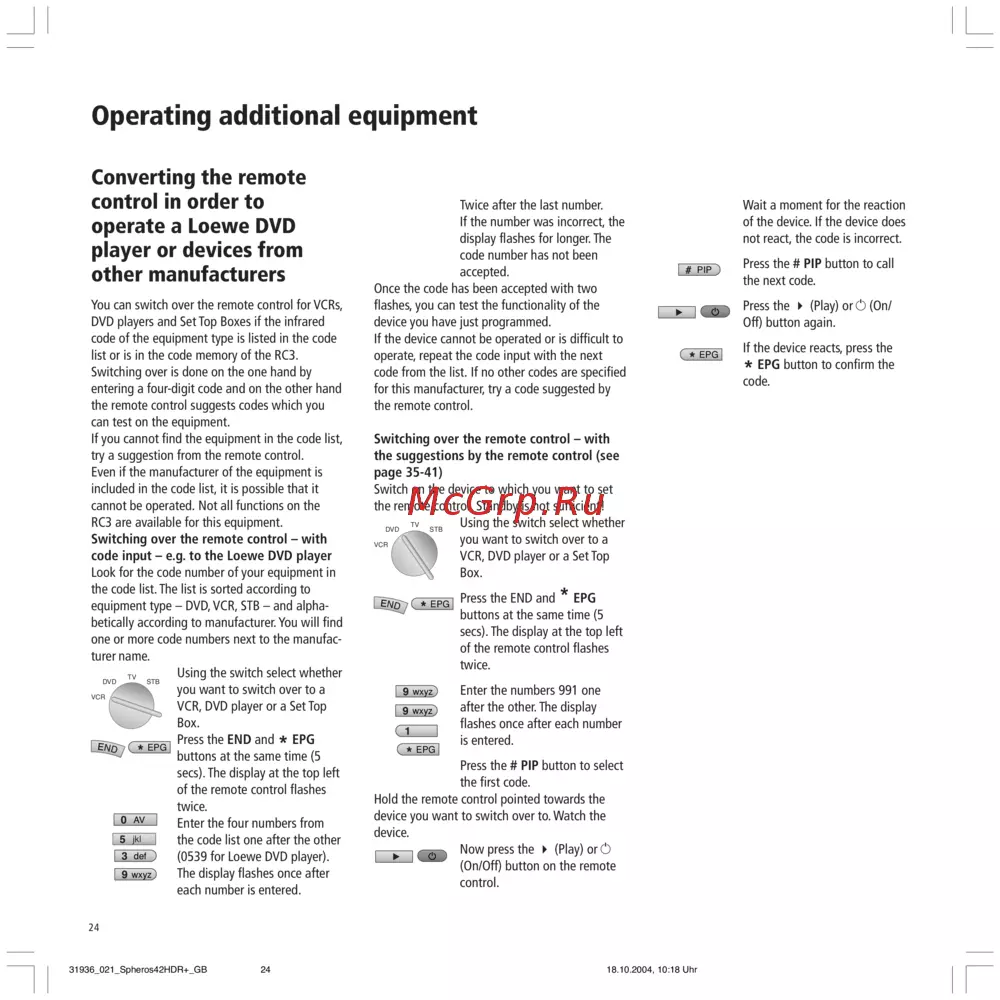

24
Operating additional equipment
Converting the remote
control in order to
operate a Loewe DVD
player or devices from
other manufacturers
You can switch over the remote control for VCRs,
DVD players and Set Top Boxes if the infrared
code of the equipment type is listed in the code
list or is in the code memory of the RC3.
Switching over is done on the one hand by
entering a four-digit code and on the other hand
the remote control suggests codes which you
can test on the equipment.
If you cannot find the equipment in the code list,
try a suggestion from the remote control.
Even if the manufacturer of the equipment is
included in the code list, it is possible that it
cannot be operated. Not all functions on the
RC3 are available for this equipment.
Switching over the remote control – with
code input – e.g. to the Loewe DVD player
Look for the code number of your equipment in
the code list. The list is sorted according to
equipment type – DVD, VCR, STB – and alpha-
betically according to manufacturer. You will find
one or more code numbers next to the manufac-
turer name.
Using the switch select whether
you want to switch over to a
VCR, DVD player or a Set Top
Box.
Press the END and
*
EPG
buttons at the same time (5
secs). The display at the top left
of the remote control flashes
twice.
Enter the four numbers from
the code list one after the other
(0539 for Loewe DVD player).
The display flashes once after
each number is entered.
Twice after the last number.
If the number was incorrect, the
display flashes for longer. The
code number has not been
accepted.
Once the code has been accepted with two
flashes, you can test the functionality of the
device you have just programmed.
If the device cannot be operated or is difficult to
operate, repeat the code input with the next
code from the list. If no other codes are specified
for this manufacturer, try a code suggested by
the remote control.
Switching over the remote control – with
the suggestions by the remote control (see
page 35-41)
Switch on the device to which you want to set
the remote control. Standby is not sufficient!
Using the switch select whether
you want to switch over to a
VCR, DVD player or a Set Top
Box.
Press the END and
* EPG
buttons at the same time (5
secs). The display at the top left
of the remote control flashes
twice.
Enter the numbers 991 one
after the other. The display
flashes once after each number
is entered.
Press the # PIP button to select
the first code.
Hold the remote control pointed towards the
device you want to switch over to. Watch the
device.
Now press the (Play) or O
(On/Off) button on the remote
control.
Wait a moment for the reaction
of the device. If the device does
not react, the code is incorrect.
Press the # PIP button to call
the next code.
Press the (Play) or O (On/
Off) button again.
If the device reacts, press the
*
EPG button to confirm the
code.
TV
DVD STB
VCR
EPG
AV
jkl
def
wxyz
TV
DVD STB
VCR
EPG
wxyz
wxyz
EPG
PIP
EPG
31936_021_Spheros42HDR+_GB 18.10.2004, 10:18 Uhr24
