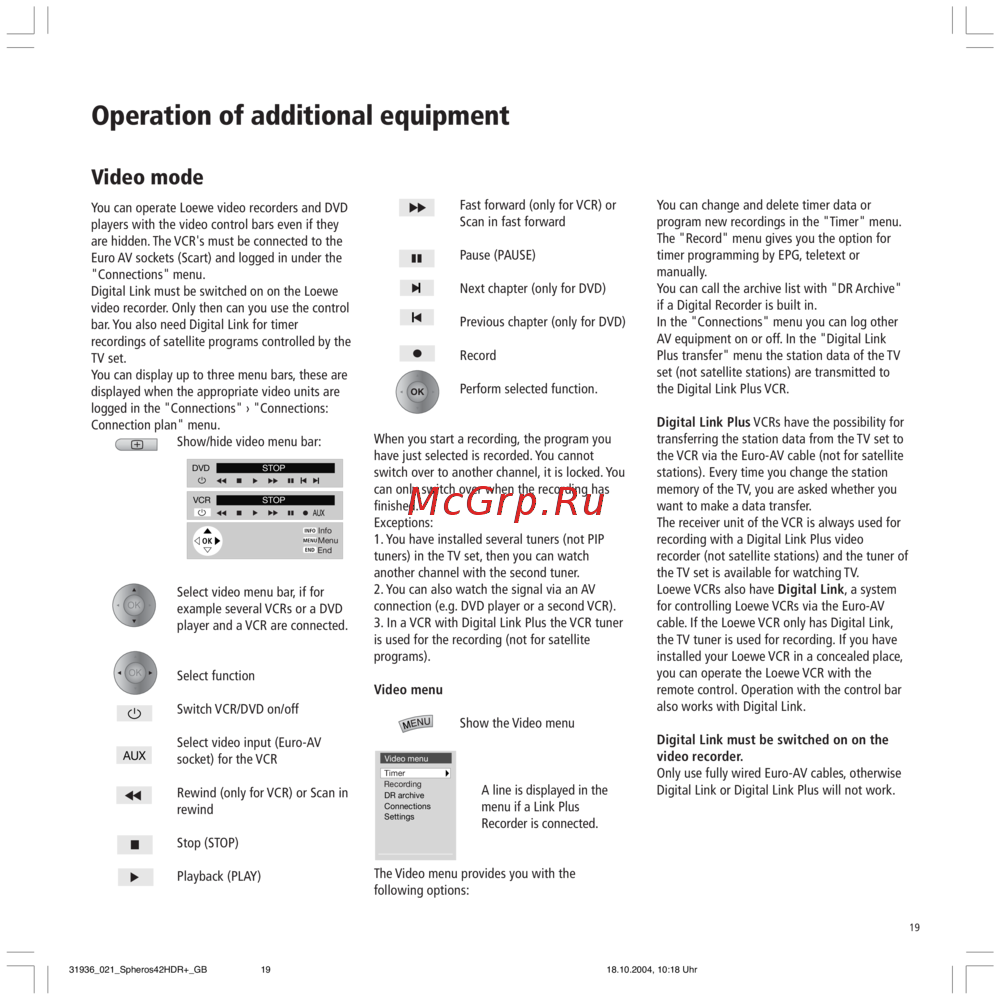

Loewe Spheros R 42 [19/42] Operation of additional equipment
![Loewe Spheros R 42 [19/42] Operation of additional equipment](/views2/1020449/page19/bg13.png)
19
Fast forward (only for VCR) or
Scan in fast forward
Pause (PAUSE)
Next chapter (only for DVD)
Previous chapter (only for DVD)
Record
Perform selected function.
When you start a recording, the program you
have just selected is recorded. You cannot
switch over to another channel, it is locked. You
can only switch over when the recording has
finished.
Exceptions:
1. You have installed several tuners (not PIP
tuners) in the TV set, then you can watch
another channel with the second tuner.
2. You can also watch the signal via an AV
connection (e.g. DVD player or a second VCR).
3. In a VCR with Digital Link Plus the VCR tuner
is used for the recording (not for satellite
programs).
Video menu
Show the Video menu
A line is displayed in the
menu if a Link Plus
Recorder is connected.
The Video menu provides you with the
following options:
Operation of additional equipment
●
▼
▼
▼
▼
❚❚
Video menu
DR archive
Connections
Settings
Recording
Timer
Video mode
You can operate Loewe video recorders and DVD
players with the video control bars even if they
are hidden. The VCR's must be connected to the
Euro AV sockets (Scart) and logged in under the
"Connections" menu.
Digital Link must be switched on on the Loewe
video recorder. Only then can you use the control
bar. You also need Digital Link for timer
recordings of satellite programs controlled by the
TV set.
You can display up to three menu bars, these are
displayed when the appropriate video units are
logged in the "Connections" › "Connections:
Connection plan" menu.
Show/hide video menu bar:
Select video menu bar, if for
example several VCRs or a DVD
player and a VCR are connected.
Select function
Switch VCR/DVD on/off
Select video input (Euro-AV
socket) for the VCR
Rewind (only for VCR) or Scan in
rewind
Stop (STOP)
Playback (PLAY)
■
▼
STOP
▼
▼
▼
▼
▼
❚❚
■
AUX
VCR STOP
▼
▼
▼
▼
▼
●
❚❚
■
Menu
Info
End
DVD
▼
▼
OK
INFO
MENU
END
AUX
▼
▼
You can change and delete timer data or
program new recordings in the "Timer" menu.
The "Record" menu gives you the option for
timer programming by EPG, teletext or
manually.
You can call the archive list with "DR Archive"
if a Digital Recorder is built in.
In the "Connections" menu you can log other
AV equipment on or off. In the "Digital Link
Plus transfer" menu the station data of the TV
set (not satellite stations) are transmitted to
the Digital Link Plus VCR.
Digital Link Plus VCRs have the possibility for
transferring the station data from the TV set to
the VCR via the Euro-AV cable (not for satellite
stations). Every time you change the station
memory of the TV, you are asked whether you
want to make a data transfer.
The receiver unit of the VCR is always used for
recording with a Digital Link Plus video
recorder (not satellite stations) and the tuner of
the TV set is available for watching TV.
Loewe VCRs also have Digital Link, a system
for controlling Loewe VCRs via the Euro-AV
cable. If the Loewe VCR only has Digital Link,
the TV tuner is used for recording. If you have
installed your Loewe VCR in a concealed place,
you can operate the Loewe VCR with the
remote control. Operation with the control bar
also works with Digital Link.
Digital Link must be switched on on the
video recorder.
Only use fully wired Euro-AV cables, otherwise
Digital Link or Digital Link Plus will not work.
OK
OK
OK
31936_021_Spheros42HDR+_GB 18.10.2004, 10:18 Uhr19
