Calling an AV program in the AV selection list
Call AV selection list
Select AV connection (e.g. socket
AV1) or VIDEO for the VCR
station.
Now you will see the playback from the
connected AV unit.

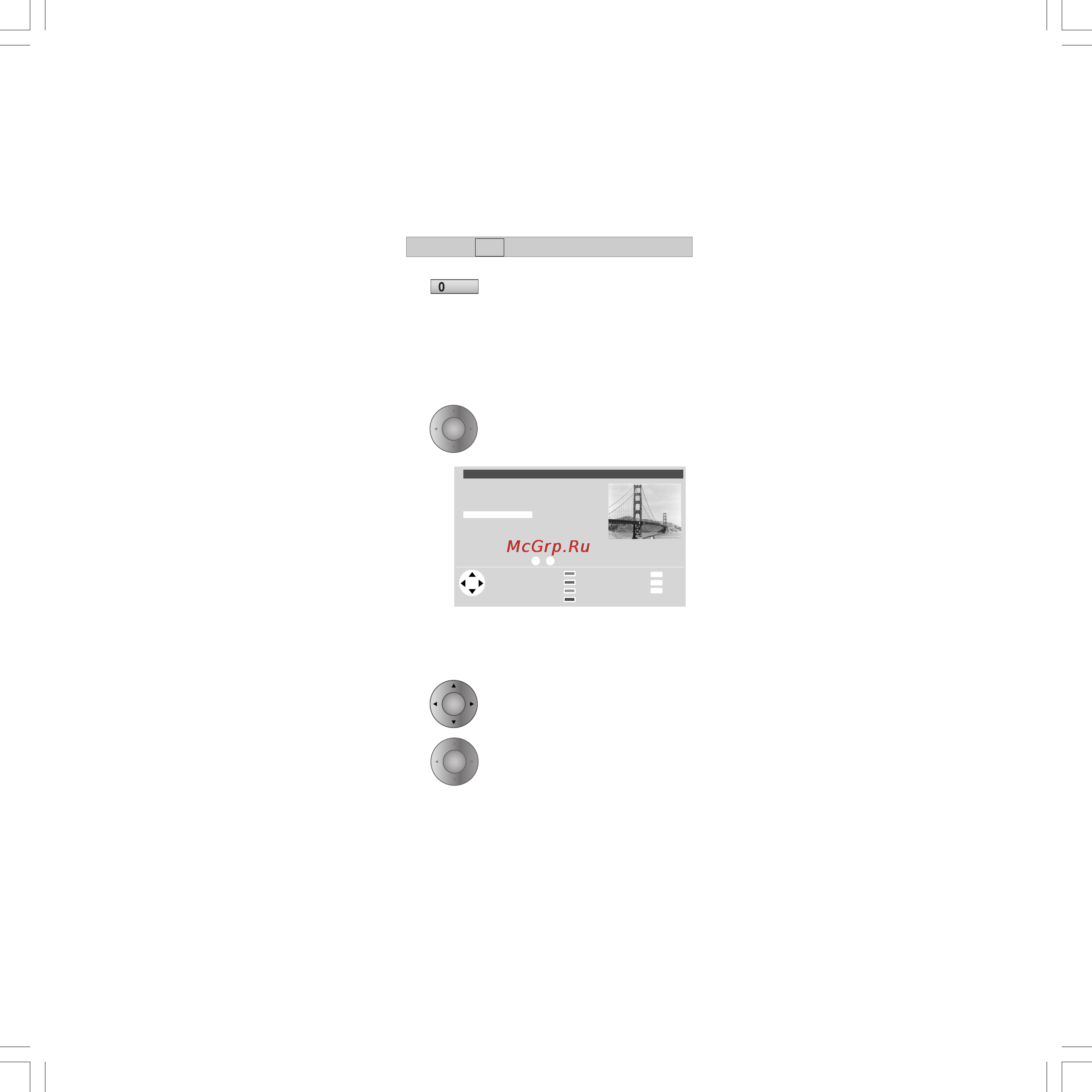

Calling an AV in the station table
Call the station table
In the numeric sorting you will always find the AV
devices at the top of the list without station
numbers.
Select the AV connection and...
confirm with OK.
Now you will see the playback from the
connected AV unit.

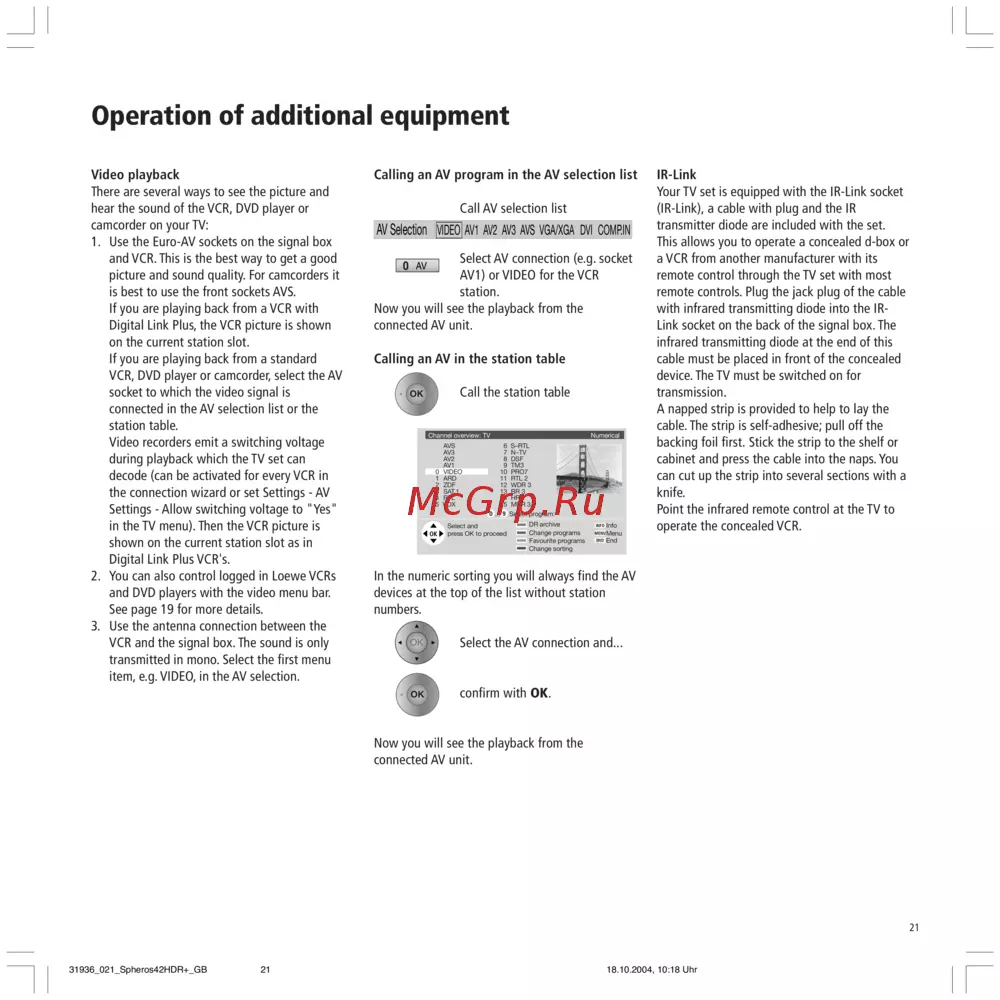

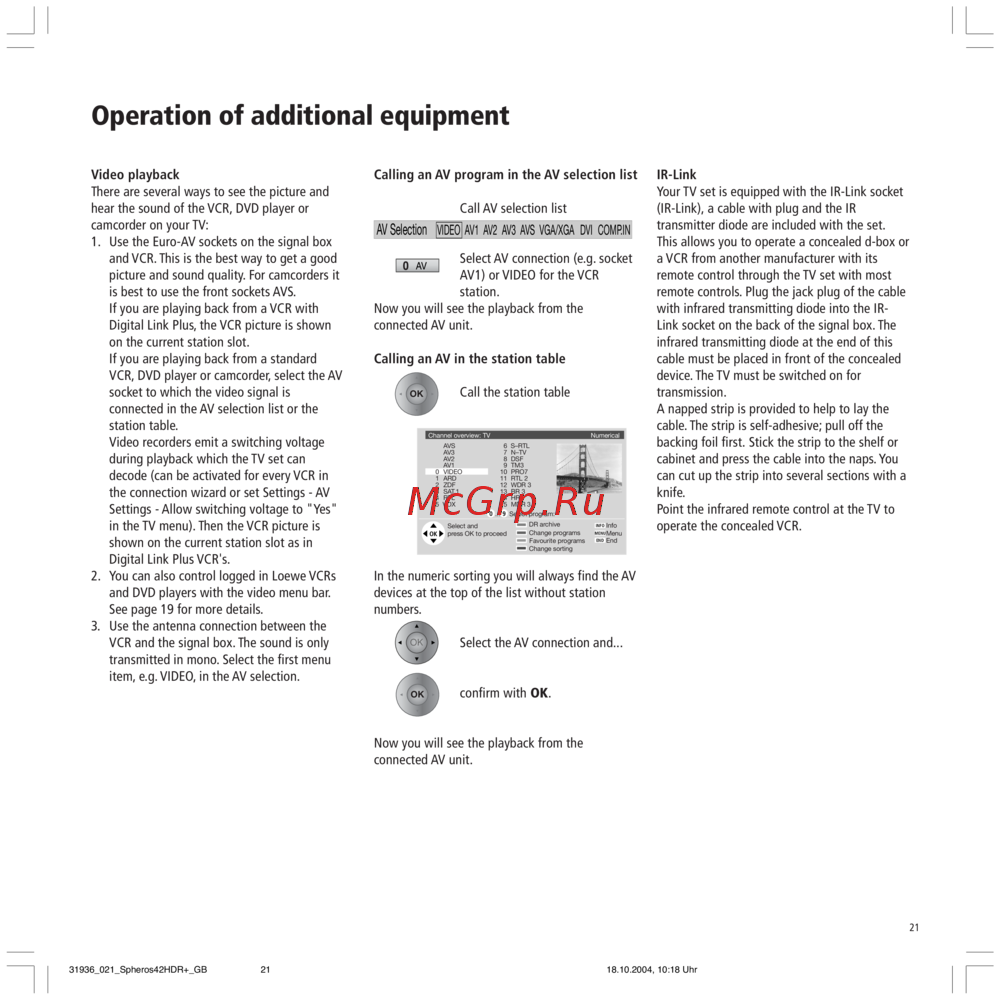

Operation of additional equipment
Video playback
There are several ways to see the picture and
hear the sound of the VCR, DVD player or
camcorder on your TV:
1. Use the Euro-AV sockets on the signal box
and VCR. This is the best way to get a good
picture and sound quality. For camcorders it
is best to use the front sockets AVS.
If you are playing back from a VCR with
Digital Link Plus, the VCR picture is shown
on the current station slot.
If you are playing back from a standard
VCR, DVD player or camcorder, select the AV
socket to which the video signal is
connected in the AV selection list or the
station table.
Video recorders emit a switching voltage
during playback which the TV set can
decode (can be activated for every VCR in
the connection wizard or set Settings - AV
Settings - Allow switching voltage to "Yes"
in the TV menu). Then the VCR picture is
shown on the current station slot as in
Digital Link Plus VCR's.
2. You can also control logged in Loewe VCRs
and DVD players with the video menu bar.
See page 19 for more details.
3. Use the antenna connection between the
VCR and the signal box. The sound is only
transmitted in mono. Select the first menu
item, e.g. VIDEO, in the AV selection.
Channel overview: TV Numerical
AVS
AV3
AV2
AV1
0 VIDEO
1 ARD
2 ZDF
3 SAT.1
4 RTL
5 VOX
6 S–RTL
7 N–TV
8 DSF
9 TM3
10 PRO7
11 RTL 2
12 WDR 3
13 BR 3
14 HR
15 MDR 3
0 9
Select and
press OK to proceed
Menu
Info
End
Change sorting
Change programs
DR archive
Favourite programs
... Select program:
OK
INFO
MENU
END
AV
VIDEO AV1 AV2 AV3 AVS VGA/XGA DVI COMP.IN
AV Selection
IR-Link
Your TV set is equipped with the IR-Link socket
(IR-Link), a cable with plug and the IR
transmitter diode are included with the set.
This allows you to operate a concealed d-box or
a VCR from another manufacturer with its
remote control through the TV set with most
remote controls. Plug the jack plug of the cable
with infrared transmitting diode into the IR-
Link socket on the back of the signal box. The
infrared transmitting diode at the end of this
cable must be placed in front of the concealed
device. The TV must be switched on for
transmission.
A napped strip is provided to help to lay the
cable. The strip is self-adhesive; pull off the
backing foil first. Stick the strip to the shelf or
cabinet and press the cable into the naps. You
can cut up the strip into several sections with a
knife.
Point the infrared remote control at the TV to
operate the concealed VCR.
OK
OK
OK
