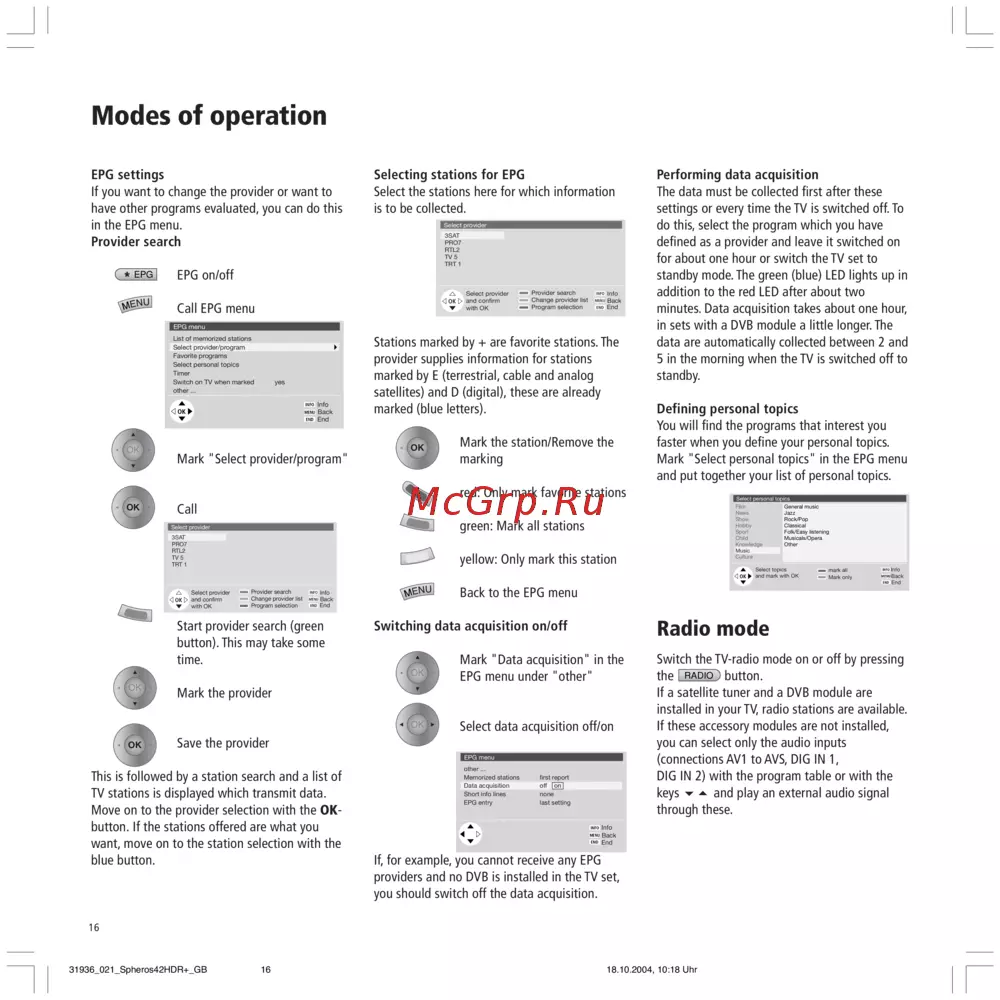

16
Performing data acquisition
The data must be collected first after these
settings or every time the TV is switched off. To
do this, select the program which you have
defined as a provider and leave it switched on
for about one hour or switch the TV set to
standby mode. The green (blue) LED lights up in
addition to the red LED after about two
minutes. Data acquisition takes about one hour,
in sets with a DVB module a little longer. The
data are automatically collected between 2 and
5 in the morning when the TV is switched off to
standby.
Defining personal topics
You will find the programs that interest you
faster when you define your personal topics.
Mark "Select personal topics" in the EPG menu
and put together your list of personal topics.
Radio mode
Switch the TV-radio mode on or off by pressing
the
RADIO
button.
If a satellite tuner and a DVB module are
installed in your TV, radio stations are available.
If these accessory modules are not installed,
you can select only the audio inputs
(connections AV1 to AVS, DIG IN 1,
DIG IN 2) with the program table or with the
keys and play an external audio signal
through these.
Selecting stations for EPG
Select the stations here for which information
is to be collected.
Stations marked by + are favorite stations. The
provider supplies information for stations
marked by E (terrestrial, cable and analog
satellites) and D (digital), these are already
marked (blue letters).
Mark the station/Remove the
marking
red: Only mark favorite stations
green: Mark all stations
yellow: Only mark this station
Back to the EPG menu
Switching data acquisition on/off
Mark "Data acquisition" in the
EPG menu under "other"
Select data acquisition off/on
If, for example, you cannot receive any EPG
providers and no DVB is installed in the TV set,
you should switch off the data acquisition.
EPG settings
If you want to change the provider or want to
have other programs evaluated, you can do this
in the EPG menu.
Provider search
EPG on/off
Call EPG menu
Mark "Select provider/program"
Call
Start provider search (green
button). This may take some
time.
Mark the provider
Save the provider
This is followed by a station search and a list of
TV stations is displayed which transmit data.
Move on to the provider selection with the OK-
button. If the stations offered are what you
want, move on to the station selection with the
blue button.
Modes of operation
Select provider
Info
3SAT
PRO7
RTL2
TV 5
TRT 1
Select provider
and confirm
with OK
Back
End
Provider search
Change provider list
Program selection
OK
INFO
MENU
END
Select provider
Info
3SAT
PRO7
RTL2
TV 5
TRT 1
Select provider
and confirm
with OK
Back
End
Provider search
Change provider list
Program selection
OK
INFO
MENU
END
EPG menu
other ...
Memorized stations first report
Data acquisition off on
Short info lines none
EPG entry last setting
Info
Back
End
INFO
MENU
END
Select personal topics
Info
Select topics
and mark with OK
Back
End
Film
News
Show
Hobby
Sport
Child
Knowledge
Music
Culture
General music
Jazz
Rock/Pop
Classical
Folk/Easy listening
Musicals/Opera
Other
mark all
Mark only
OK
INFO
MENU
END
EPG
EPG menu
List of memorized stations
Select provider/program
Favorite programs
Select personal topics
Timer
Switch on TV when marked yes
other ...
Info
Back
End
OK
INFO
MENU
END
OK
OK
OK
OK
OK
OK
OK
31936_021_Spheros42HDR+_GB 18.10.2004, 10:18 Uhr16
