KVM over IP Switch User Manual

106

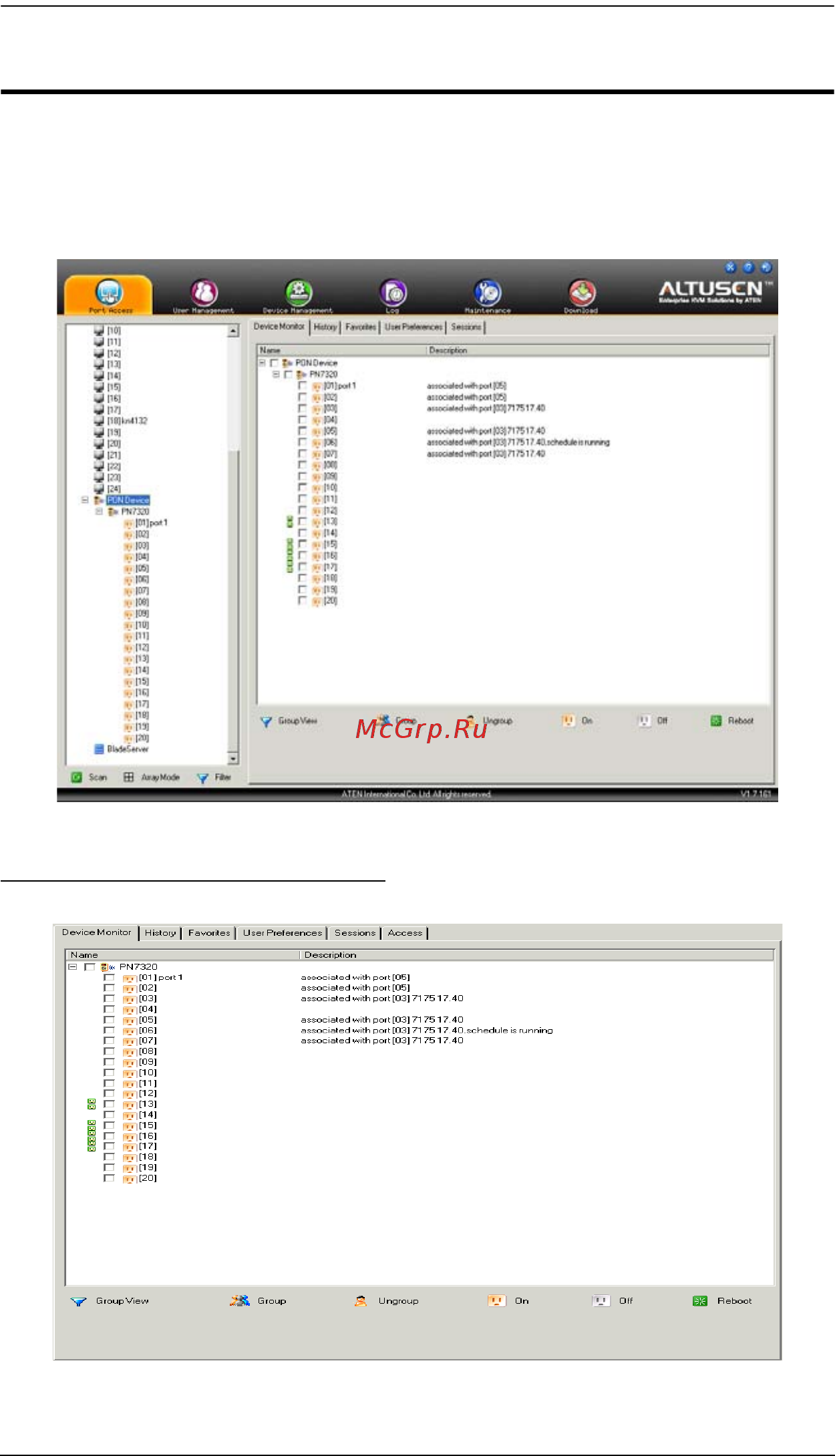

PON Devices – Device Monitor Page

Power Over the Net™ (PON) devices that are connected to the switches

display below the KVM switches in the Sidebar. When a PON device is

selected in the Sidebar, the Device Monitor page appears:

The Main Panel – PON View
