Aten KN8164V [127/307] The main panel group view

Chapter 6. Port Access

109

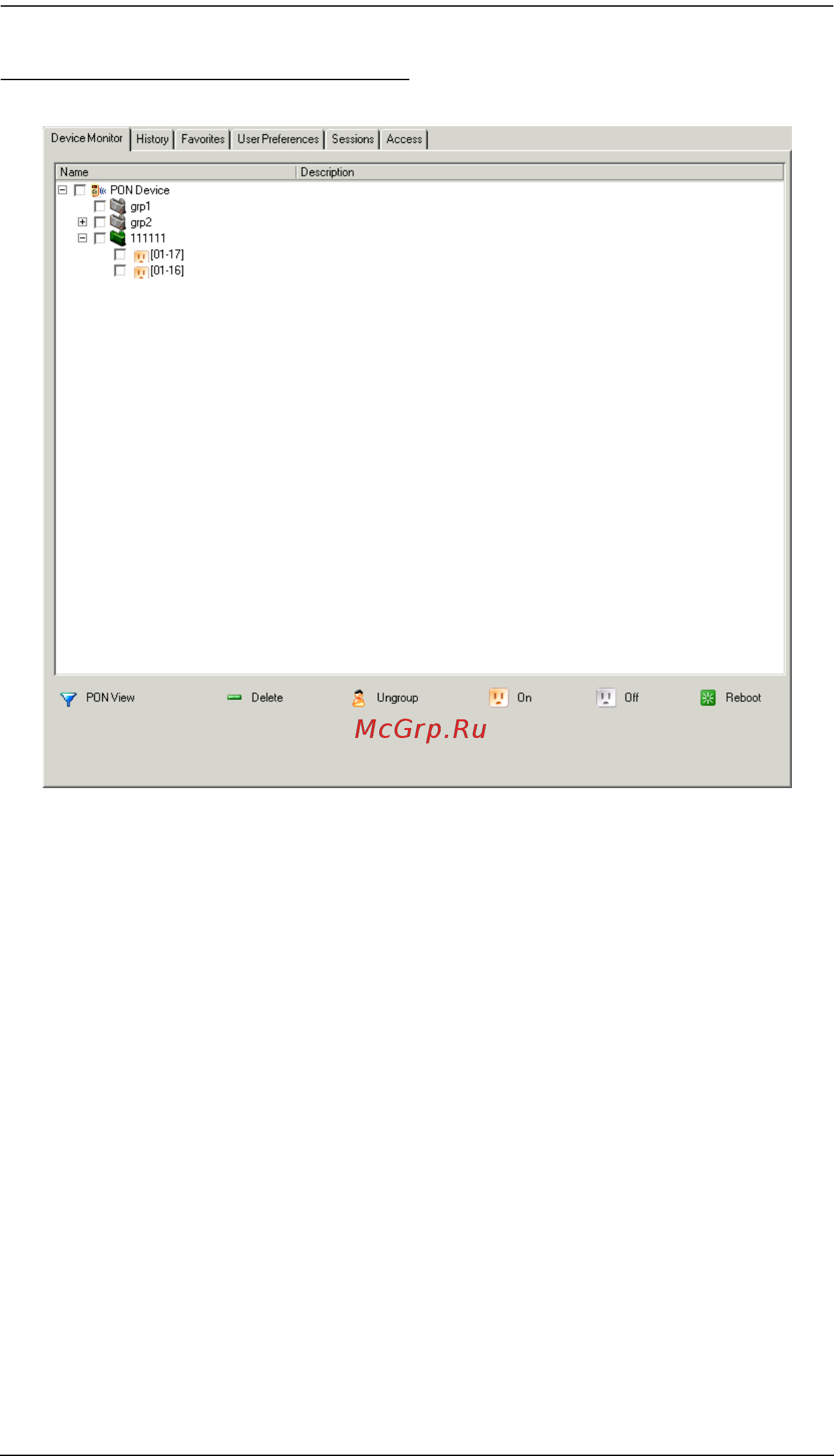

The Main Panel – Group View

 Clicking the PON View button takes you back to the PON View page.

 To delete a group, select it in the main panel, then click Delete.

 Selecting a group in the main panel, then clicking Ungroup, removes all

outlets from that group. It provides a shortcut method to remove all of

them at once, rather than having to remove then one by one from the PON

View page.

 To power manage a group of outlets, first select the group(s) in the main

panel, then click the appropriate power button.
