Aten KN8164V [173/307] Device management

155

Chapter 8

Device Management

KVM Devices

Device Information

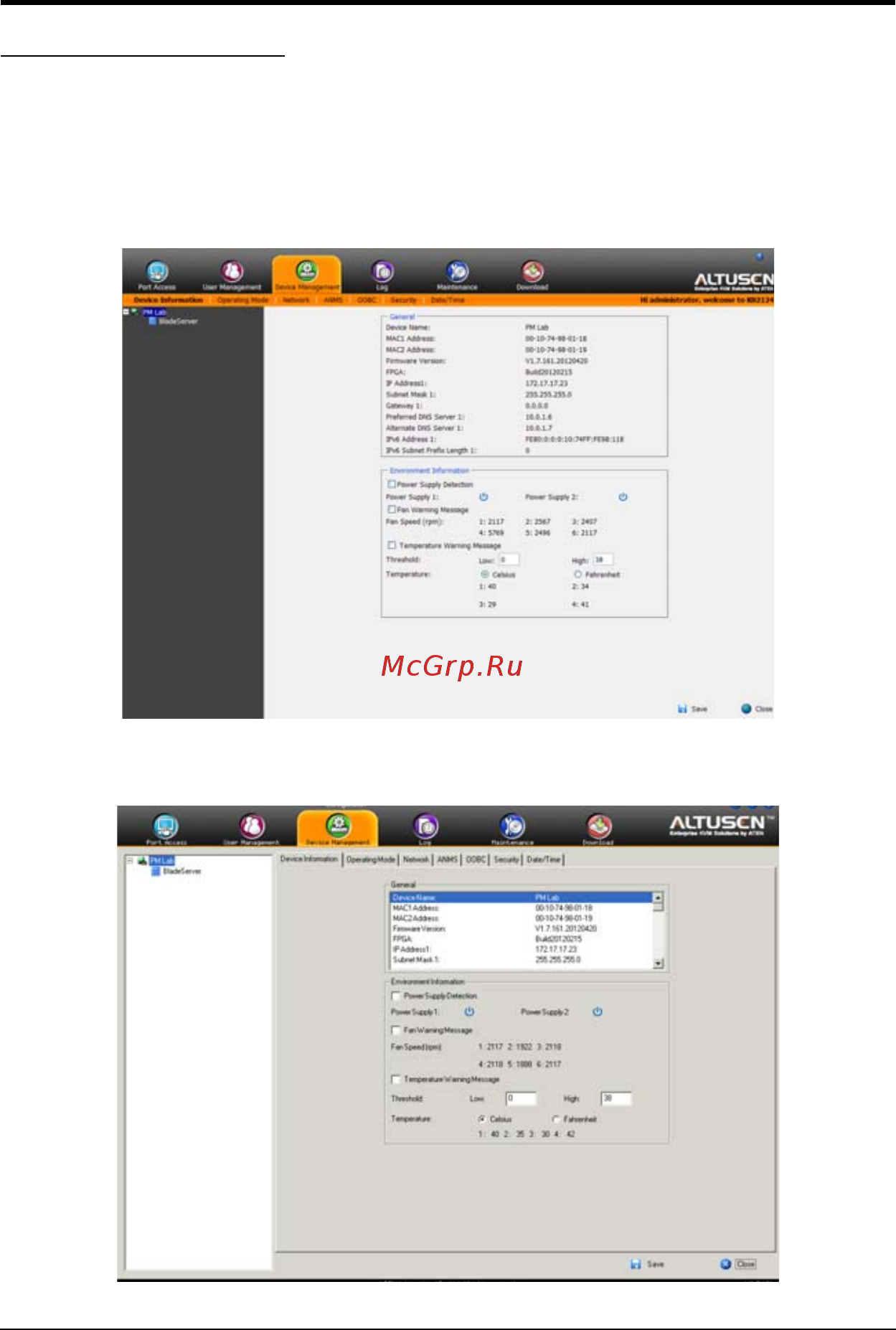

The Device Management page opens with the top level KVM over IP switch

selected in the Sidebar and the Device Information item selected on the menu

bar:

Browser GUI

AP GUI
