Aten KN8164V [146/307] Port configuration

KVM over IP Switch User Manual

128

Port Configuration

Device Level

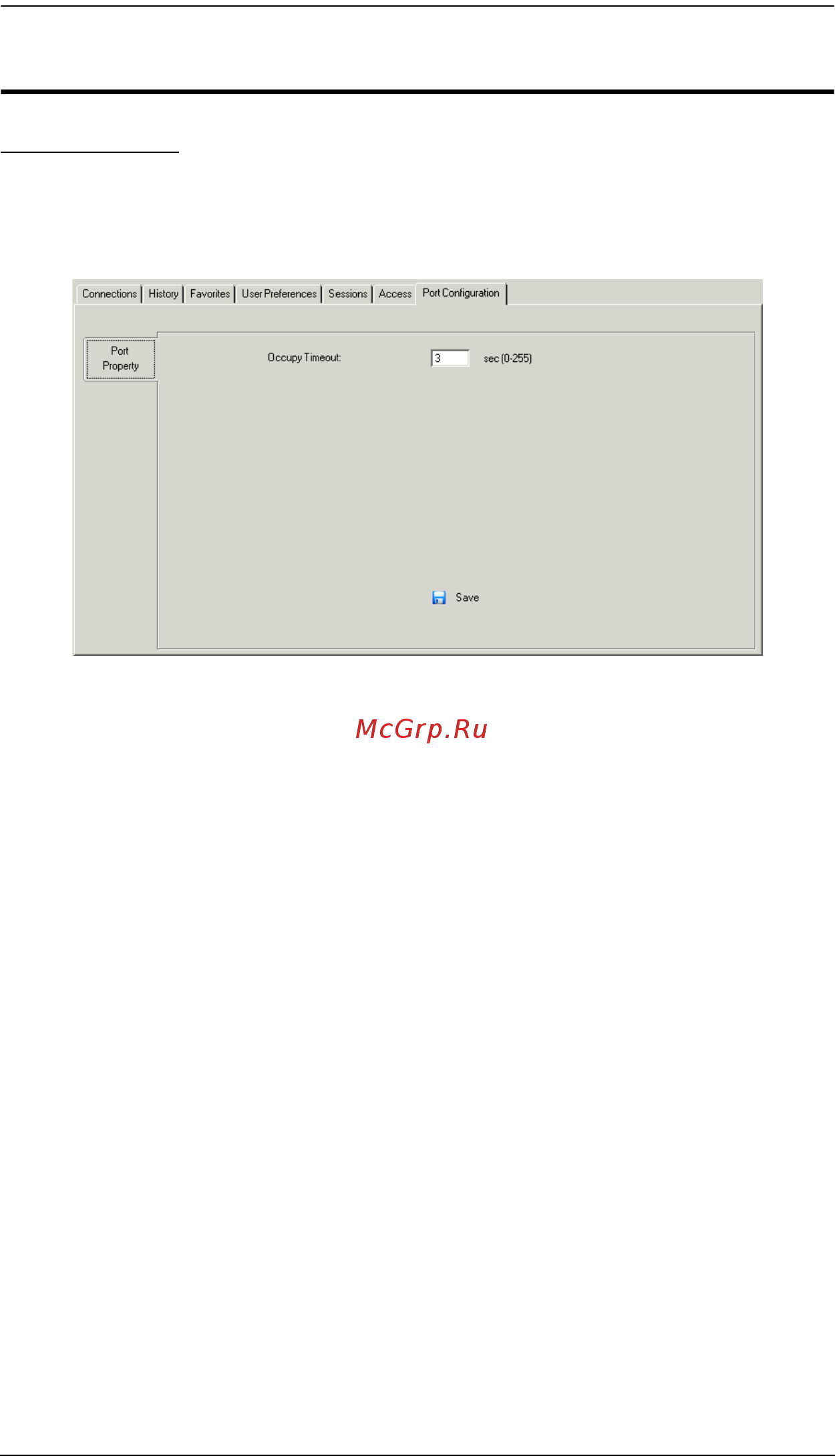

When a device is selected in the Sidebar, the only item available under Port

Configuration is the Port Properties page with one field to configure: the

Occupy Timeout setting:

The Occupy Timeout field sets a time threshold for users on ports whose

Access Mode has been set to Occupy (see Access Mode, page 130). If there is

no activity from the user occupying the port for the amount of time set here, the

user is timed out and the port is released. The first user to send keyboard or

mouse input after the port has been released gets to occupy the port.

Input a value from 0 to 255 seconds. The default is 3 seconds. A setting of 0

causes the port to be released the instant there is no input.
