Chapter 11

Download

Overview

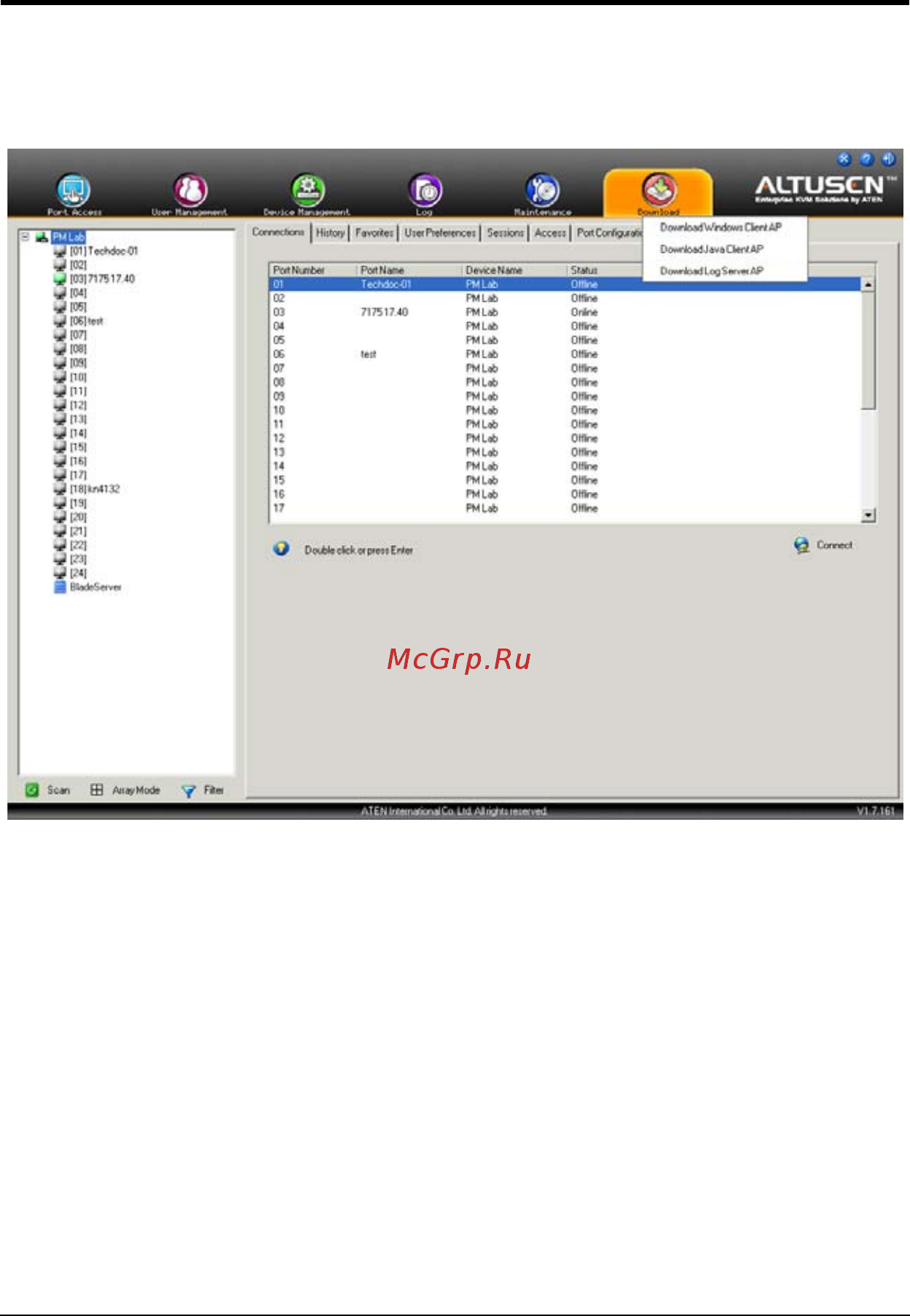

Download is used to download stand-alone AP versions of the Windows

Client, the Java Client, and the Log Server:

Click the program you want to download; save it to a convenient location on

your hard disk, and run it from there.
