Aten KN8164V [177/307] Network

Chapter 8. Device Management

159

Network

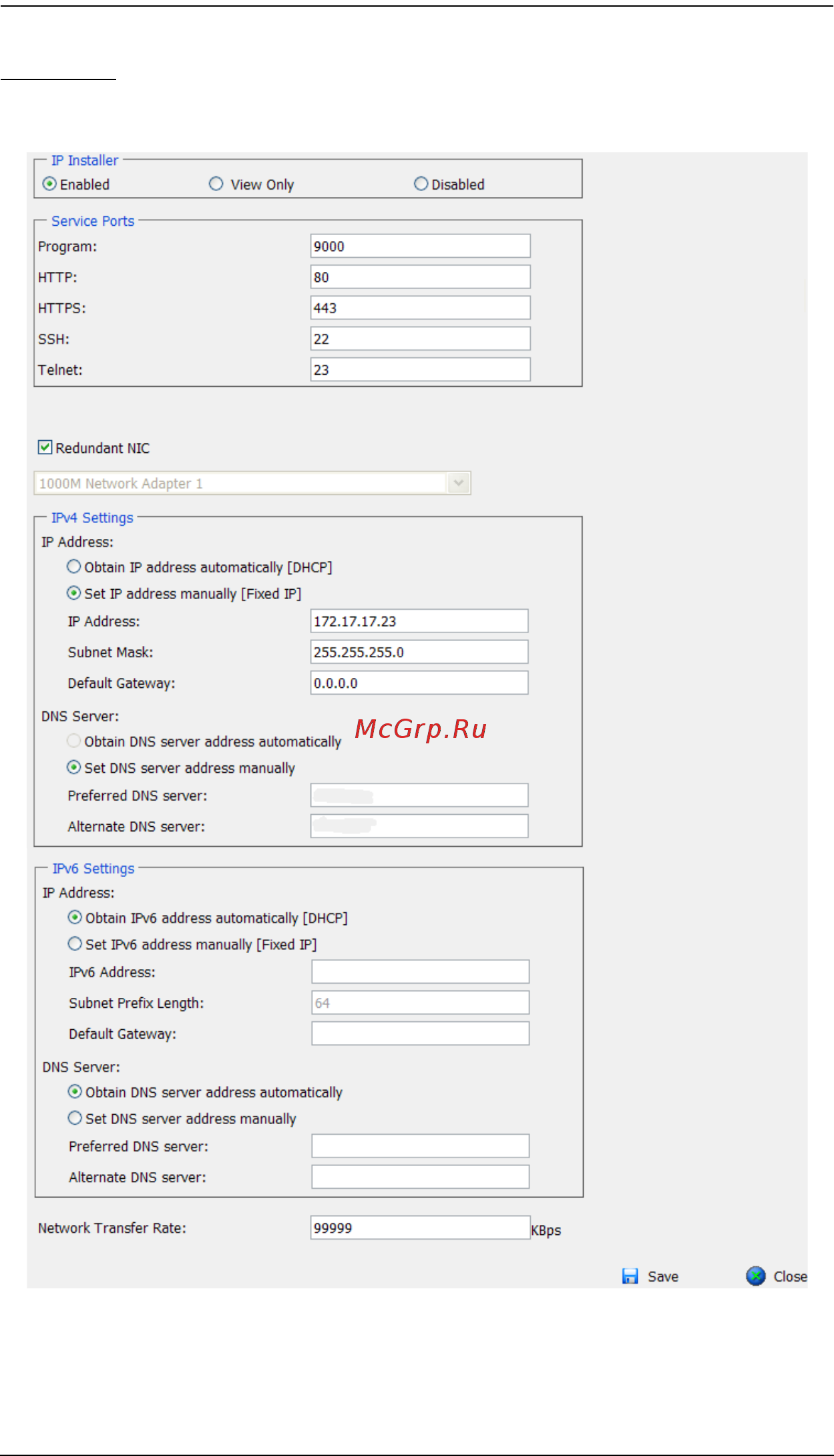

The Network page is used to specify the network environment.

Each of the elements on this page is described in the sections that follow.
